Amass  |  SKU: UC0132-M

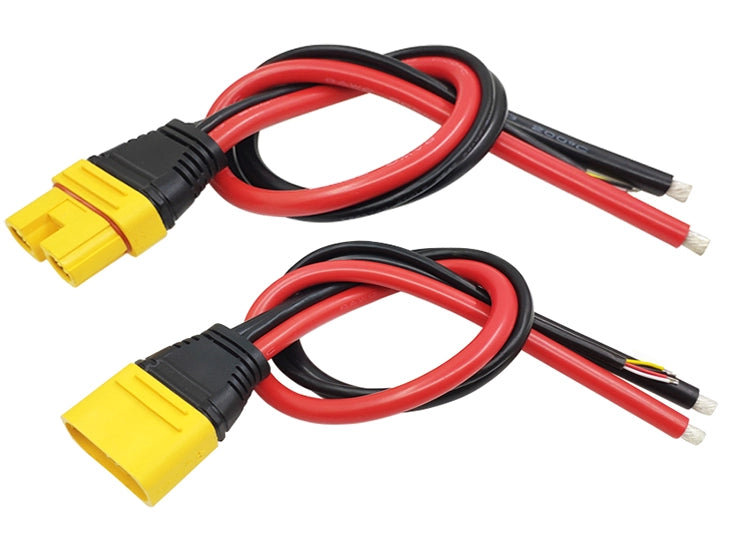

Amass AS150U Connector Anti Spark with Signal Pin with Short Silicone Wire Protective Cover (one pair)

$13.99

Version

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan
Excellent product

These are well-made and work as intended. There was an issue with the price being marked incorrectly when I ordered, but RC-Wing stepped up and honored the price which was a substantial loss to them. RC-Wing has proven to be a great company that cares about its customers.

AMASS AS150U Anti-fire with signal pin connector with silicone wire protction cover is specially designed for agriculture srpaying drones. It has the following advantages:
1. Anti-reverse insertion function, safe and reliable
2. Adaptable, anti-corrosion, anti-penetration
3. Anti-shedding design
4. High efficiency welding, eliminate welding

Specifications:
Product model: AS150U with short sillicone protective cover
Recommended Applications: Lithium Battery / Controller / Charger
Product color: black / yellow
Metal material: copper plated
Instantaneous current: 140A
Current Rating: 70A
Contact resistance: 0.40mΩ
Rated voltage: DC 500V
Flame retardant rating: UL94 V0
Recommended wire: 8AWG/28AWG
Insulation material: PA66
Operating temperature: -20ーC to 120ーC
Recommended usage: 1000 TIMES

Amass

Amass AS150U Connector Anti Spark with Signal Pin with Short Silicone Wire Protective Cover (one pair)

From $13.99
AMASS AS150U Anti-fire with signal pin connector with silicone wire protction cover is specially designed for agriculture srpaying drones. It has the following advantages:
1. Anti-reverse insertion function, safe and reliable
2. Adaptable, anti-corrosion, anti-penetration
3. Anti-shedding design
4. High efficiency welding, eliminate welding

Specifications:
Product model: AS150U with short sillicone protective cover
Recommended Applications: Lithium Battery / Controller / Charger
Product color: black / yellow
Metal material: copper plated
Instantaneous current: 140A
Current Rating: 70A
Contact resistance: 0.40mΩ
Rated voltage: DC 500V
Flame retardant rating: UL94 V0
Recommended wire: 8AWG/28AWG
Insulation material: PA66
Operating temperature: -20ーC to 120ーC
Recommended usage: 1000 TIMES

Version

  • Male
  • Female
  • One Pair
