ARRIS  |  SKU: BA0042

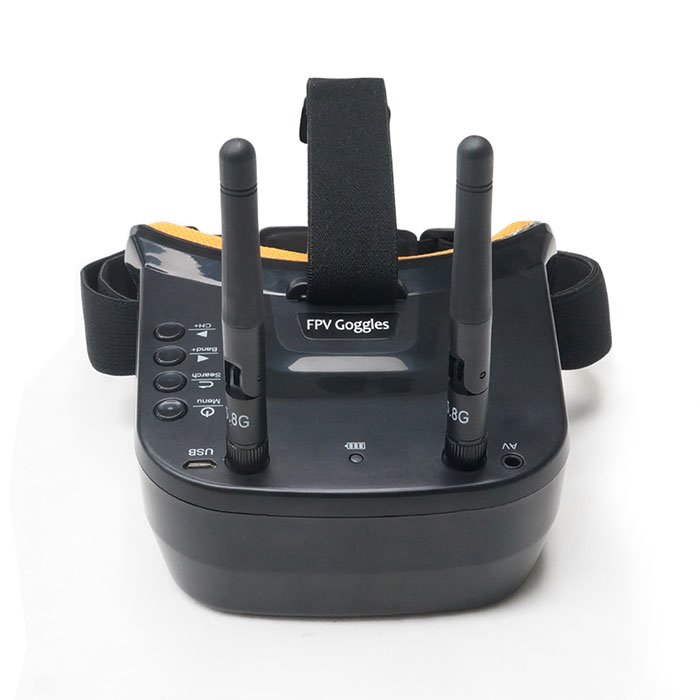

ARRIS VR-009 3 Inch 16:9 480 x 320 Display FPV Goggle with 5.8G 40CH Receiver

$44.99


Main Features:
● Small size and light weight;
● Low power consumption, Working current 360~400mA;

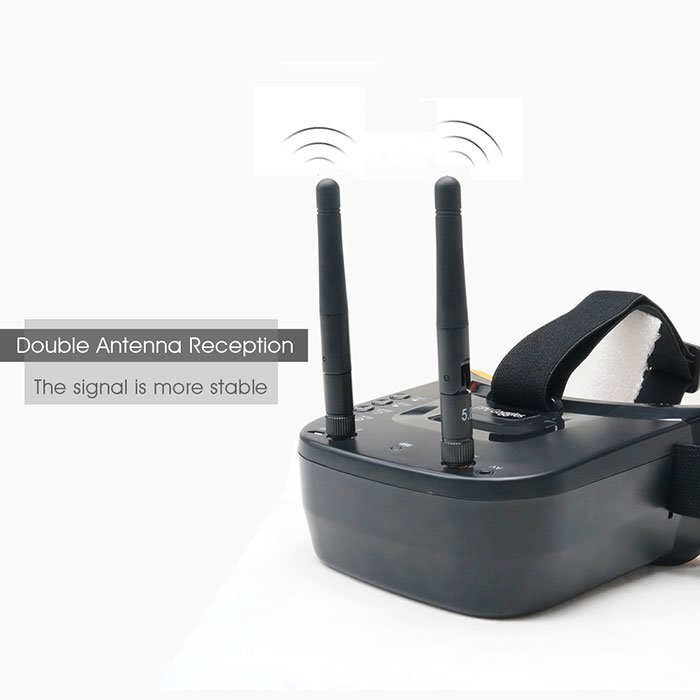

● Double antenna reception to make the signal more stable;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;

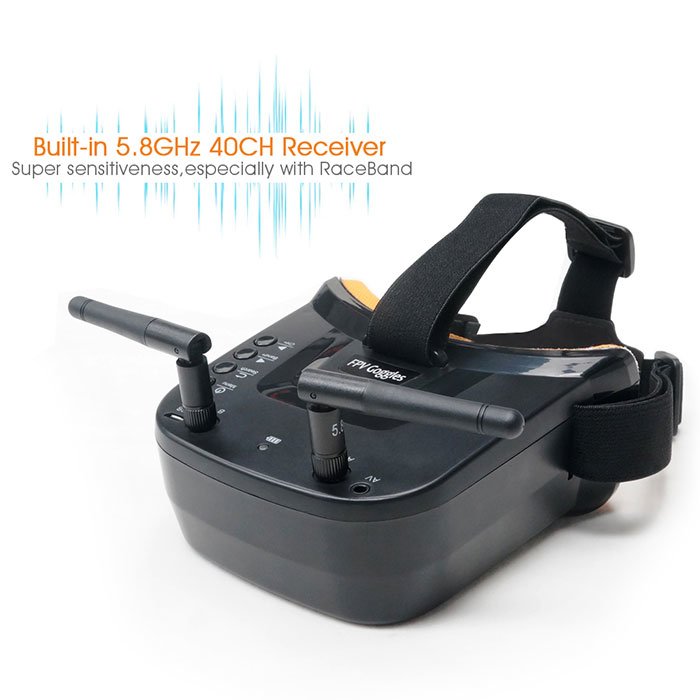

● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

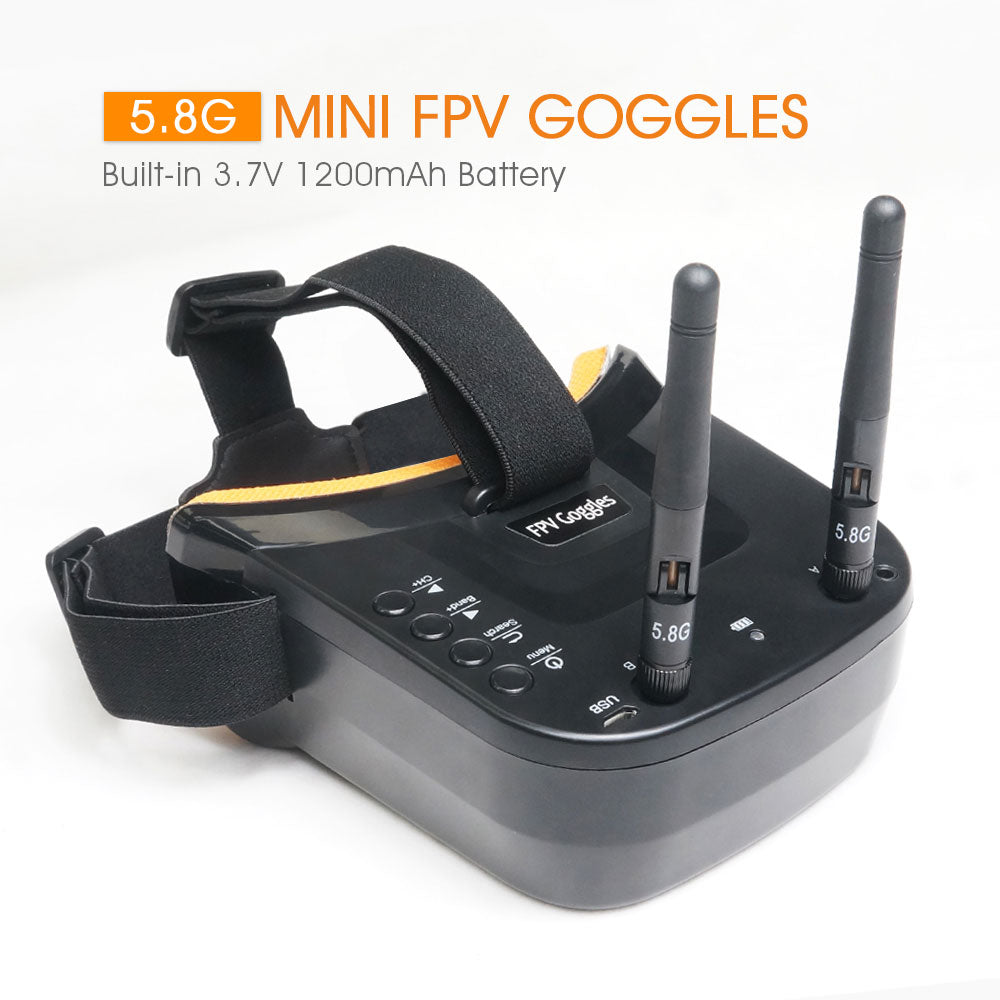

● Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Support external video signal input;
● Support AV signal output (Connect external DVR);

Specification:
Model
Name Mini FPV Goggles
LCD Screen Screen size: 3.0 Inch
Resolution: 480*320
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 350cd/m² with high brightness backlight LED
Video delay Video time-delay less than 20ms
Lens 4X Fresnel Lens, 92% transparent rate no distort of light
Interface Antenna 2 X RP-SMA male
USB To charge the battery
AV Jack External video signals input or internals AV signal output
Languages English and Chinese
Power Supply Power adapter: DC5V/1A (USB interface)
Battery:
3.7V/1200mAh,Each full charge revive around 2.5hr working time
Power Consumption:
*The device operating current of 360~400mA at 3.7~4.2V;
*Built-in battery maximum charge current of 500mA;
Wireless Frequency Table(MHz)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Body Dimension: 13.5cm * 13.2cm * 6.5cm
Weight: 183g(with headband, not included antennas)
