DMRacing NEZ-R 1:64 Rear-Wheel Professional RC Drift Car Chassis

NEZ-R User Guide

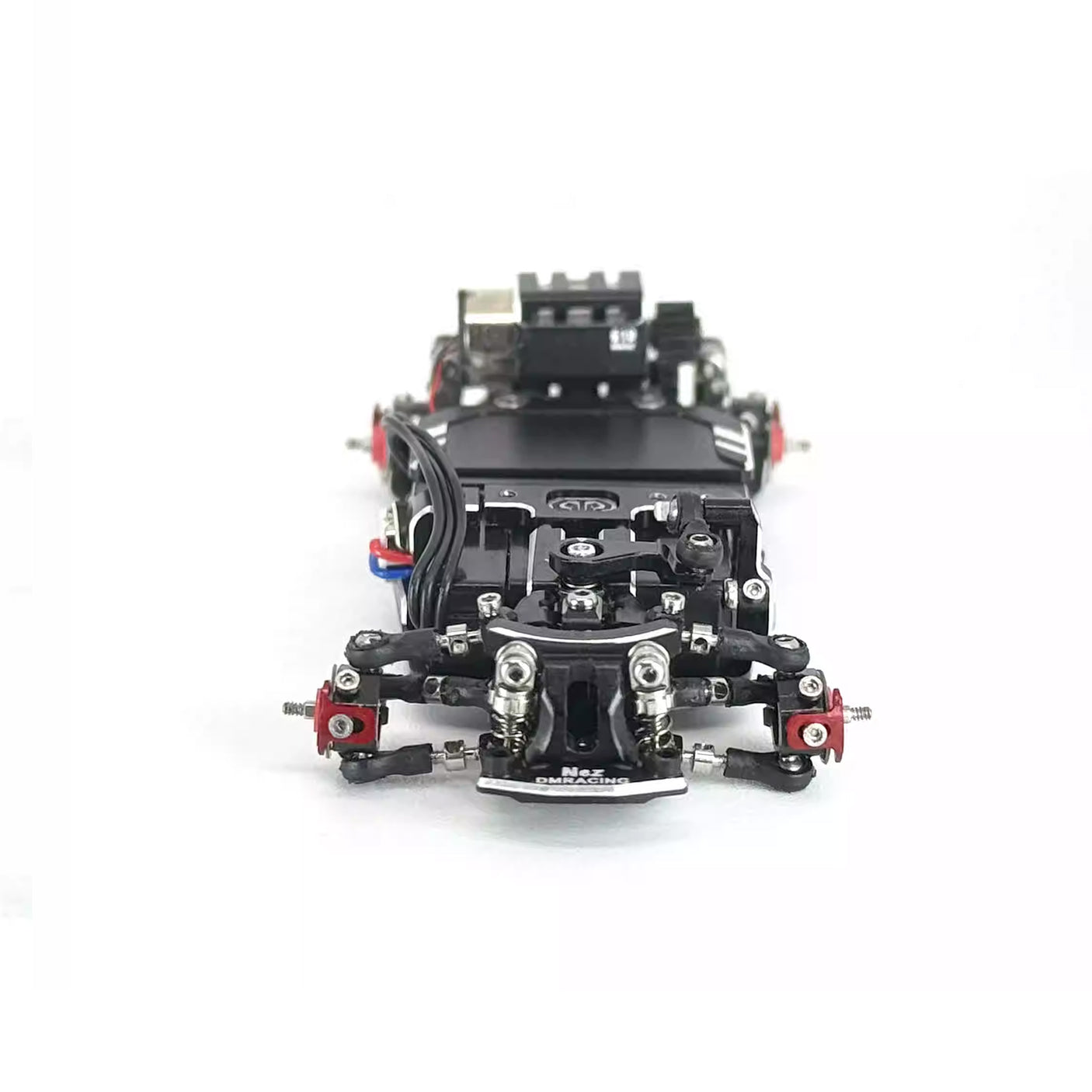

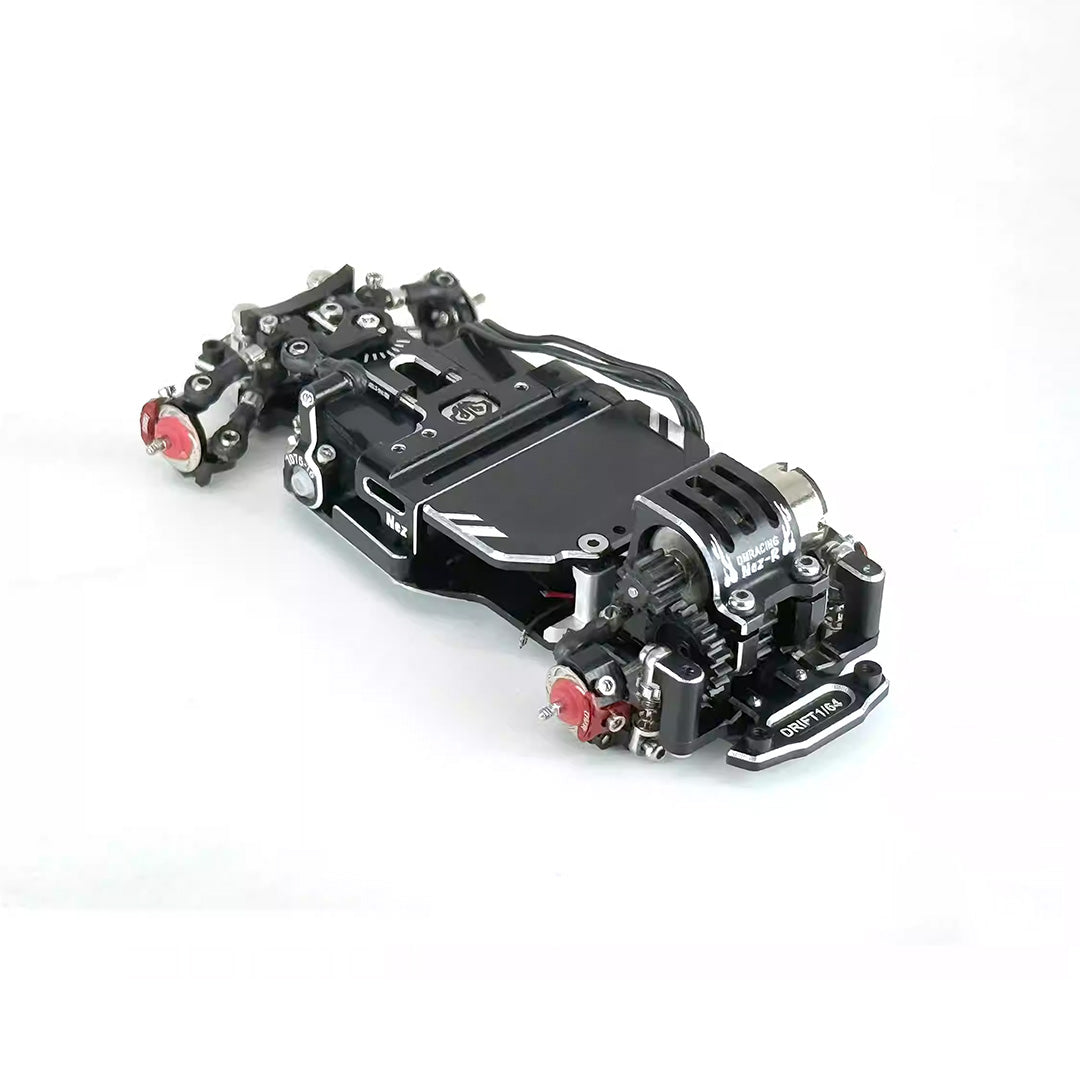

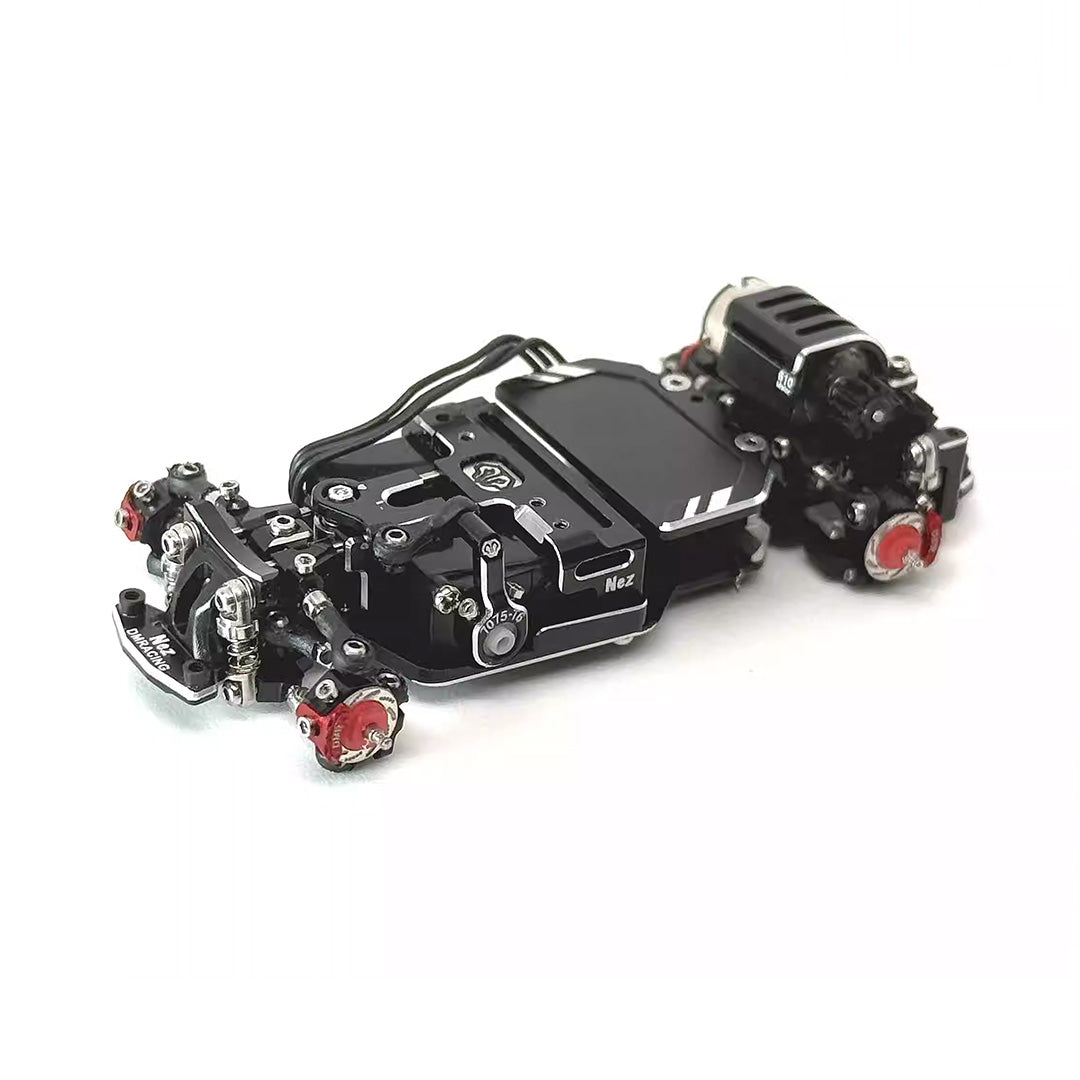

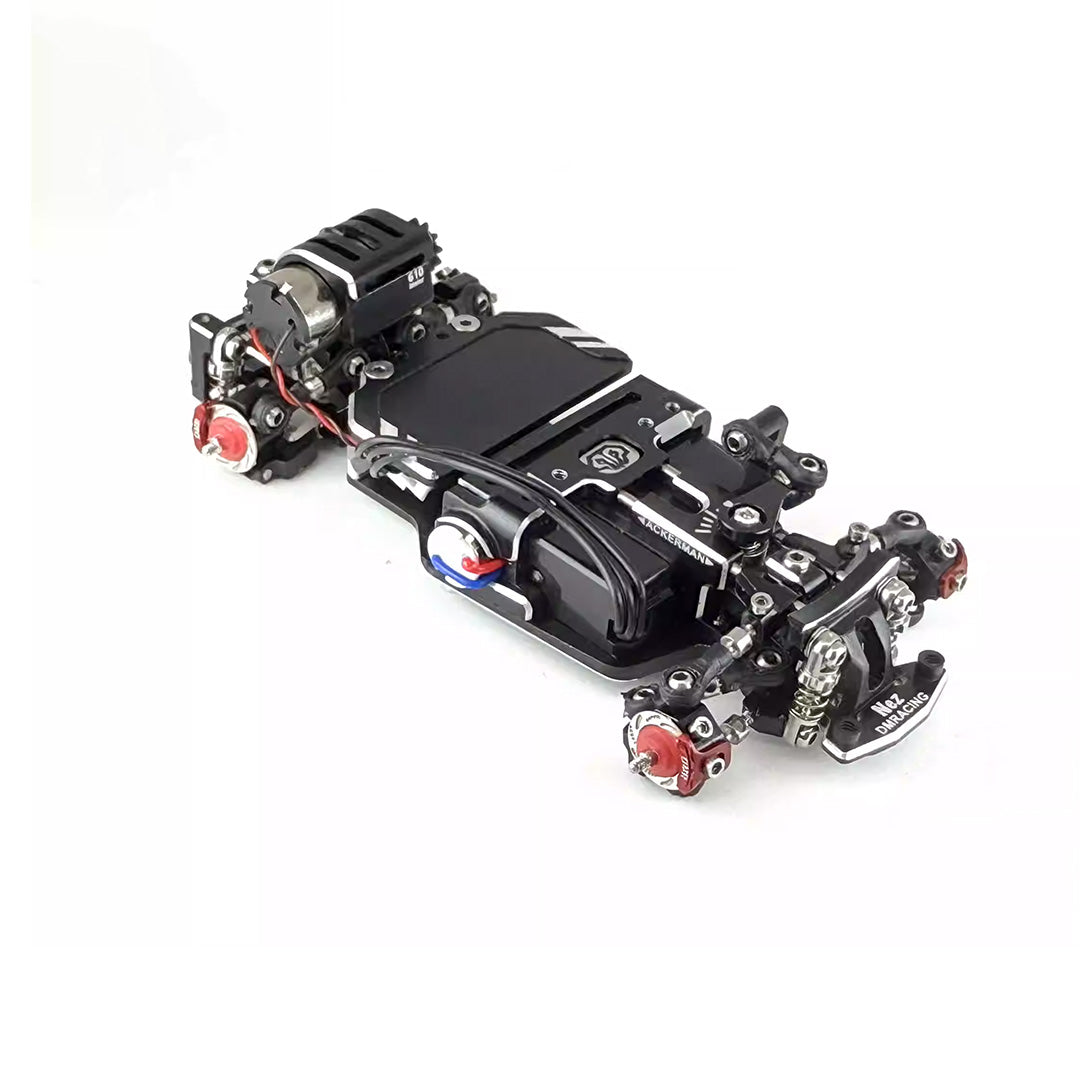

DMRacing NEZ-R car chassis plates are CNC-machined from 7075-T6 aerospace-grade aluminum. The surface finishing process includes sandblasting, anodizing, high-polish chamfering, and laser engraving, delivering both strength and premium aesthetics.

Compared with the first generation, NEZ-R achieves a dramatic performance upgrade. The front steering angle has been increased to an astonishing 90°, and the chassis is equipped with steering arms featuring a 10° forward inclination, optimized for R-angle and caster setup, resulting in a significantly more stable steering system. While retaining full adjustability of caster, toe, and Ackermann geometry from the previous generation, camber adjustability has been newly added. In addition, NEZ-R features adjustable-length rear lower arms, greatly expanding body shell compatibility.

Despite being equipped with a larger and heavier servo, the overall chassis weight is 0.5 g lighter than the first generation. The adjustable wheelbase range remains 36.5–45 mm, while the adjustable width range is 27.5–32 mm, allowing compatibility with the vast majority of 1/64-scale drift car bodies on the market.

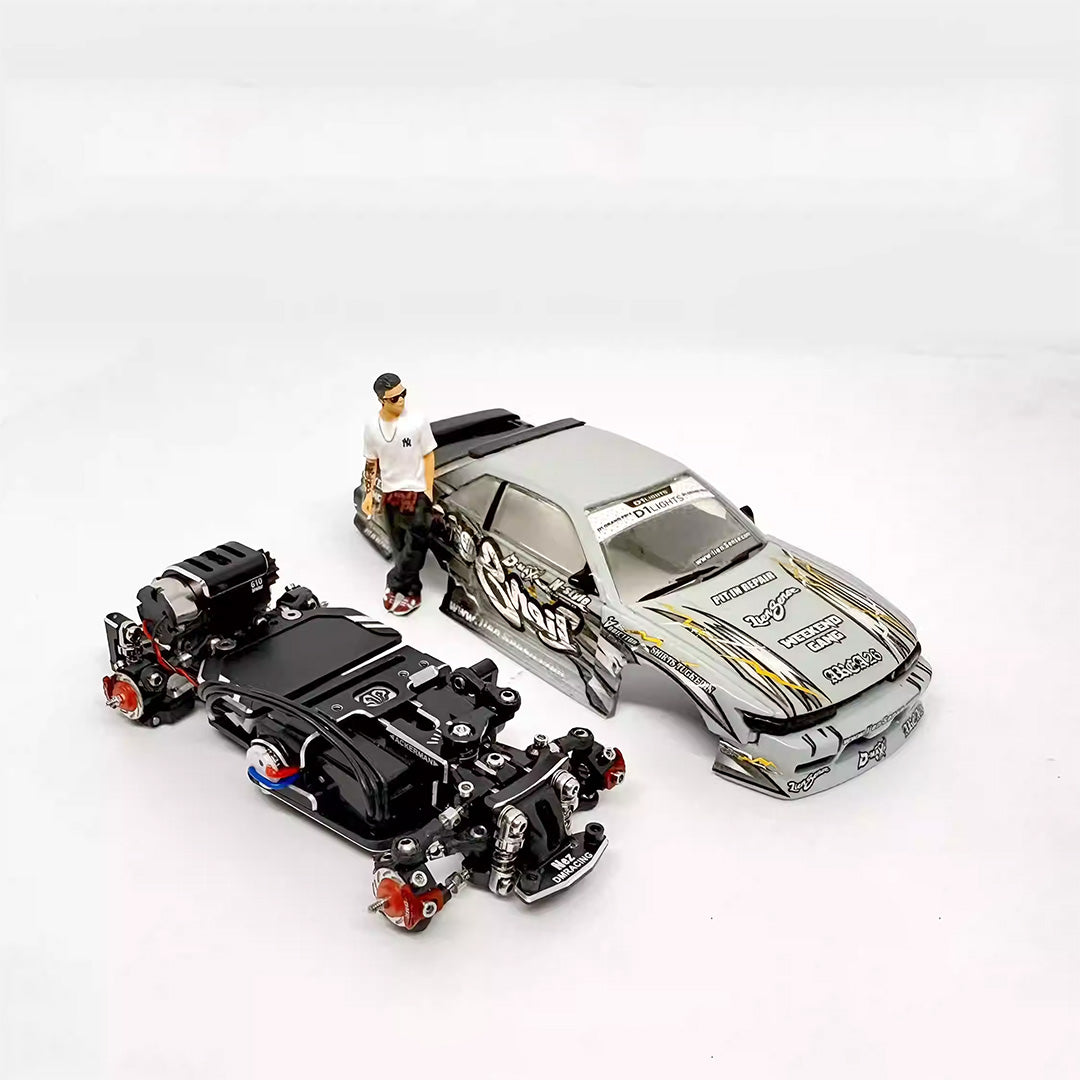

The figurines, body shell, and brake disc + caliper shown in the images are for display purposes only and are not included in the product.

Purchase Notice

Customer service may not be available at all times. Before placing an order, please carefully read the product description and all notes on this page. If you have any questions, please leave a message and wait for a reply from customer service.

Package Includes:

• Official pre-assembled chassis ×1

• Wheel hub installation tool ×1

• 0.7 mm hex screwdriver bit ×1

Complimentary Electronic Components (included as a bonus):

• Servo ×1

• 610 motor ×1

• Ultra-micro ESC ×1

• ZH1.5 connector cables ×2

Note: Complimentary electronic components are not covered by after-sales service and require self-soldering.

Items to Be Prepared by the User:

• Body shell

• Receiver + transmitter

• Battery

Recommended transmitters and gyro-integrated receivers: NB4, FUTABA, Sanwa.
For users with a limited budget, brands such as Xiao Fei Xiang or HOTRC transmitters with micro receivers may be used, paired with an independent “Mosquito” gyro.

Additional Purchase Required:

• NEZ new-generation dedicated wheels and drift tires
  (First-generation wheels are not compatible.)

Shipping Time:
Orders will be shipped in 7–20 days after purchase, in the order received. Any delays will be notified separately.

Chassis Adjustment Range:

• Wheelbase: approx. 36.5–45 mm

• Track width (outer edge to outer edge): approx. 27.5–32 mm

Within this range, the chassis is compatible with most 1/64-scale alloy model cars on the market. Specific body compatibility must be tested by the user. During fitting, body trimming may be required depending on the model. Please prepare tools such as a rotary tool or electric drill, and take proper safety precautions during operation to avoid injury.

The chassis is supplied in an official pre-assembled configuration. To ensure smooth part fitment, assembly technicians may occasionally sand or fine-tune certain joint areas during assembly. Please be aware of this before purchase.

RC drift car has a high level of difficulty, as chassis assembly, tuning, and maintenance require players to have a certain level of expertise. We sincerely recommend that players who are new to RC drifting start with 1:24 or 1:10 scale models to get a better beginner experience.

Recommended plan 1:
It is highly recommended to use the NB4 integrated gyro micro receiver and transmitter.
Since this receiver has a built-in gyro, it significantly saves chassis space and reduces the complexity of electronic layout. Additionally, the gyro's excellent performance meets the drifting requirements of 1:64 scale models.

Recommended Plan 2:
You can use a static-to-dynamic receiver (usually integrated with ESC and light control) with a V4, G5 or other gyroscope commonly used in mosquito cars. The Plan 2 greatly reduces the cost because it does not require the use of high-priced remote controls such as NB4, and a light group can be installed on the car body, but the receiving response speed may be slightly lower than the Plan 1.

Be careful with Plan 2 unless you are very familiar with RC model related electronic equipment and are sure that the vehicle model you choose has enough space inside to accommodate the electronic equipment.

Recommended Battery Size: 20x10x5mm.
Players can purchase larger or smaller batteries according to the wheelbase and width of the car shell. (The battery size can only be increased or decreased in length and width, but not in thickness, otherwise it will not fit in the battery compartment)
