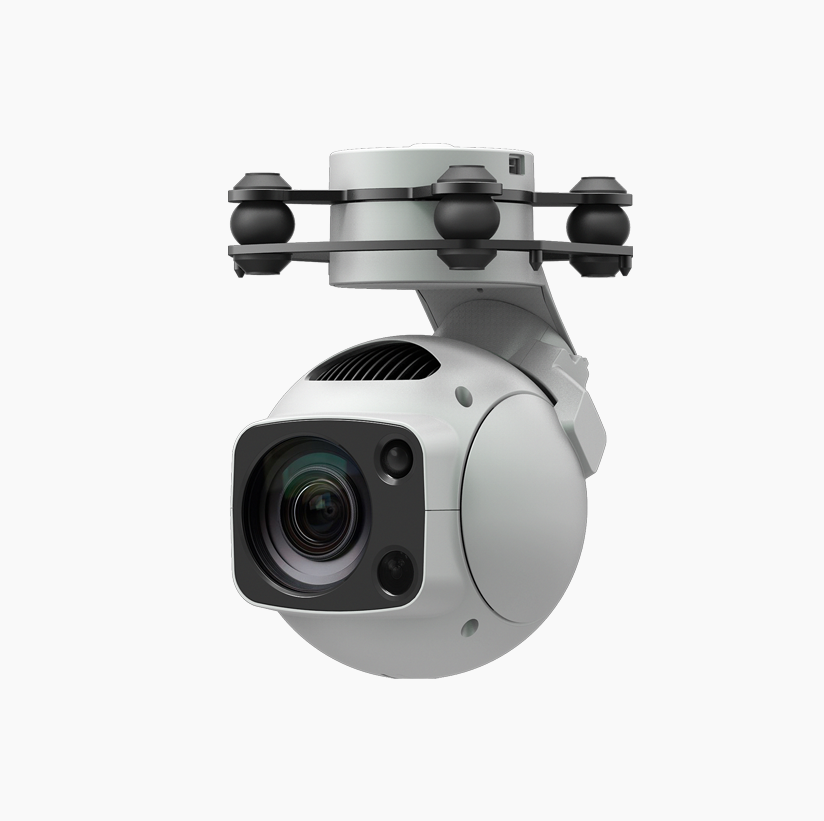

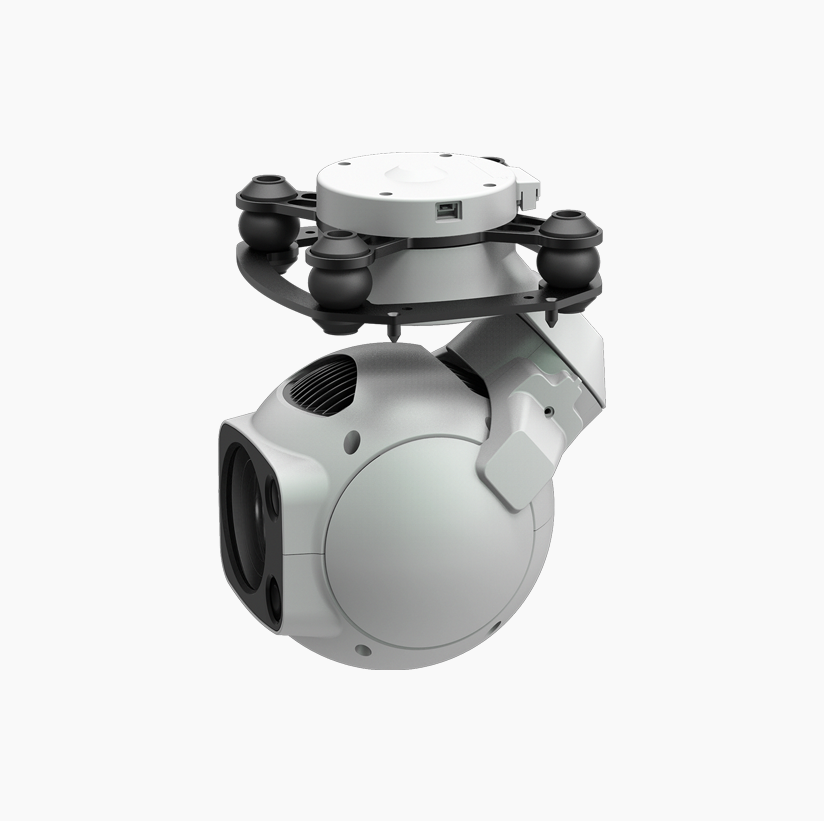

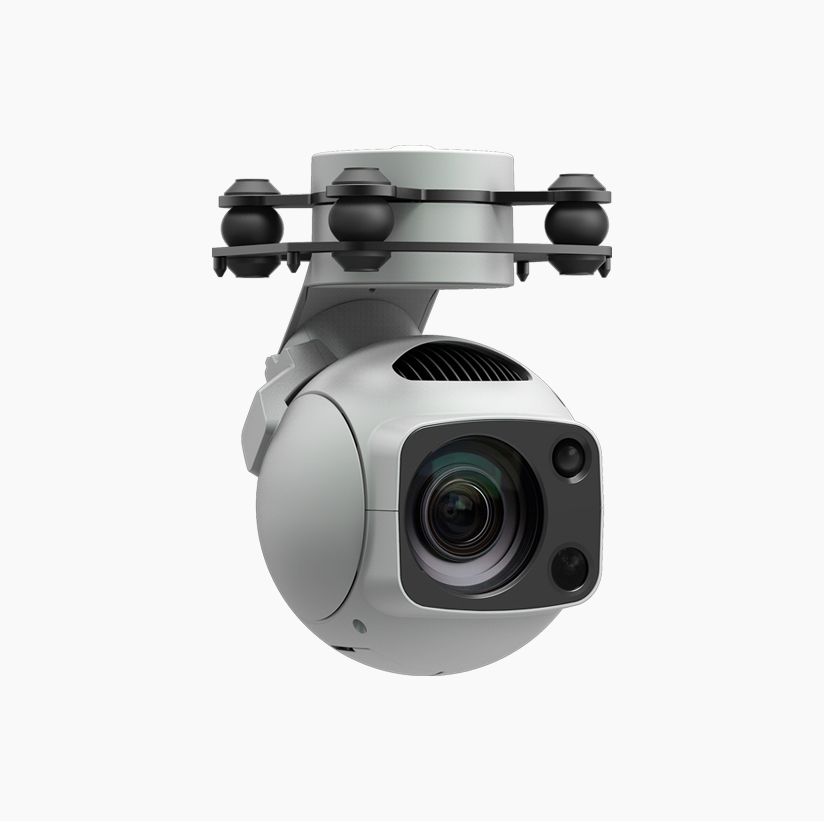

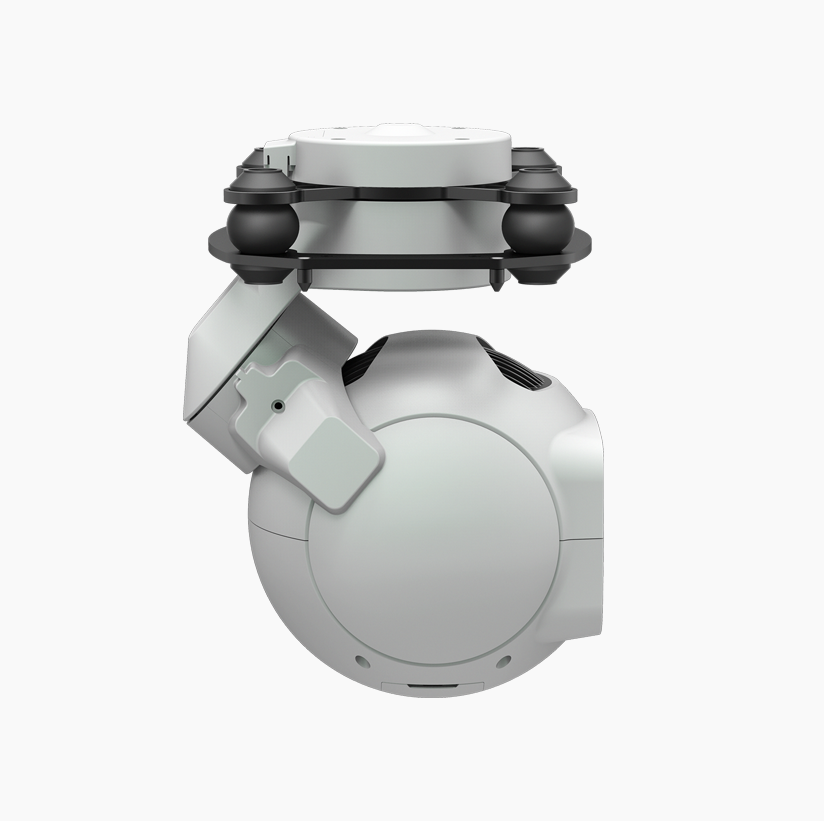

XF D-80AI 30x Zoom Camera Dual Field Of View 3 Axis Night Vision Camera Gimbal Target Tracking

The D-80AI gimbal is equipped with a high-precision three-axis non-orthogonal gimbal, featuring both a wide-angle and a 30x zoom camera. After identifying a target object in the wide-angle view, it can quickly switch to the zoomed-in view for detailed observation. The gimbal also includes a laser illumination module, ensuring clear imaging even in completely dark environments.

The D-80AI gimbal features AI-powered multi-target detection and tracking capabilities. It can intelligently identify pedestrians and vehicles within the captured footage and continuously track any selected target.

The D-80AI gimbal supports both upright and inverted installation and can be quickly installed without tools on various unmanned aerial vehicles or other carrier platforms. When paired with the Ground Control Unit (GCU) and Dragonfly control software, it can display real-time footage on a computer and enable control of the gimbal, supporting both photography and video recording.

Main Features:
● Equipped with AI-powered multi-target detection and tracking capabilities, capable of intelligently recognizing pedestrians and vehicles within the captured footage and continuously tracking any selected target.
● Consists of a combination of wide-angle and 30x zoom cameras, allowing for quick switching between global view and detailed imagery.
● The laser lighting module ensures clear imaging even in completely dark environments.
● Utilizes a compact spherical design and non-orthogonal three-axis mechanical stabilization structure, minimizing rotational radius and wind resistance. The yaw axis can rotate continuously without limitations.
● Compatible with GCU for network, serial port, and S.BUS control, supporting both proprietary and MAVlink protocols for easy secondary development.
● Implements dual IMU complementary algorithms, combined with IMU temperature control and carrier inertial navigation data fusion, achieving stabilization accuracy of up to +0.01°. The gimbal remains stable even during intense maneuvers of the carrier.
● Supports both upright and inverted installation, enabling quick installation on various carrier platforms.
● When paired with GCU and Dragonfly control software, it can display real-time footage on a computer without requiring protocol integration, and also enables control of the gimbal.
● Supports overlaying OSD information such as latitude, longitude, and altitude on the footage, and can write shooting point coordinates to EXIF information in photos. The video stream supports overlaying SEI (Supplemental Enhancement Information).
● Wide voltage input range of 14~53 VDC.


Specifications:
General
Product Name: D-80AI
Dimensions: Gimbal: 85.8 x 86 x 129.3mm
GCU: 45.4 x 40 x 13.5mm
Weightz: Gimbal: 429g
GCU: 18.6g
Operating Voltage: 14 ~ 53 VDC
Power: Gimbal: 6.7W (AVG, light off) / 55 W (Stall, light on)
GCU: 1.8W
Mounting: Downward / Upward

Gimbal
Gimbal Type: 3-axis Nonorthogonal Mechanical Stabilization
Angular Accuracy: ±0.01°
Controllable Range Pitch: -157°～+80°, Yaw: ±360°constantly
Max Controllable Speed Pitch:±200°/s, Yaw: ±200°/s

Zoom Camera
Image Sensor: 1/2.8”CMOS; Effective Pixels: 2.07M
Lens: Focal Length: 4.7~47mm
HFOV: 61.3°～6.8°
VFOV: 36.9°～3.9°
DFOV: 68.4°～7.8°
Resolution: 1920 x 1080
Pixel Pitch: 2.9μm
Optical Zoom Rate: 10x
Equivalent Digital Zoom Rate: 3x
Min Illumination: Night Vision off: 0.01Lux / F1.6
Night Vision on: 0.0015Lux / F1.6
Object Detection Distance: EN62676-4:2015 Person[1]: 709m; Light vehicle[2]: 932m; Large vehicle[3]: 1986m
Johnson Criteria Person: 8103m; Light vehicle: 24851m; Large vehicle: 52943m
Object Identification Distance: EN62676-4:2015 Person: 142m; Light vehicle: 187m; Large vehicle: 397m
Johnson Criteria Person: 2026m; Light vehicle: 6213m; Large vehicle: 13236m
Object Verification Distance: EN62676-4:2015 Person: 71m; Light vehicle: 93m; Large vehicle: 199m
Johnson Criteria Person: 1013m; Light vehicle: 3106m; Large vehicle: 6618m

Wide Camera
Image Sensor: 1/2.8”CMOS; Effective Pixels: 2.07M
Lens: Focal Length: 2.4mm
HFOV: 98.5°
VFOV: 44.3°
DFOV: 101.7°
Resolution: 1920 x 1080
Pixel Pitch: 2.9μm

[1] Reference dimension of person: 1.8x0.5m. Critical dimension under Johnson criteria is 0.75m
[2] Reference dimension of light vehicle: 4.2x1.8m. Critical dimension under Johnson criteria is 2.3m
[3] Reference dimension of large vehicle: 6.0x4.0m. Critical dimension under Johnson criteria is 4.9m

Laser Lighting Module
Wavelength: 850±10nm
Laser Power: 0.8W
Beam Angle: 8°
Beam Diameter: 14m @ 100m
Effective Illumination Distance: ≤200m
Laser Safety: Class 3B (IEC 60825-1:2014)

AI Multi-object Detection & Tracking
Object Size: 16x16 ~ 128x128 px
Object Identification Delay: ＜40ms
Tracking Speed: ±32 px / field
Tracking Deviation Refresh Rate: 30Hz
Tracking Deviation Output Delay: ≤5ms

Image & Video
Image Format: JPEG
Maximum Image Resolution: 1920 x 1080
EXIF: Shooting point coordinate
Video Format: MP4
Maximum Video Resolution: 1080P@25fps
Stream Encode Format: H.264, H.265
Stream Network Protocol: RTSP

Storage
Supported SD Cards: Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB
Support File System: HDD-FAT32

Environment
Operating Temperature: -20℃～50℃
Storage Temperature: -40℃～60℃
Operating Humidity: ≤85%RH (Non-condensing
