Holybro Pixhawk 6X Autopilot Pixhawk Flight Controller (ICM-45686)

Key Design Points

• Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
• High performance STM32H753 Processor with clock speed up to 480 MHz

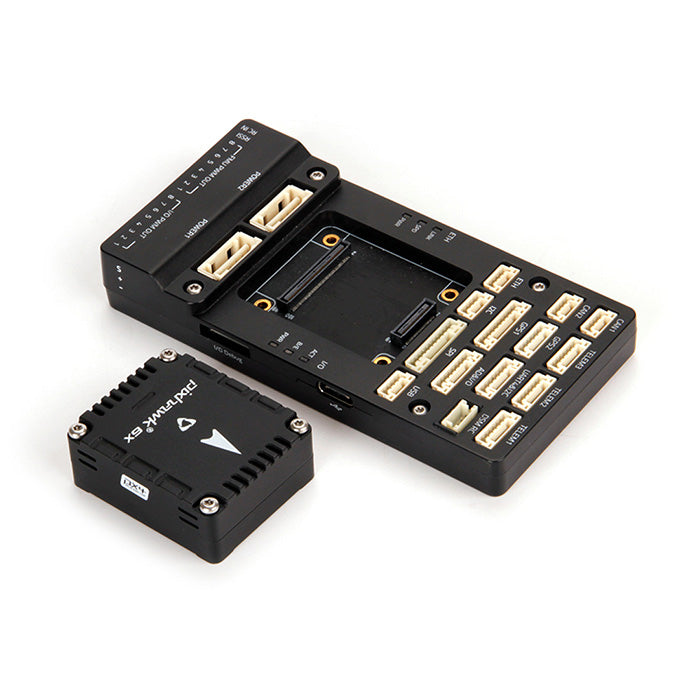

• Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
• Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
• All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
• Ethernet interface for high-speed mission computer integration
• Temperature-controlled IMU board, allowing optimum working temperature of IMUs

All new Vibration Isolation Design

This new vibration isolation design uses same custom-formulated durabile silicone-based isolation material as the Pixhawk 6X Pro, in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone.

Processors & Sensors

• FMU Processor: STM32H753
  • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
• IO Processor: STM32F103
  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors (Shipping Currently, Rev8)
  • Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
  • Barometer: ICP20100 & BMP388
  • Mag: BMM150

• On-board sensors (Previous Revision, Rev 3/4)
• Accel/Gyro: BMI088/ICM-20649
• Accel/Gyro: ICM-42688-P
• Accel/Gyro: ICM-42670-P
• Mag: BMM150
• Barometer: 2x BMP388

Electrical data

• Voltage Ratings:
• Max input voltage: 6V
• USB Power Input: 4.75~5.25V
• Servo Rail Input: 0~36V
• Current Ratings:
• Telem1 output current limiter: 1.5A
• All other port combined output current limiter: 1.5A

Mechanical data

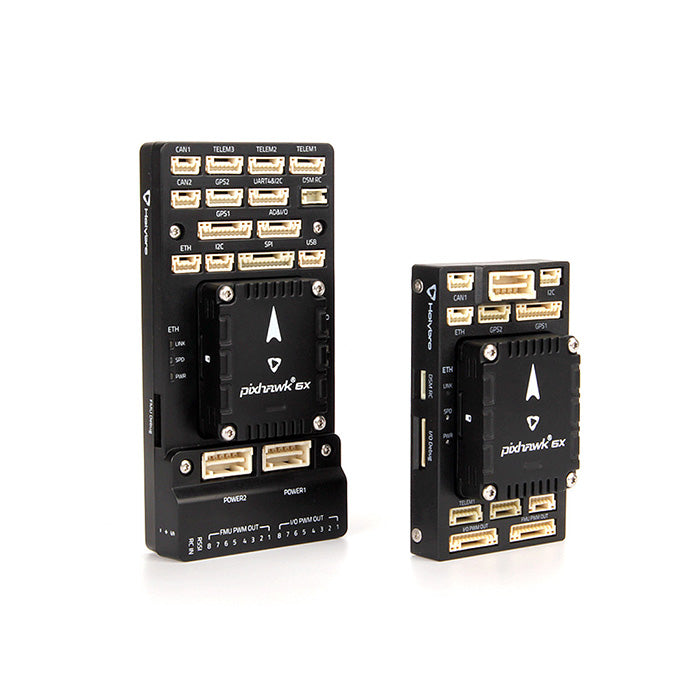

• Dimensions
• Flight Controller Module: 38.8 x 31.8 x 16.8mm

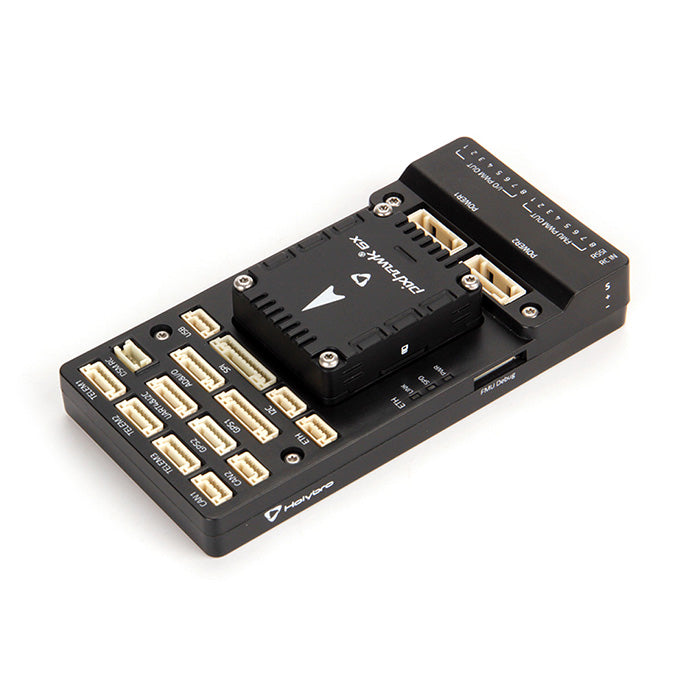

• Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)

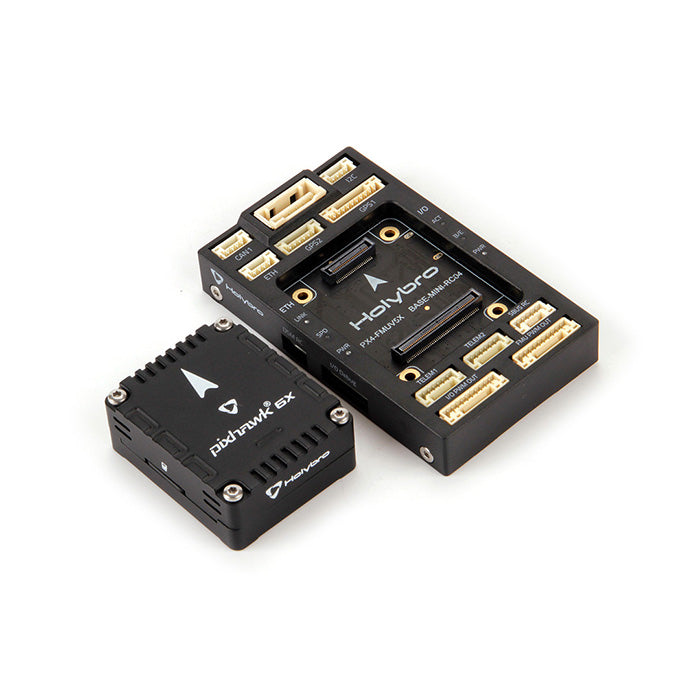

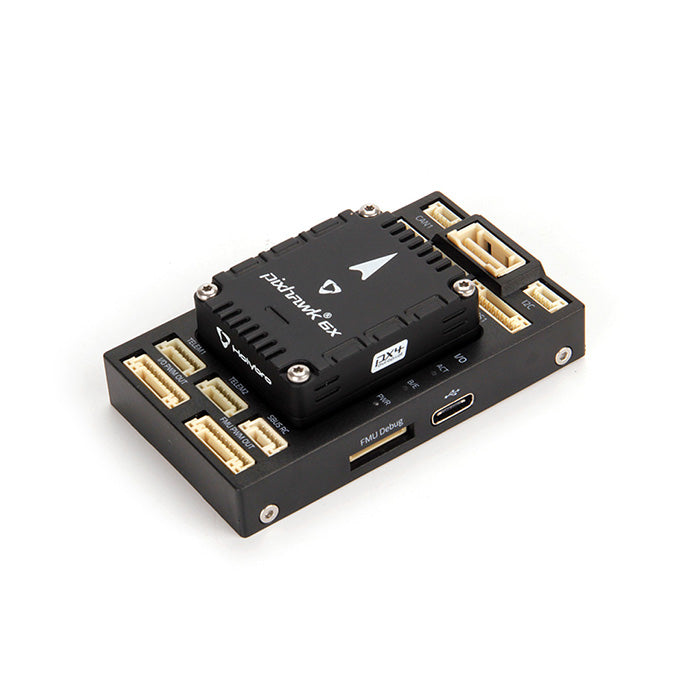

• Mini Baseboard: 43.4 x 72.8 x 14.2 mm
• Weight
• Flight Controller Module: 31.3g
• Standard Baseboard: 72.5g (Aluminum)
• Mini Baseboard: 26.5g

Interfaces
16- PWM servo outputs
R/C input for Spektrum / DSM
Dedicated R/C input for PPM and S.Bus input
Dedicated analog / PWM RSSI input and S.Bus output
4 general purpose serial ports
3 with full flow control
1 with separate 1.5A current limit (Telem1)
1 with I2C and additional GPIO line for external NFC reader
2 GPS ports
1 full GPS plus Safety Switch Port
1 basic GPS port
1 I2C port
1 Ethernet port
Transformerless Applications
100Mbps
1 SPI bus
2 chip select lines
2 data-ready lines
1 SPI SYNC line
1 SPI reset line
2 CAN Buses for CAN peripheral
CAN Bus has individual silent controls or ESC RX-MUX control
2 Power input ports with SMBus
1 AD & IO port
2 additional analog input
1 PWM/Capture input
2 Dedicated debug and GPIO lines



Package Included:

• Pixhawk 6X Flight Controller Module
• Pixhawk Standard Base / Pixhawk Mini Base
• PM02D Power Module
• Cable Set
