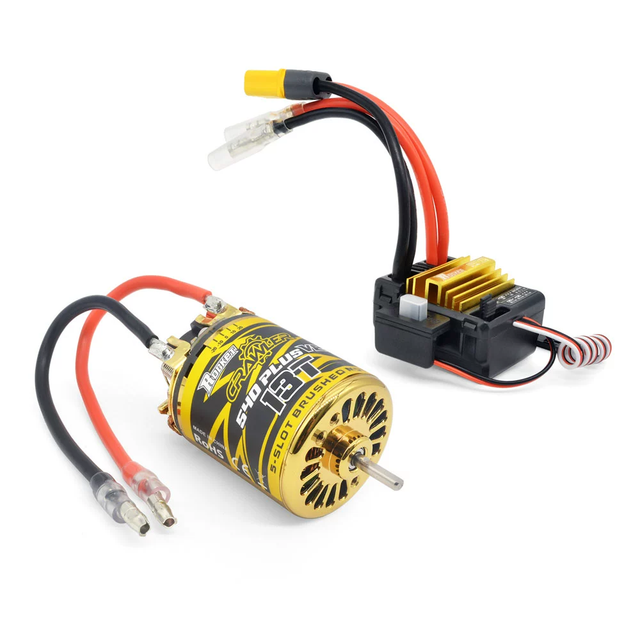

Surpass Hobby Waterproof 540 PLUS V2 11T 13T 16T 20T 3.175mm Brushed Motor 80A 2-3S ESC Combo

Surpass Hobby Waterproof 540 PLUS V2 11T 13T 16T 20T 3.175mm Brushed Motor 80A 2-3S ESC Combo

Features:
-Precision measurement with high hardened steel cans gold plating process;
-Super thin (0. 35mm)imported silicon steel sheet stator;
-High current with high quality low resistance carbon brush from Japan;
-24K gold-plated & low internal resistance terminal Solder Tabs;
-Super large precision balanced 5 slot skew rotor stable , reliable with large torque;
-Equipped with double PCB board capacitors to effectively prevent interference and EMC certification approved;
-Removable / replaceable structure , easy to clean and maintain;
-Specially designed for RC Crawler aim for precise control;

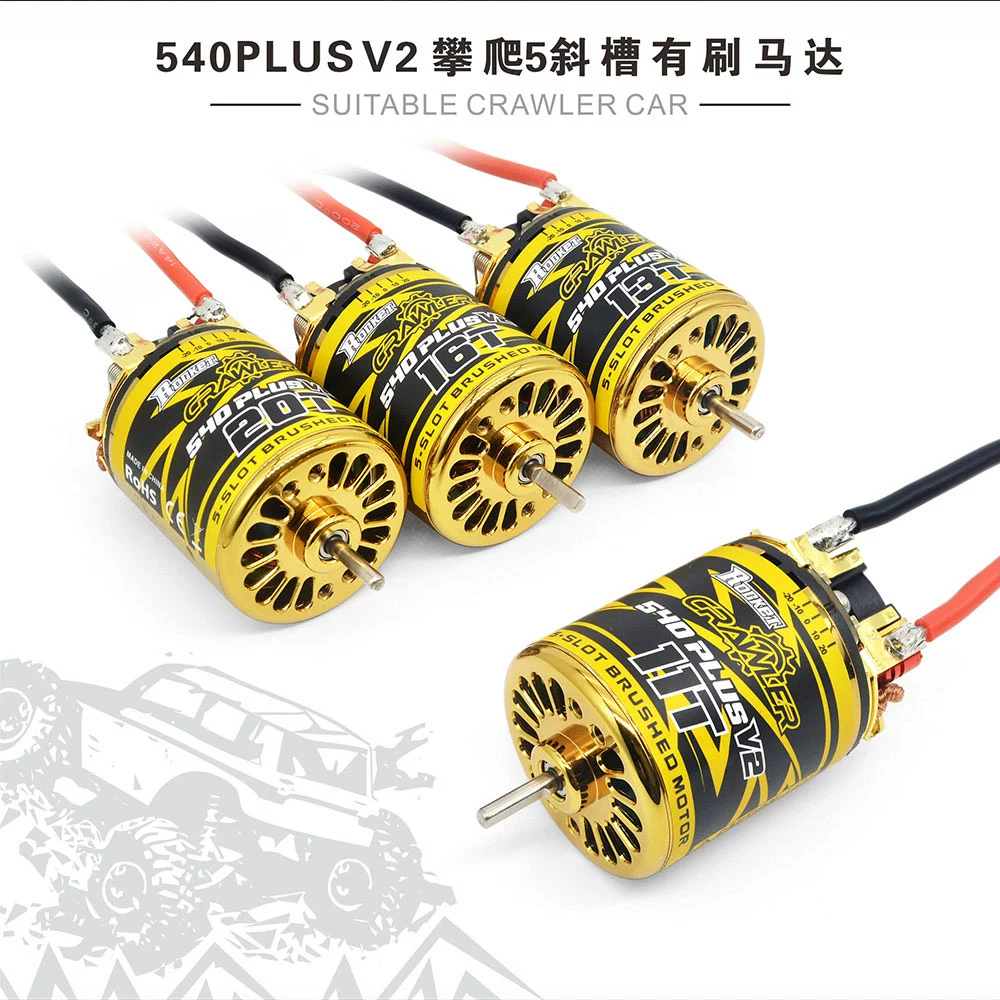

540 plus V2 11T
Voltage(lipo): 7.4V;
NO-load current:<3.2A;
Current: 16-90A;
WEIGHT: 187;
TURN: CCW;
Shaft: 3.175;

540 plus V2 13T
Voltage(lipo): 7.4V;
NO-load current:<2.9A;
Current: 13-78A;
WEIGHT: 187;
TURN: CCW;
Shaft: 3.175;

540 plus V2 16T
Voltage(lipo): 7.4V;
NO-load current:<2.5A;
Current: 10.9-59A;
WEIGHT: 187;
TURN: CCW;
Shaft: 3.175;

540 plus V2 20T
Voltage(lipo): 7.4V;
NO-load current:<1.9A;
Current: 8.5-48A;
WEIGHT: 187;
TURN: CCW;
Shaft: 3.175;

Surpass Hobby 80A 2-3S ESC:
Cont. Current/Burst Current: 80A/320A;
Resistance: 0.0014ohm;
Motor Type: Brush Motor;
Suitable Car: 1/10 Crawler Brushed;
Battery: 2~3 Cell Lipo, 4-9 Cells NiMH;
BEC: 6.4V/7.4V Switchable And 5A (Switch Mode);
Dimension: 35*42*27mm;
