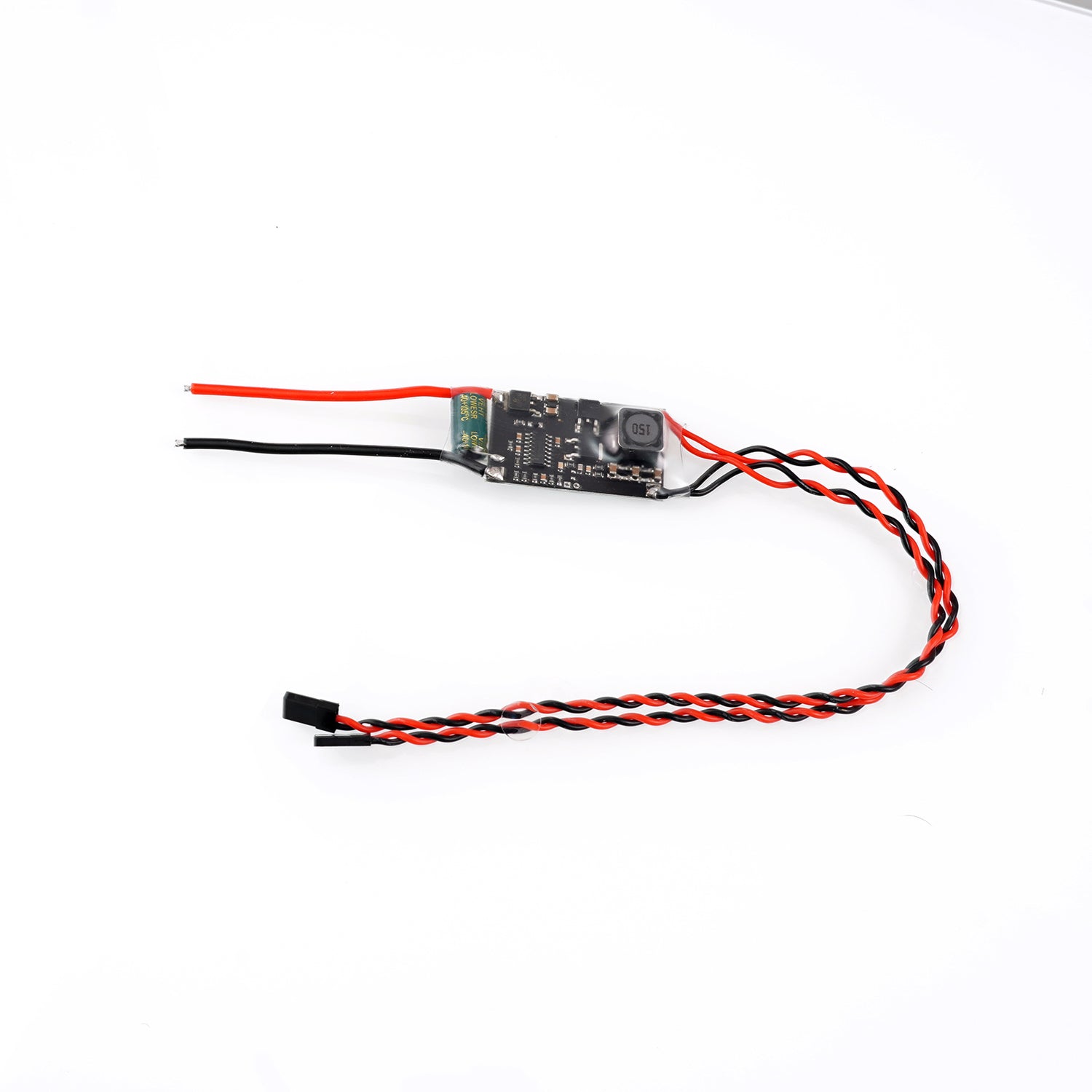

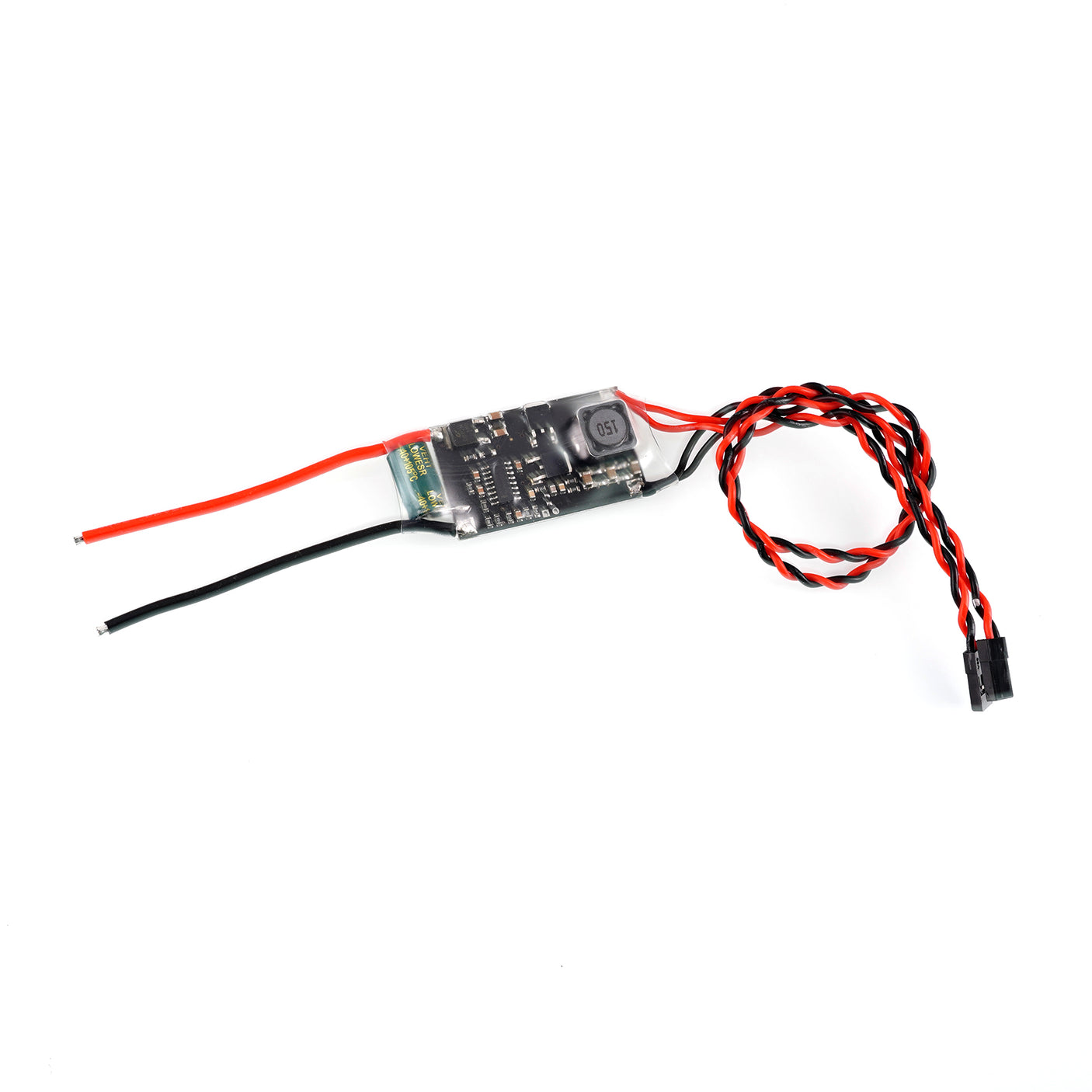

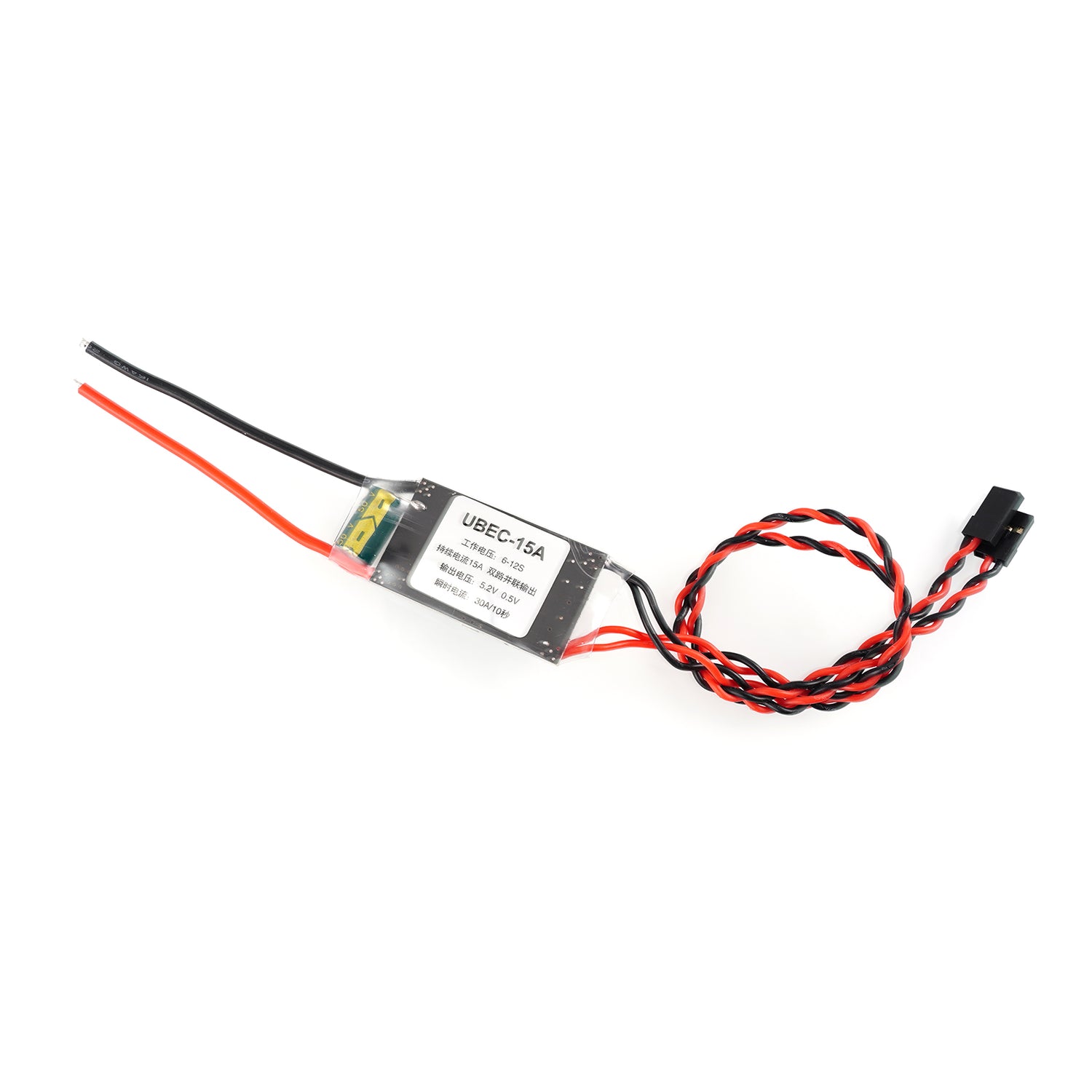

Voltage Regulator Module 15A 6-12S External BEC(UBEC) for Multi-Rotor Airplane
Voltage Regulator Module 15A 6-12S External BEC(UBEC) for Multi-Rotor Airplane is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Features:
1.Adopting a switching power supply structural design, the main control chip of the switching power supply operates at a frequency of 300 kHz, features over-current and over-temperature protection functions, and achieves a chip efficiency of up to 92%.
2.Very small size and light weight;
3.The electronic components are protected by a shielding cover, which greatly reduces electromagnetic interference and ensures the normal operation of the receiver.
4.It has a protection function to prevent the power polarity from being reversed. If the power is accidentally reversed, it will not cause damage to the UBEC.
Specification:
Work voltage:lipo 6s-12s
Continuous current:15A
Instantaneous current:MIN 30A 10 seconds
Output voltage:5.25V +/-0.5V
Weight:36g
Packgae Includes:
1x 15A 6-12S External BEC(UBEC)
