Amass  |  SKU: UC0100-M

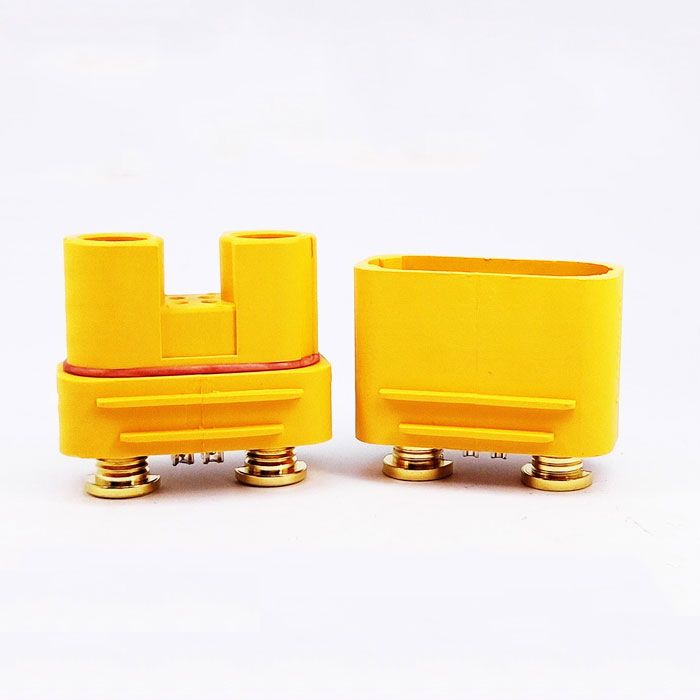

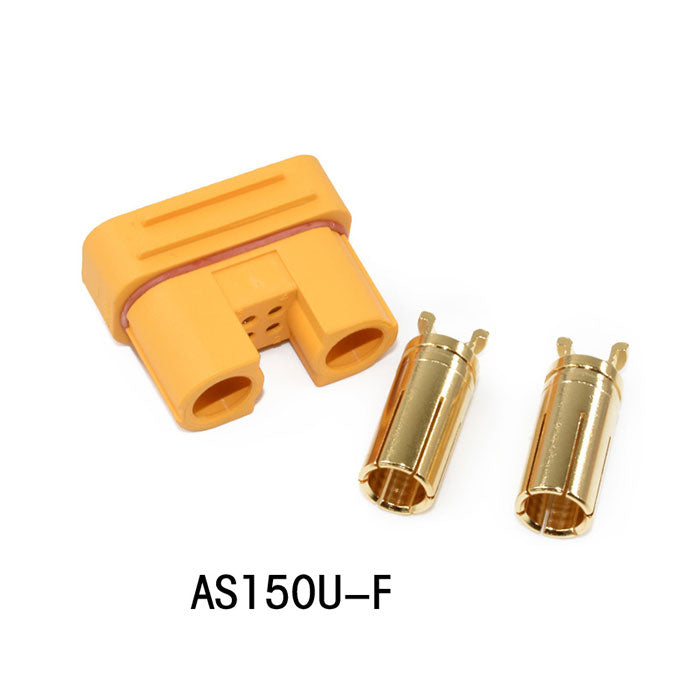

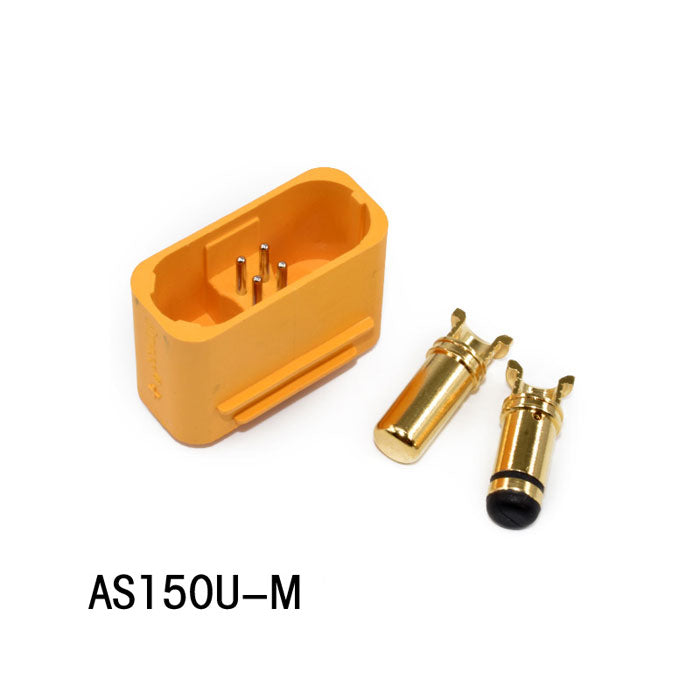

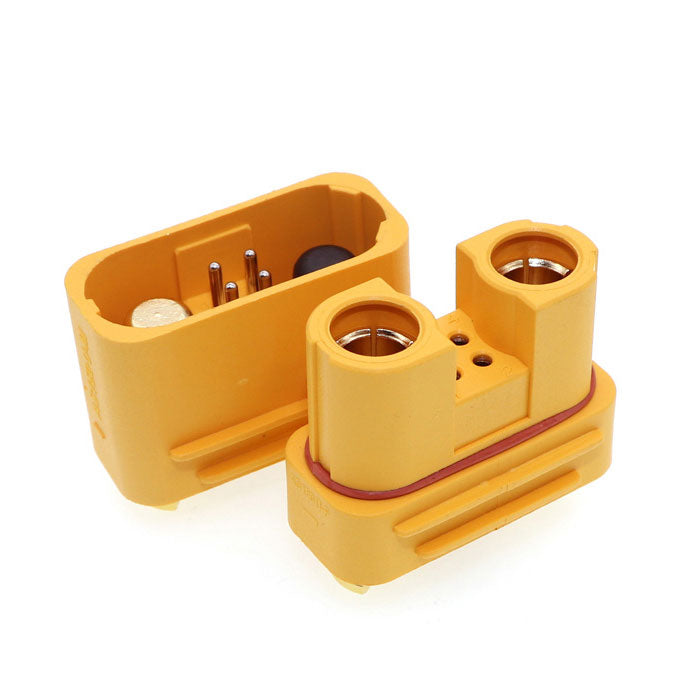

Amass AS150U Anti-sparking Plug Waterproof Connector with Signal Pin AS150U Male Female Plug

$7.99

Version

Amass AS150U anti-sparking waterproof plug for large current is great for UAV drone batteries and other applications.

Main Features:
1. Brass Gold Plated
24K gold coating, up to 2U thickness to ensure the stable of the current transportation.
2. Highly Integrated
The integral casting technology makes the banana connector and plastic parts tightly combined. The shaped jacket design + groove card slot design + anti-skid plug design + waterproof vapor design solves the problem of reverse plug insertion and difficult plug insertion.
3. UL94 V0 Flame Retardant Rating

Specifications:
Product model: AS150U Auti-Sparking Plug
Product color: Yellow
Metal material: Brass Gold plated
Rated Current: 75A MAX(8AWG/△<85°)
Contact resistance: ≤0.80mΩ
Insulation resistance:≥2000mΩ
Rated voltage: DC 500V
Flame retardant rating: UL94 V0
Recommended wire: 8AWG/28AWG
Insulation material: PA66
Operating temperature: -20°C to 120°C
Recommended usage: 100 TIMES
Recommended Applications: UAV Drone Battery

Package Included:
Amass AS150U Anti-sparking Plug Waterproof Connector with Signal Pin x 1

Amass AS150U

Amass AS150U

Amass AS150U

Amass AS150U

Amass AS150U

Amass AS150U

Amass
