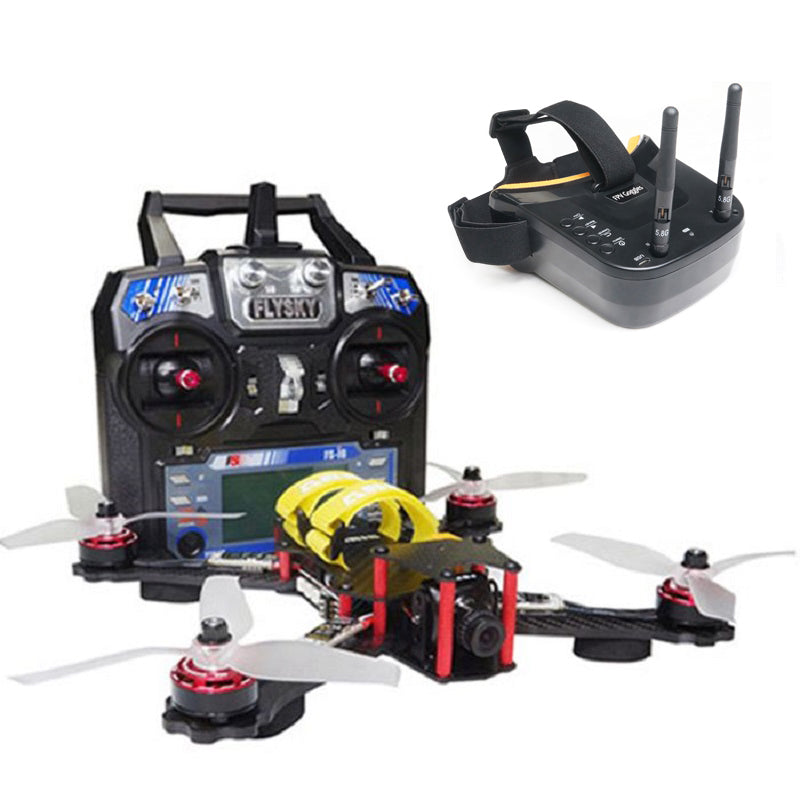

ARRIS C250 FPV Racing Quad FPV RTF Combo with EV800D Goggle

Note: ESC is upgrade to 2-4S BLS 30A.
Camera upgrade to arris 1200tvl camera.The flight controller upgrade to Omnibus F4 Pro V3 Flight Controller

Update: Propeller waschanged to 5045 propeller, the black standoffs were changed to red color.

ARRIS C250 FPV Racing drone RTF is the latest 250 series FPV racer released by ARRIS. The ARRIS C250 RTF comes with arris S2205 brushless motor, ARRIS falcon 20A ESC, 5045 3 blade propeller, ARRIS XAT700M camera, 5.8G 200mW video TX and antenna, ARRIS 4s 1500mah 50C battery. The ARRIS C250 RTF is fully assembled, tuned and tested before it left the factory.

Specifications:
Dimension:195mm x 230mm x 42mm (Propellers not included)
Diagonal Wheelbase: 250mm
Flight Controller:F3 flight Controller
Frame Material: Pure Carbon fiber sheet
BNF weight:350g
Radio System: Flysky FSi6 Radio with Receiver
Camera: ARRIS XAT700M fpv camera
FPV TX: 5.8G 200mw 40CH
Antenna: 5.8G Antenna
Flying Time: 10min hovering
Battery: ARRIS 4S 1500mah 50C Lipo

Camera Upgrade to ARRIS XAT700M FPV Camera

ARRIS C250 is made of pure carbon fiber material. The upper plate and side plate adopts 1.5mm pure carbon fiber material, decrease the weight of the whole frame. Meanwhile, the motor arm adopts 4mm carbon fiber material, ensure the strength of the frame. The total weight of the frame is about 137g.With the simplify one-piece design and lower gravity center design, all kinds of flight actions can be done with facility.

The layout design of the C250 is reasonable, the standard flight controller and PDB board can install there.On the frame, there is reserved space for the XT60 female battery connector.The motor arm has holes for 220x series motors, and both 5 inches and 6 inches propellers can install on the C250 frame. With the adjustable camera mount on the frame, you can adjust the angle of the camera freely. ARRIS C250 also comes with the 3M foam damper which has good vibration-suppressing effect during the landing.

ARRIS S2205 2300KV Brushless Motor. This motor is specially designed for 200-300 sizes multirotors, which weighs only 35g. The ARRIS S2205/2300KV brushless motor is suitable for high speed ESC, light weight fixed-wing copter. And it offers great performance at affordable price.

ARRIS Flucolor 30A ESC- These Falcon series ESC is specially developed for multirotor aircrafts. The use of high performance MCU processor gives a smooth, linear and precise response. The Falcon 20A brushless ESC keeps the weight down and comes in a small package but it still has top quality. With low resistance IC, the Falcon 20A can produce little heat and give more efficiency. Firmware utilizing Oneshot125 communication protocol, which makes it to be very fast and responsive to throttle movements. Easy upgrading and downgrading firmware is a simple process through the BLHeli Suite.

ARRIS 5045 High Quality Propeller-The 3-blade propeller is specially designed for FPV speed racer,10% higher effeciency than normal propellers.

ARRIS C250 RTF comes with the F3 standard version flight controller.When we install it, we use the Power Distribution Board PDB with filter. Which makes the wires clean the tidy.

ARRIS FPV Mini camera and installing method.

ARRIS TS5823S 5.8G 200mW 40CH Mini Video Transmission TX and light antenna. The ARRIS TS5823S transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must for those looking save size and weight while still getting good performance. The ARRIS TS5823S is transmitting a full range of 40 channels and only weighs 10g. It's perfect for a wide range of aircraft!

High Brightness LED.ARRIS C250 comes with a high brightness LED. The LED of the ARRIS C250 installed on the two sides of the C250 Frame. For this LED, you can change the color of the LED light through the DIP switches. 7 color for you to choose.

ARRIS 4S 14.8V 1500mAh 50C Graphene LiPo Battery

Specifications:
Item Name: 1500mah 50c 4s Lipo
Nominal Capacity: 1500mAh
Dimension: 29mm x 34mm x 80mm
Nominal Voltage: 14.8V
Weight: 162g
Plug Type: XT60

FlySky FS-i6-M2 2.4GHz 6-Channel Transmitter with FS-iA6B receiver.

Specifications:
Channels: 6 Channels
Model Type: fixed-wing/glider/helicopter
RF range: 2.405-2.475Ghz
Bandwidth: 500Khz
Band: 142
RF Power: Less than 20 dBm
2.4G System: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: Less than 4.2V
DSC port: PS2; output: PPM
Charger port: No
ANT length: 26mm*2 (dual antenna)
Weight: 392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type,128*64 dot matric VA73*39mm, white backlight
Size: 174*89*190mm
Online update: yes
Color: Black
Certificate: CE0678,FCC

ARRIS X-Speed 250B has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable) according to CF parameter-adjustment software. When you turn on the SWD switch to 2 position, the buzzer will "beep beep", it is easy for you to find the quad.

Self-level mode is the easiest to fly, because when you leave the stick at the center and not controlling it, your drone just level itself and stays there. This is good for beginners.
Manual mode is useful for acrobatics such as flips or rolls, or FPV when smooth and fast control is desired. The picture below is what we set on the Flysky radio.

High safety ARRIS 4S 1500mah Lipo Battery

ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.

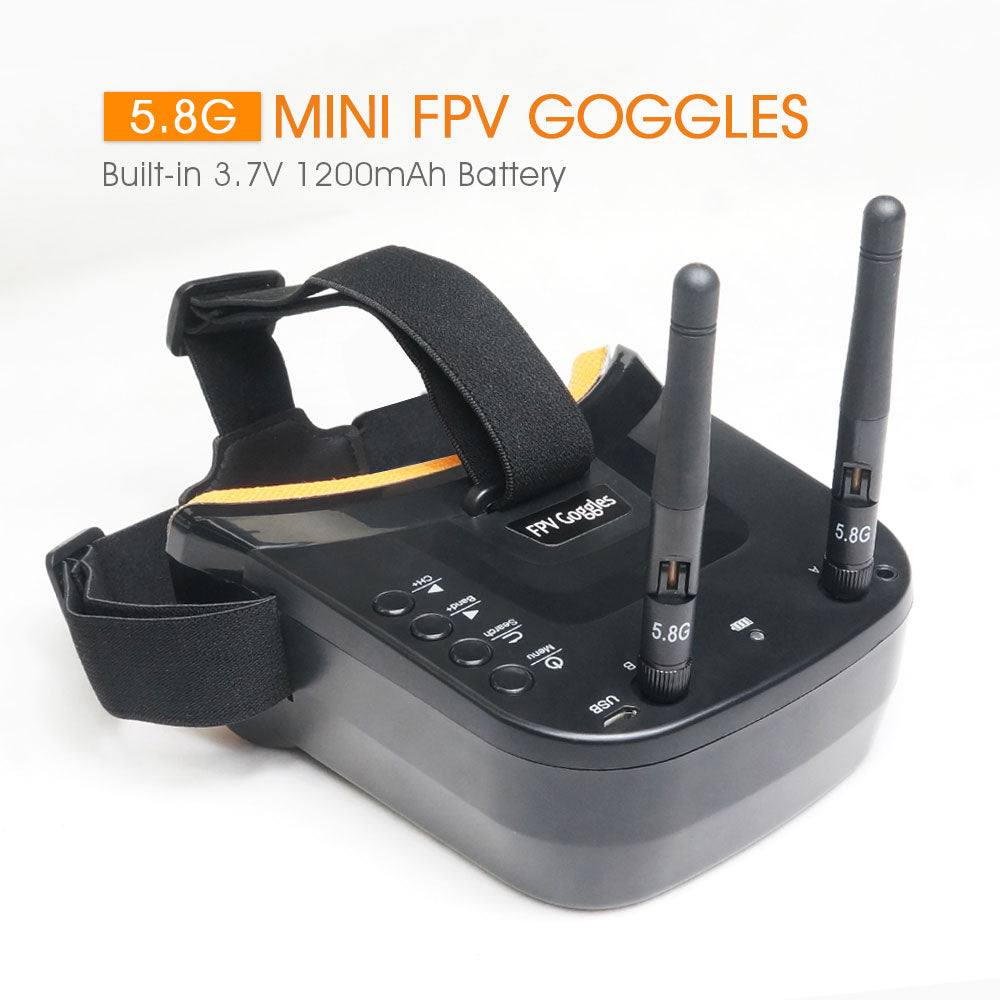

EV800D Feature:
-With DVR,you can record videos anytime and anywhere;
- Low power consumption;
- Double antenna reception to make the signal more stable;
-Auto-Searching,support a key search frequency;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time for DVR OFF and 2.5 hours for DVR ON;
- Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power source, to prolong the working time;
- Ergonomic design fit your faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the adage of screen;
- Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD screen
-Universal USB charging interference;
-Real-time video return,very low time-delay;
-Support external video signal input;
-Support Audio signal output;

Specification：
Item No.	5.8G EV800D Goggles with DVR
DVR	REC size:VGA/D1/HD REC sound: ON/OFF REC time:OFF/3min/5min/10min Frame rate:30 frames Compress format:MJPEG Record flie format:AVI
Screen	Screen size: 5.0 inch Screen resolution: 800*480 (No blur after enlarge by the lens) Display Ratio:16:9 Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV View Angle: 140/120 degree(Horizontal/Vertical)
Lens	2.8xfresnel lens; 92% transparent rate no distort of light;
Battery and recharge	Built-in 3.7V/2000mAh battery; Each battery circle offer around 2.5-3.5hr working time; 5-12V wide recharging voltage range, typical recharging voltage is 5V Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

Interface

Antenna:2xRP-SMA antenna USB:To charge the battery AV jack:External video signal input or internal Audio signal output Card slot: TF-card,support up to 32G(C10 recommend)

Receiver Build in 5.8G 40CH Raceband receiver Frequency Table Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725 Frequency Band B 5733 5752 5771 5790 5805 5828 5847 5866 Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945 Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880 Frequency Band R 5658 5695 5732 5769 5806 5843 588 5917 Body Dimension: 180x140x84mm Weight: 393g (with headbrand,not include antennas)

Package Includes:
1 x ARRIS X-Speed 250B V3 Racing Quad Frame
2 x ARRIS S2205 2300KV Brushless Motors CW
2 x ARRIS S2205 2300KV Brushless Motors CCW
4 x ARRIS 5045 3-blade Propeller (2CW + 2CCW)
1 xFlycolor S-Tower w/30A 4 in 1 ESC + F4 + OSD + PDB
1 xarris Fpv Camera
1 x 5.8G 200mw 32CH FPV TX
1 x FPV Transmitter Antenna
1 x Flysky FSI6 6-CH Radio with Receiver
1 x LED
1 x ARRIS 4S 1500mah Lipo Battery
1 x EV800D FPV Goggle

Battery Charger is sold separately.
