Other  |  SKU: UC0118-M

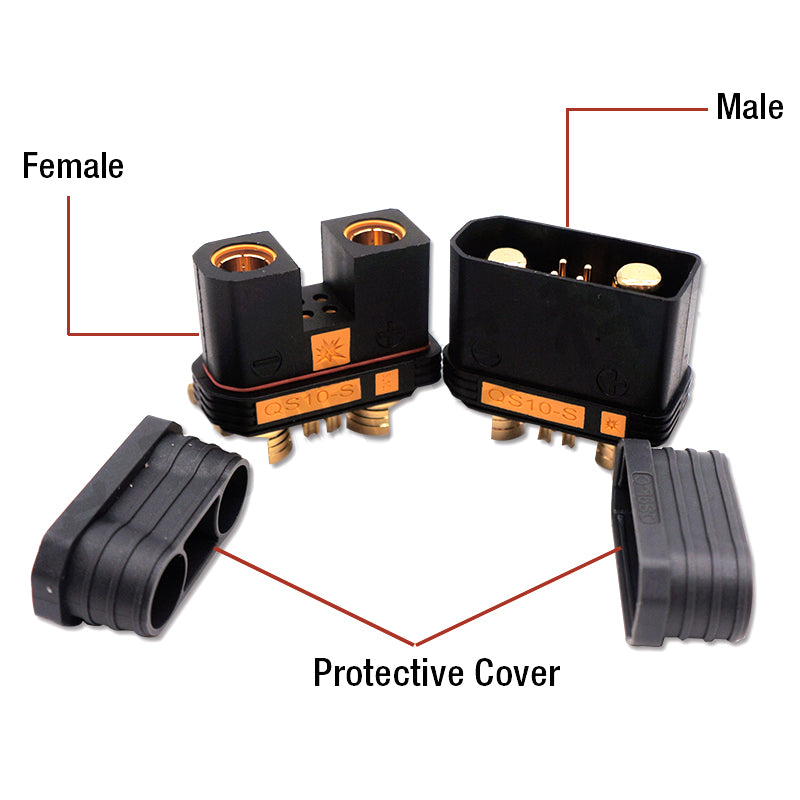

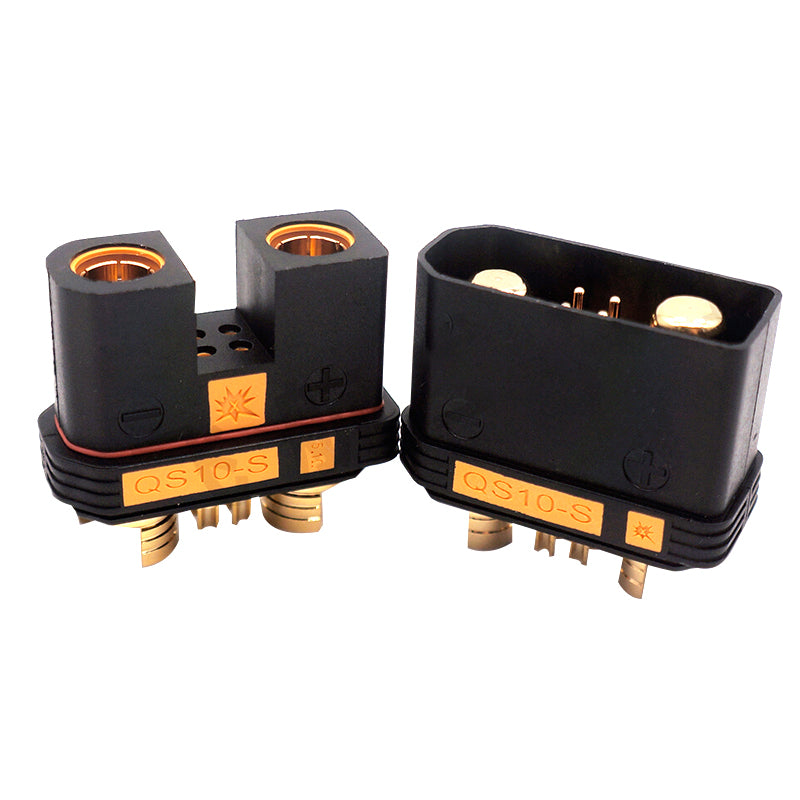

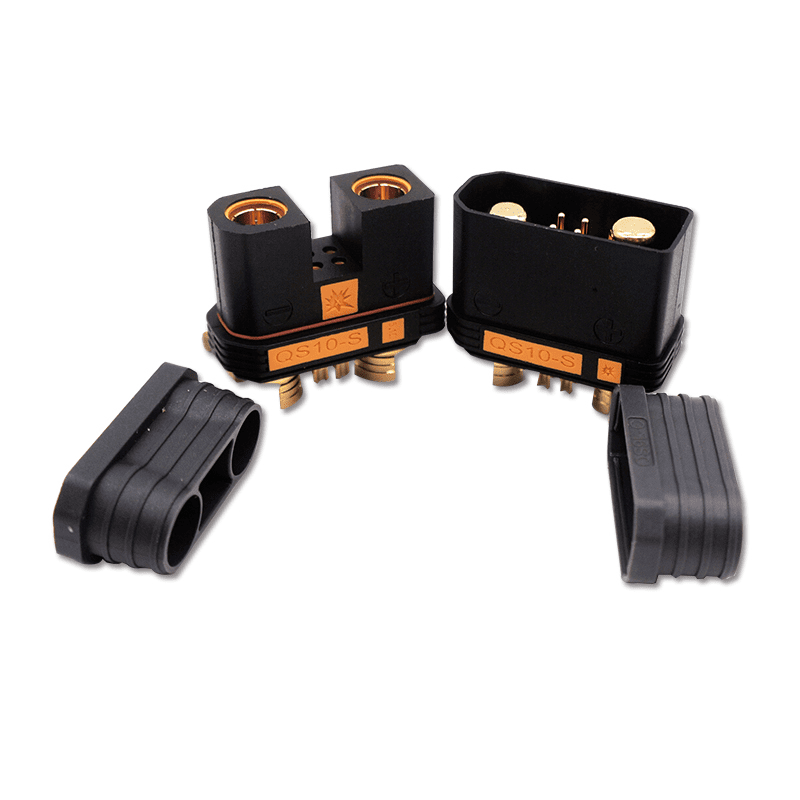

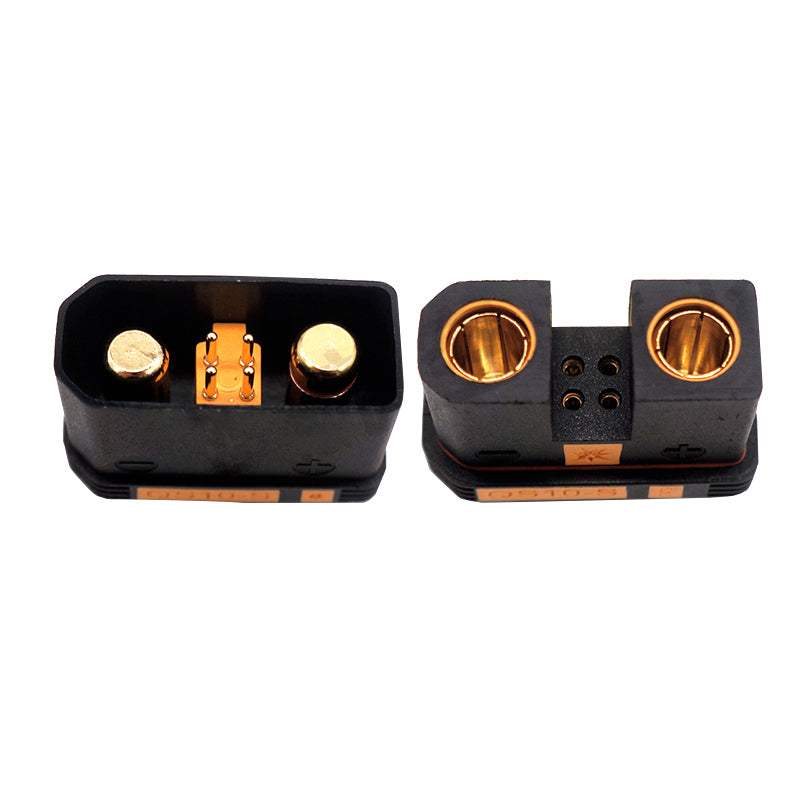

ARRIS QS10-S Heavy-duty Anti-spark Battery Connector High Current Plug Male Female for UAV agriculture drone

$8.99

Version

The QS10-S Heavy-duty Anti-spark Battery Connector is special for UAV agriculture drone power plug and RC car and electric vehicles,adn the QS8-S comes with anti-spark function,and used to avoid sparks in the initial connection.

Features:
1.Anti-spark function;
2.High current;
3.High temperature resistance;

Specification:
Model: QS10-S-F QS10-S-M
Color:Black
Insulation material:PA
Connector material: gold plated copper
Temperature range: -30-150 ℃
Rated voltage:DC 750 V
Rated current: 180A
Instantaneous current:240A
Anti-Flammability rating:UL94 V0
Contact resistance:0.51mΩ
Max wire guage:4AWG
Recommended using times:1000 times

Package includes:
1x QS10-S Anti-spark Battery Connector
