EaglePower  |  SKU: GA0271

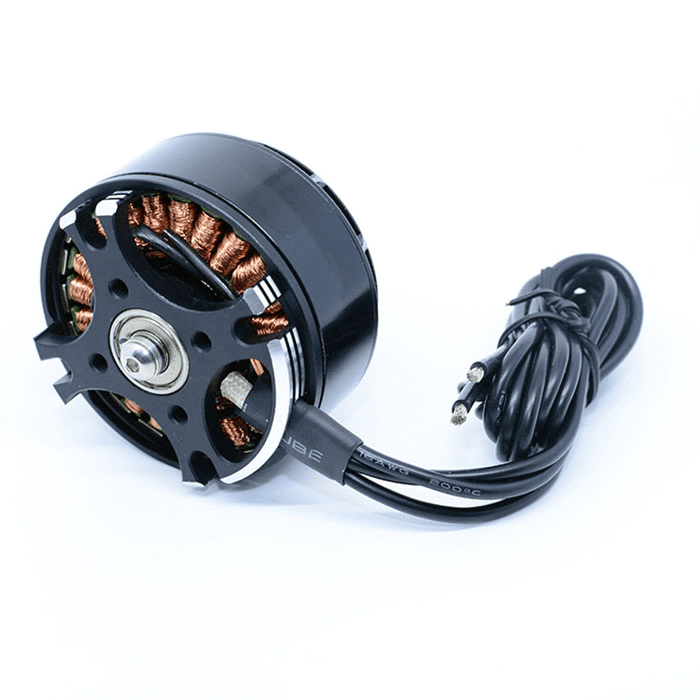

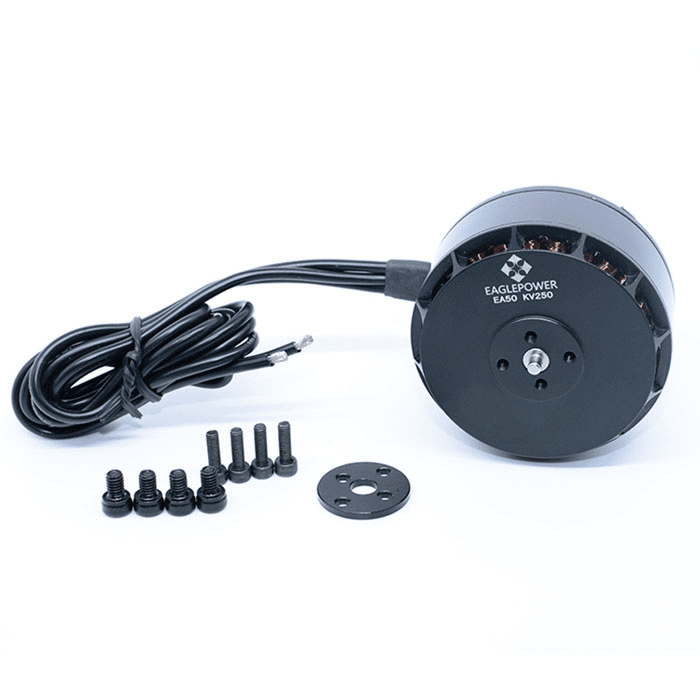

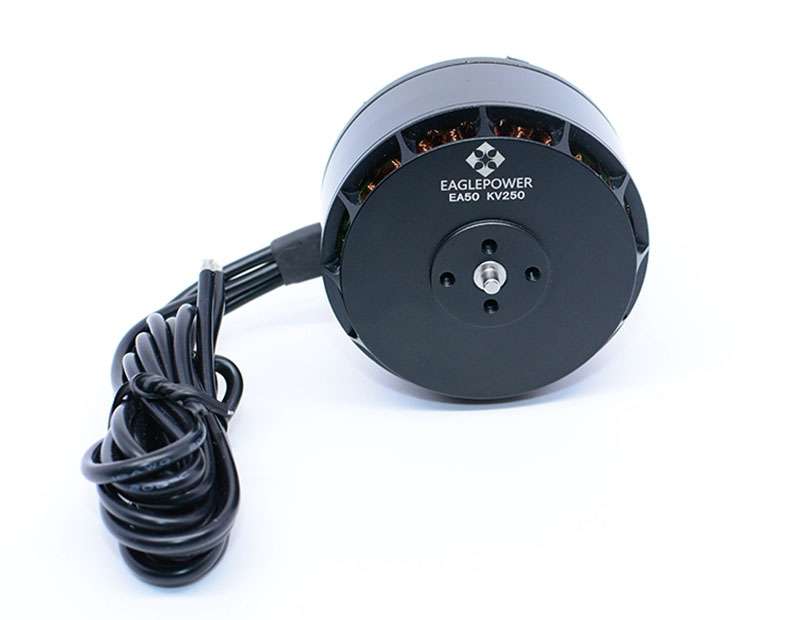

Eaglepower EA50 5215 220KV Brushless Motor for RC Drones

$48.00


Eaglepower 5215 220KV brushless motor is great for 6S powered drones with 20-22" propellers.

Specifications:
Item Brand: Eaglepower
Item Model: 5215 220KV
Configuration: 24N22P
Motor Size: 59x35mm
Weight: 268g
Idle Current (24V): 0.85A
Battery Voltage: 6S Lipo
Max Continuous Current: 25A
Max Continuous Power: 1150W
Internal Resistance: 0.104Ω

Package Included:
Eaglepower EA50 5215 220KV Brushless Motor x 1
Test Parameters
Motor Type

Battery

Propeller

Appropriate take-off weight
4 Axis 6 Axis 8 Axis
5215 220KV 6S 2055 5.6-6.8kg 8.4-10.2kg 11.2- 13.6kg

Current(A) 2 4 6 8 10 12 14 15.5
Thrust(g) 604 1040 1438 1742 2097 2336 2611 2835
Power(w ) 44.4 88.8 133.2 177.6 222 266.4 310.8 344.1
Efficiency(g/w) 13.6 11.7 10.8 10.9 9.4 8.769 8.401 8.239

Motor Type

Battery

Propeller

Appropriate take-off weight
4 Axis 6 Axis 8 Axis
5215 220KV 6S 2255 6.4-7.8kg 9.5-11.7kg 12.7-15.6kg

Current(A) 2 4 6 8 10 13 16 20
Thrust(g) 685 1146 1585 1913 2248 2641 3159 3537
Power(w ) 44.4 88.8 133.2 177.6 222 288.6 355.2 444
Efficiency(g/w) 15.4 12.9 11.9 10.9 10.1 9.151 8.894 7.966
