HGLRC  |  SKU: MA0182

HGLRC Zeus 800mW Smart Mounting 20*20 / 30*30 VTX For FPV Racing Drone

$33.99


US Shipping Notice

Due to the new tarrif policy, if you choose the following shipping method to US:
Express Shipping: Plese provide your Fedex Account.
DHL: Please provide your EIN or SSN number.
Tarrif bill will send to these account.

HGLRC Zeus 800mW Smart Mounting 20*20 / 30*30 VTX For FPV Racing Drone

Specifications:
Model:Zeus VTX 800mW

Built-in Microphone
Input voltage:DC 6-26V
Output voltage:5V/2A
PIT@94mA
25mW@169mA/14dBm
100mW@199mA/20dBm
200mW@216mA/23dBm
400mW@279mA/26dBm
800mW@387mA/29dBm
Antenna interface:MMCX
Output power:PIT/25/100/200/400/800mW
Frequency:5.8GHz 5 bands, 40 channels
Installing Hole:20X20/30X30mm.M3
Size:37mm x 37mm x 5mm
Weight:4.8g

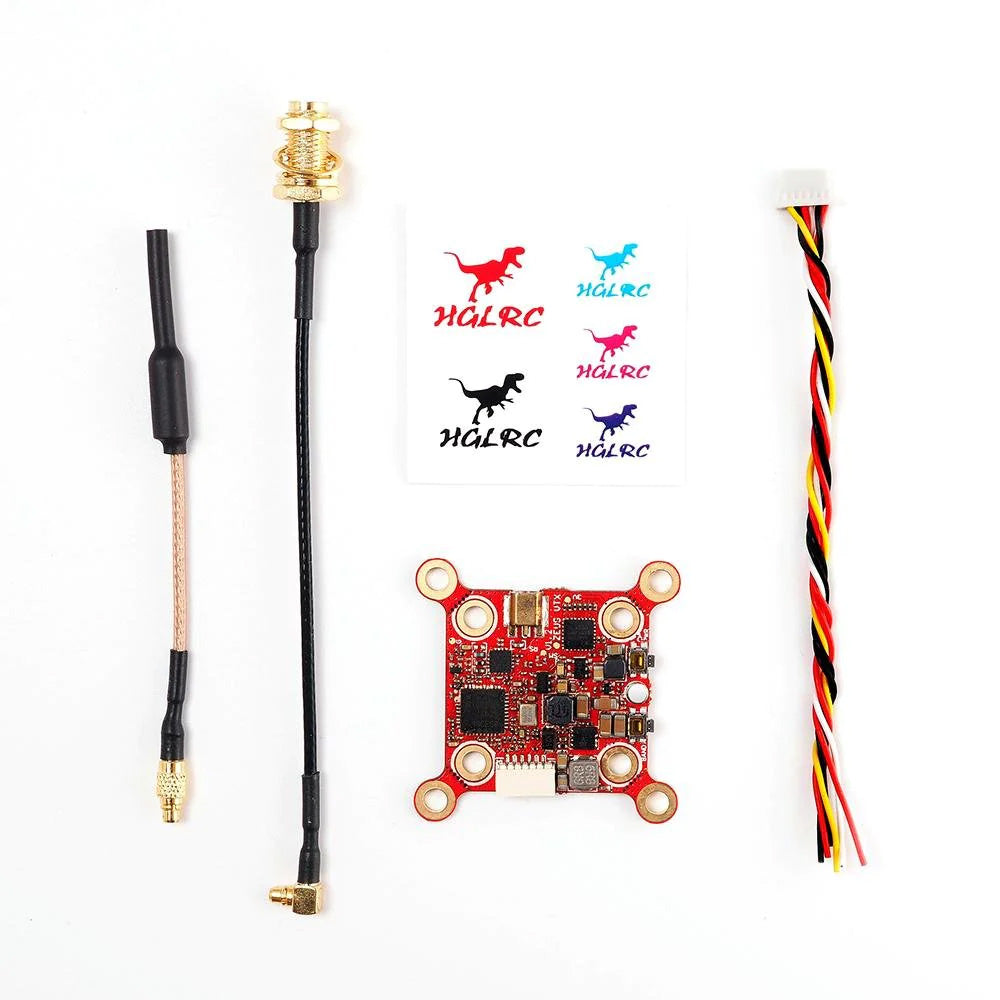

Package Included:
1 x Zeus VTX 800mW
1 x 80mm 5.8G MMCXLinear Brass Antenna
1 x SH1.0 6Pin 100mm Cable
1 x MMCX to SMA-KY Adapter Cable

HGLRC
