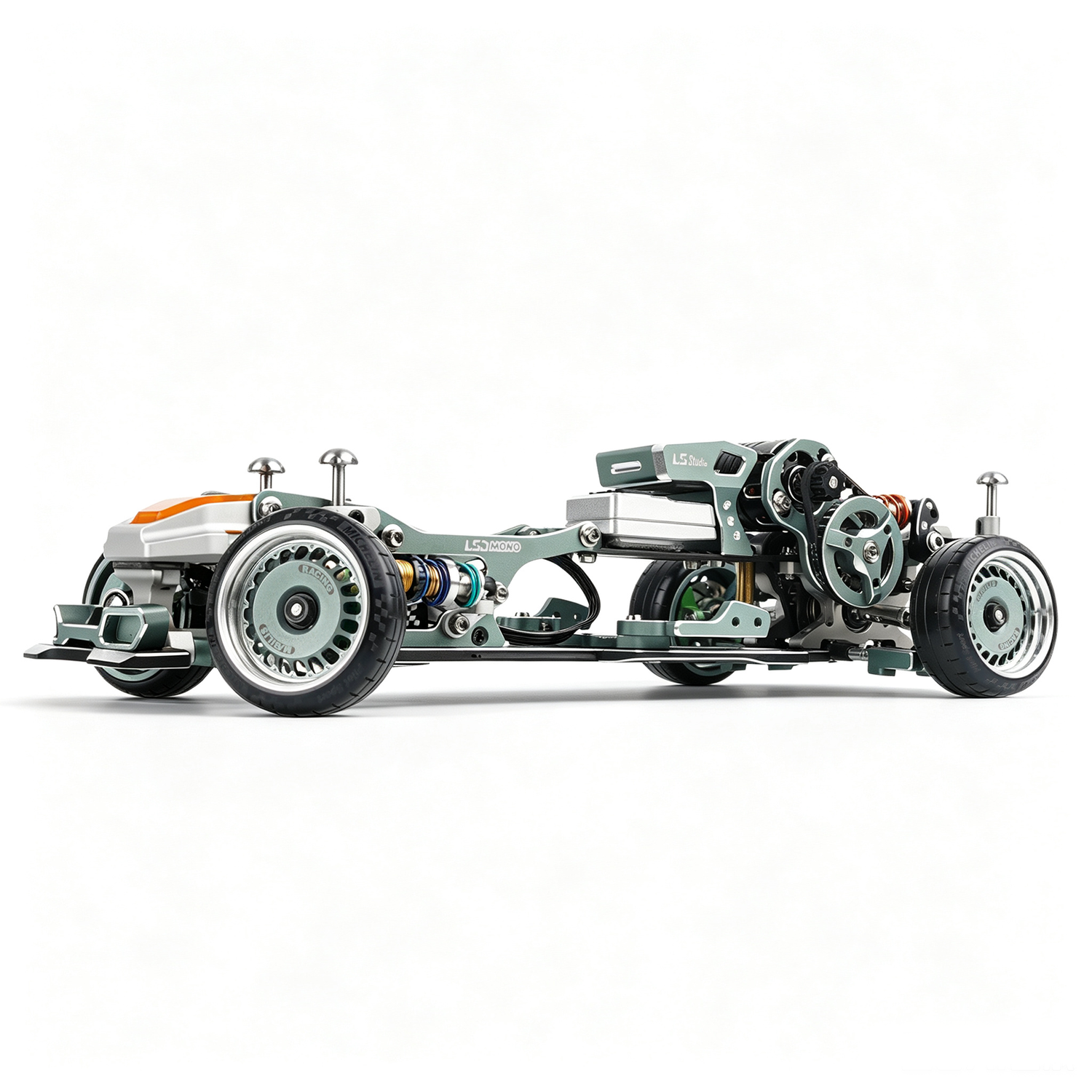

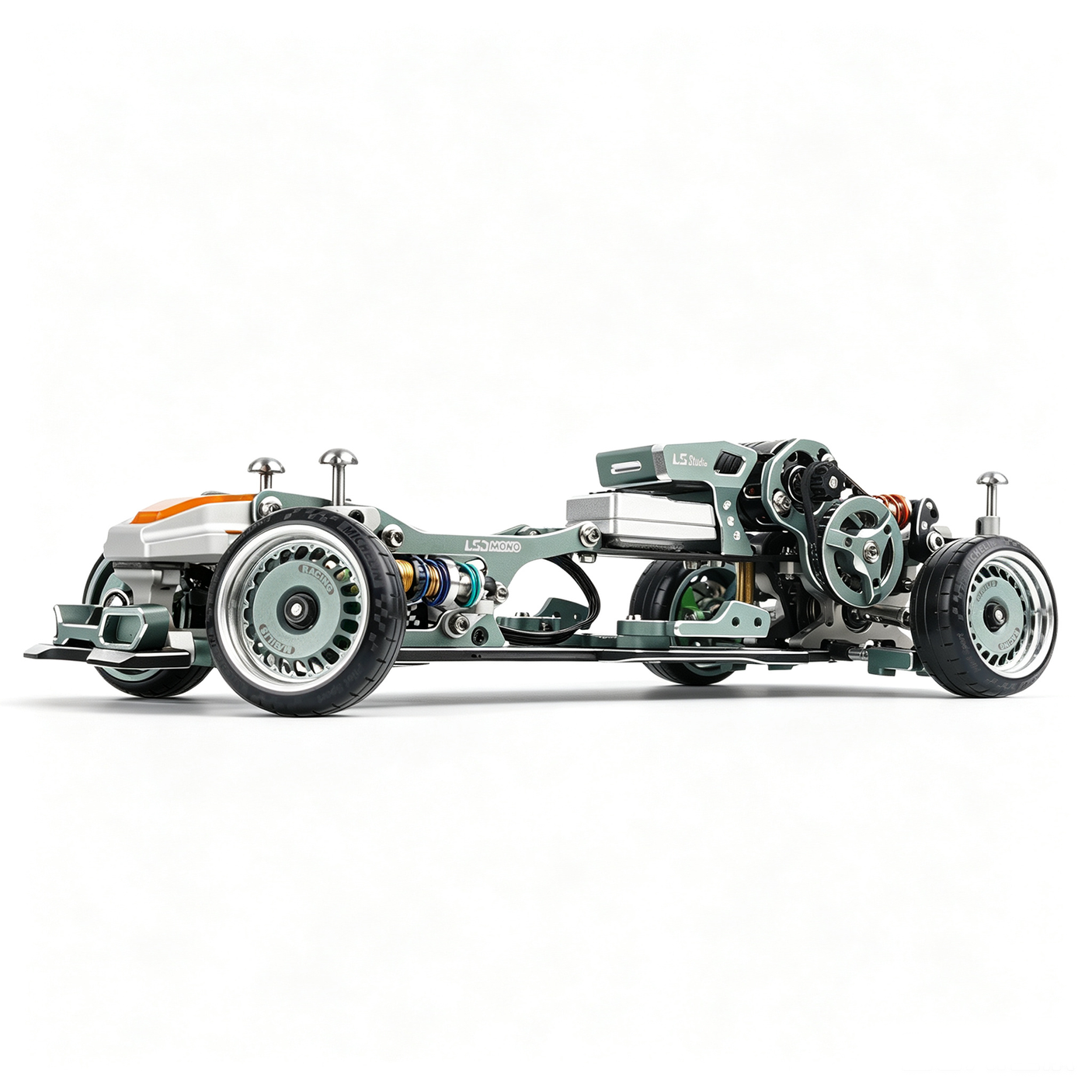

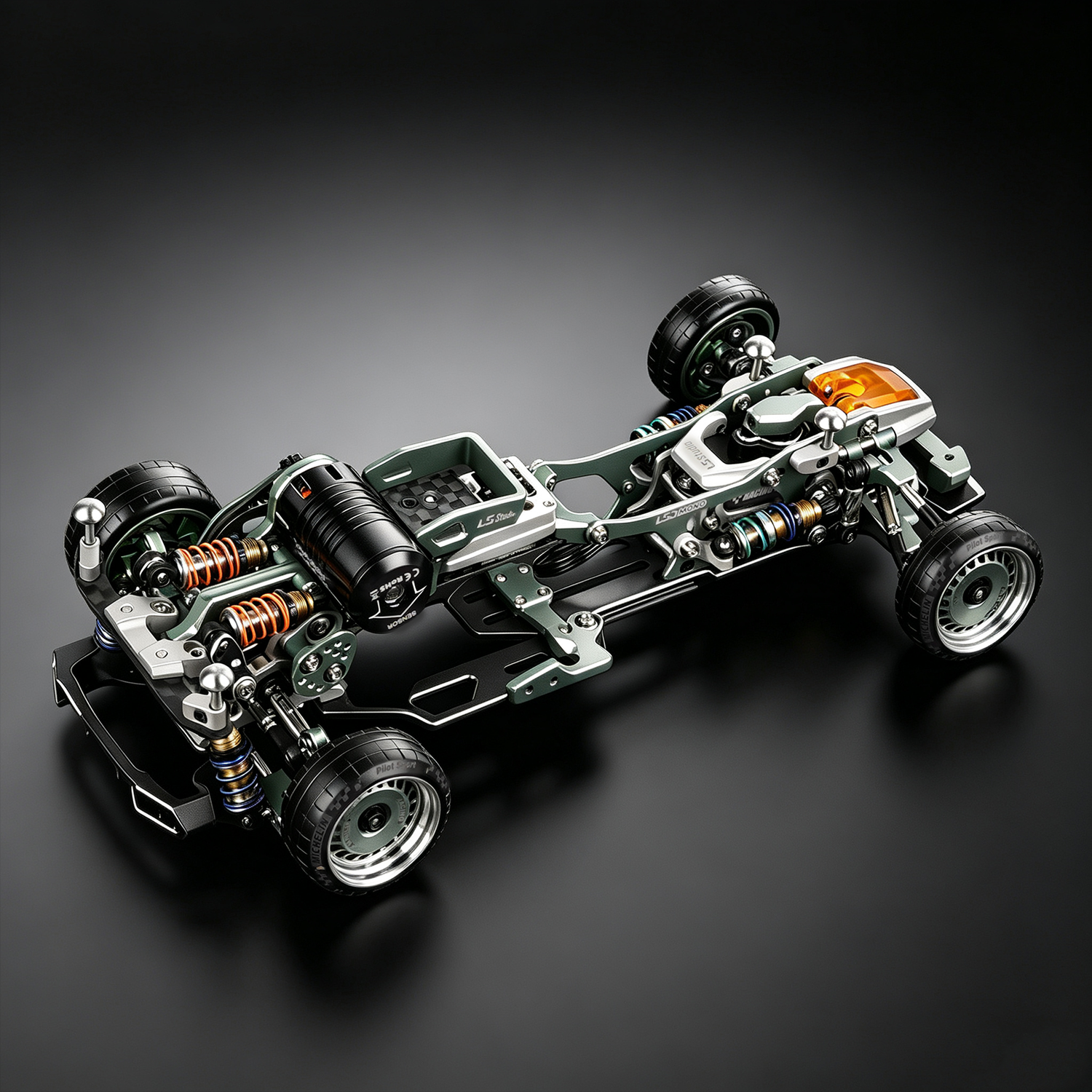

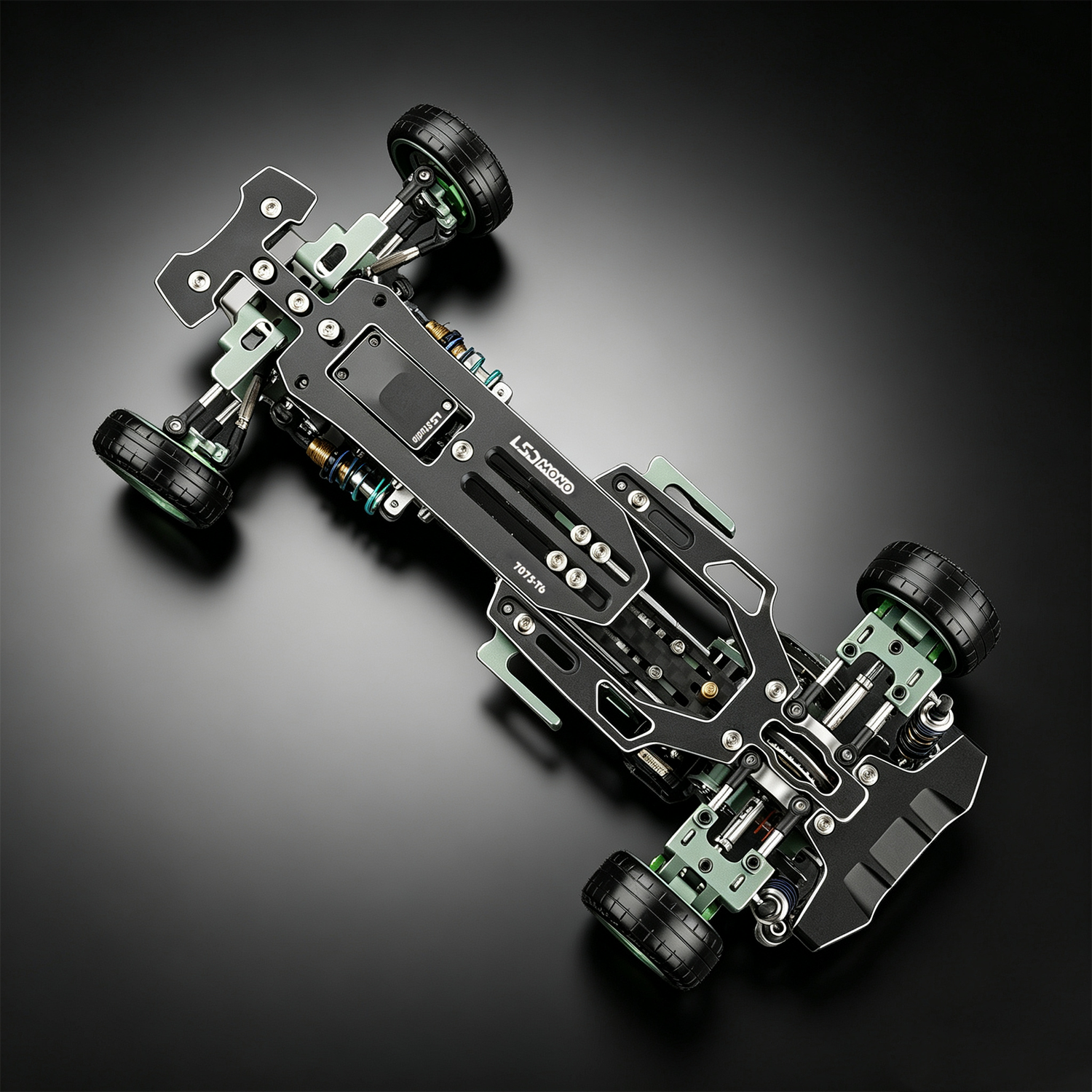

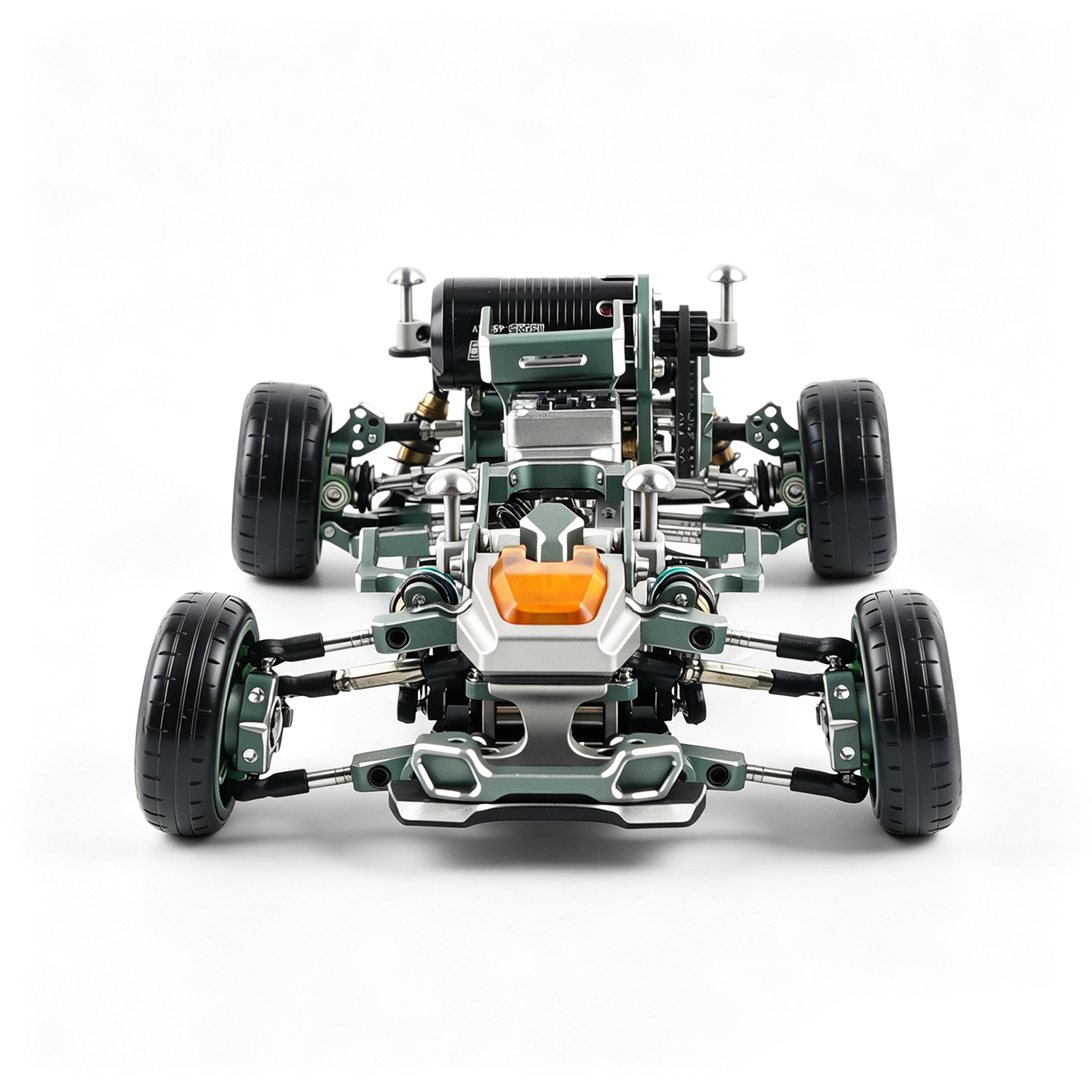

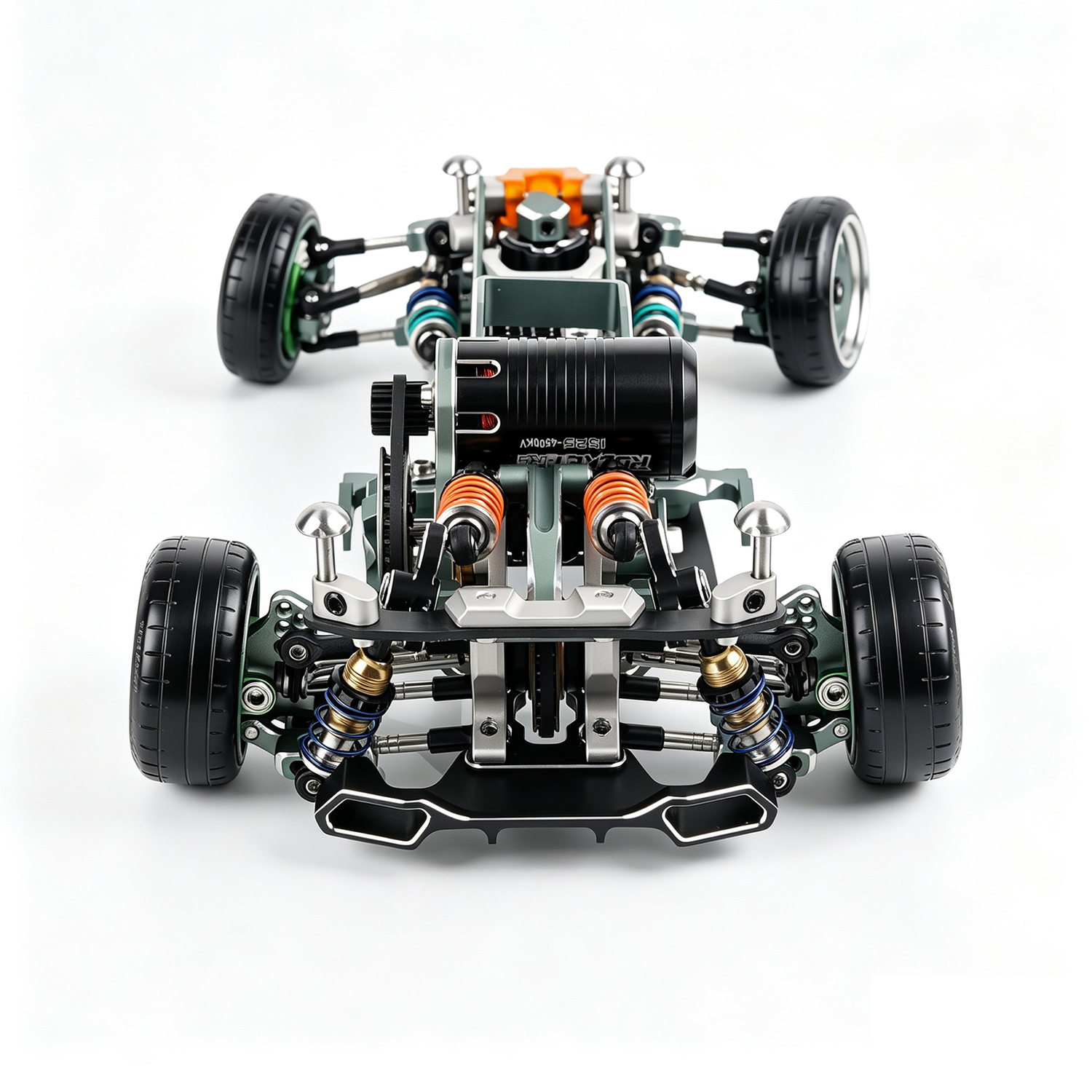

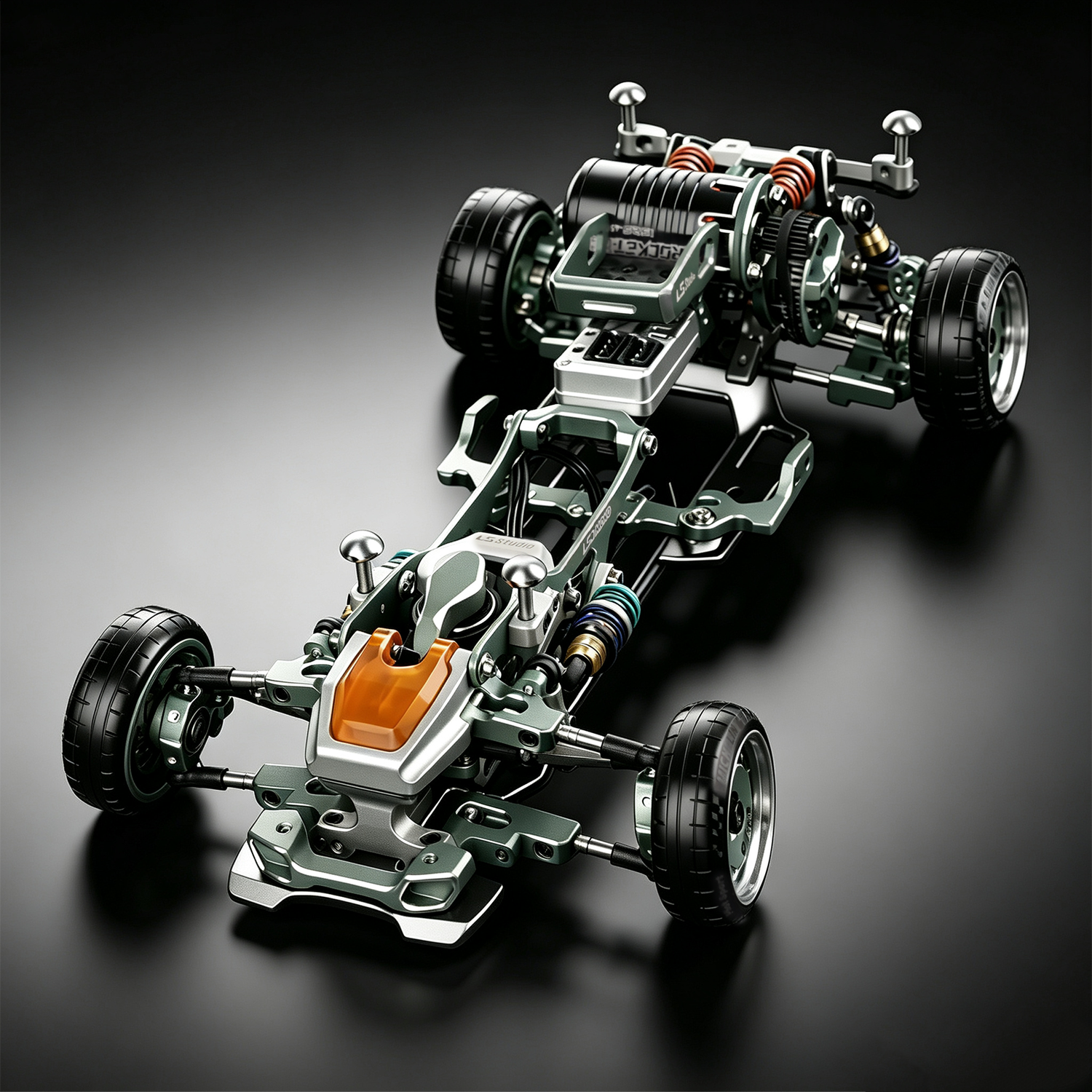

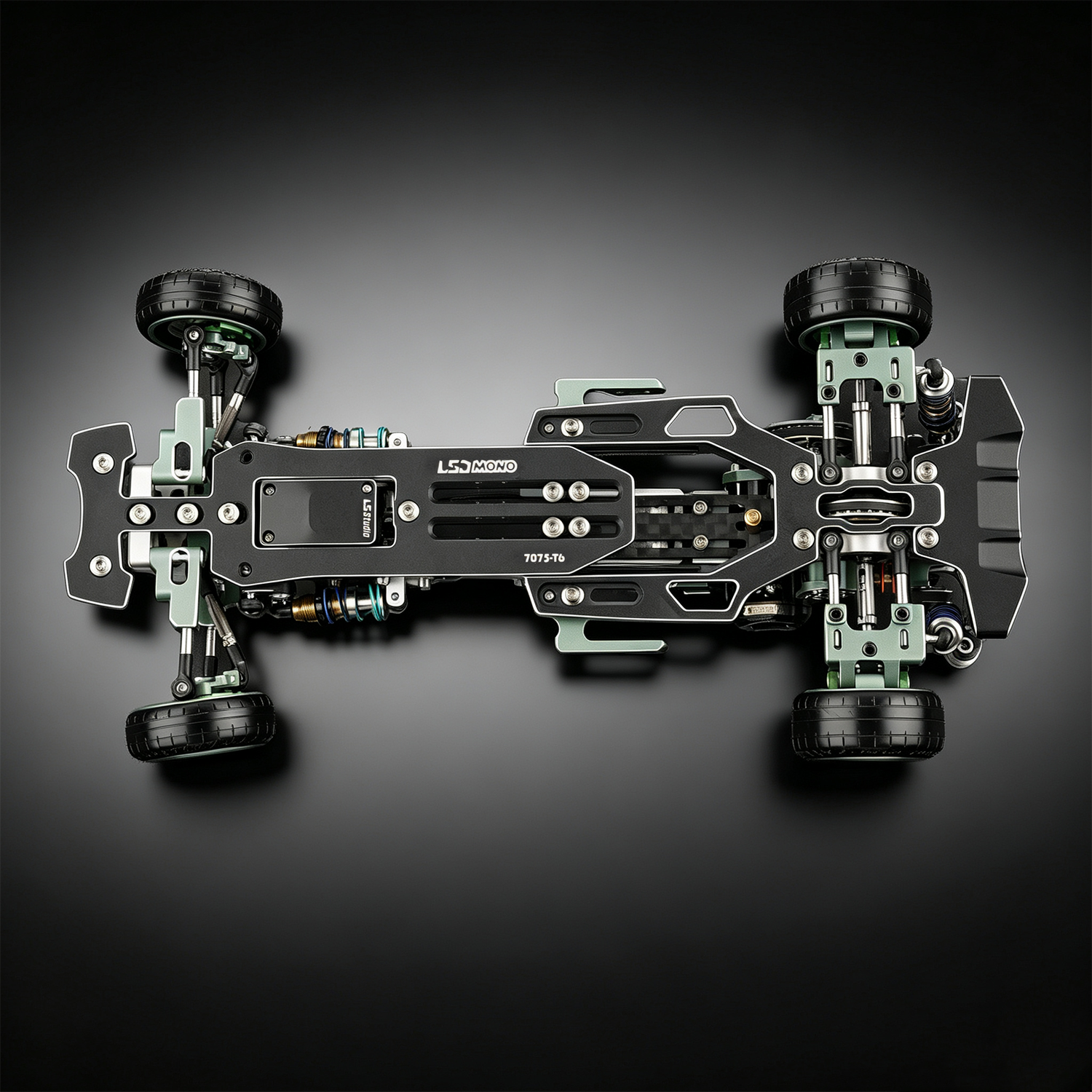

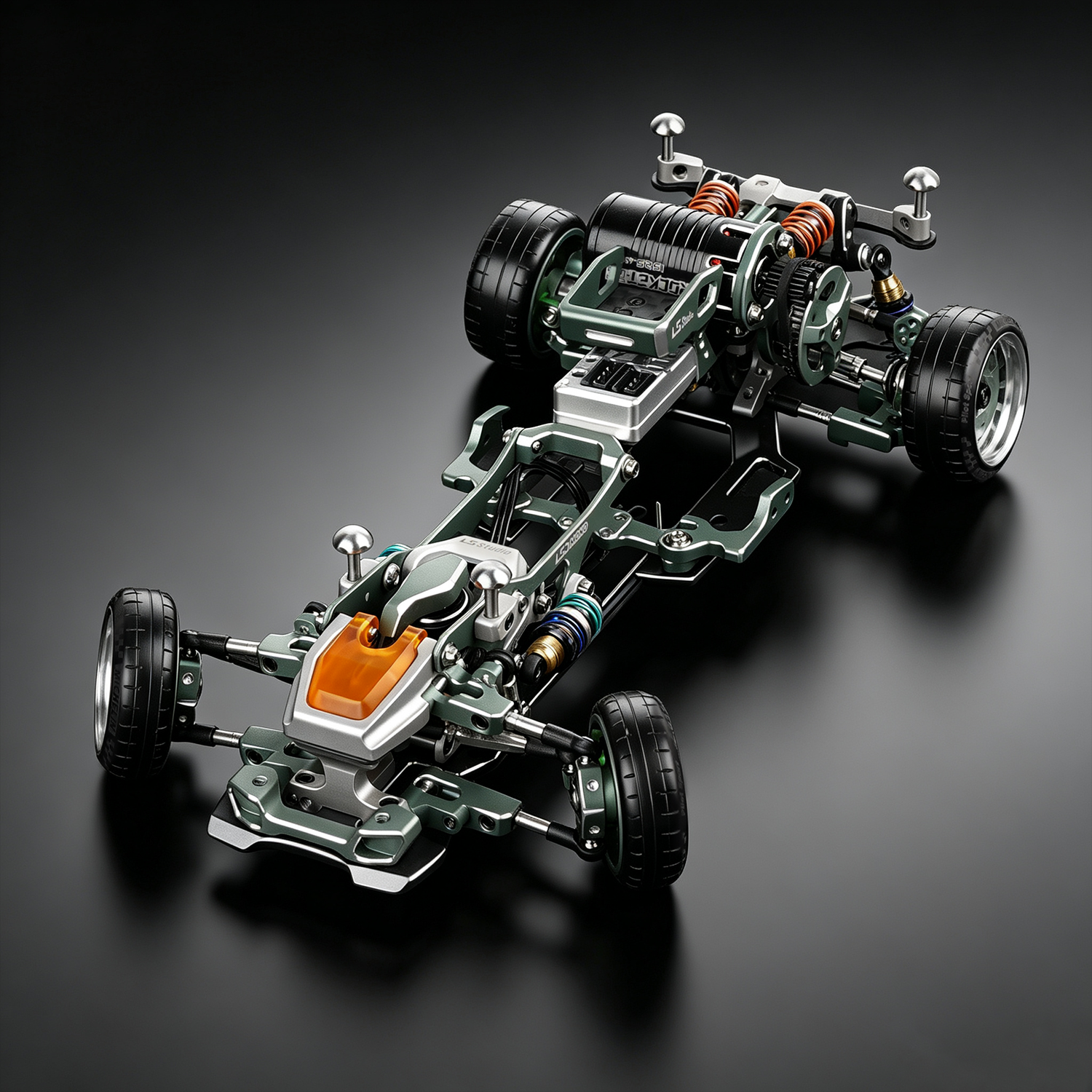

LSD Mono Full OP Version 1/24 Rear-Wheel RC Drift Car Chassis

The LSD Mono comes with all of the OP parts except the screws and bearings. If you need the full OP version, this one is best choice.

Features:
1.In terms of structural design, Mono features a simplified steering system with a direct-drive setup. By adjusting the servo mount’s height, angle, and front-to-back position, users can fine-tune steering characteristics and flexibly adjust the front weight distribution to suit different tuning needs.

2.The suspension system of Mono is compatible with traditional upright shock absorbers, and it also supports the optional horizontal (lay-down) shock setup, a signature of LSD. After multiple generations of refinement, the horizontal suspension has significantly improved in sensitivity and response, providing more direct feedback for precise control.

3.In terms of size and compatibility, Mono offers a wider adjustment range. The wheelbase is adjustable from 90 mm to 114 mm, while the track width ranges from about 67 mm (with 0.5° narrow wheels) to 94 mm (with 3.5° wide wheels).
It also supports optional upgrades such as a magnetic body mount system and the Mini-Z front clip (L-lock) mounting structure, further enhancing compatibility and versatility.

4.In terms of detail design, Mono continues the simulated brake setup from the LSD Plaid. By repositioning the front brake calipers further back, it achieves a more realistic, true-to-life look.
The front knuckle structure has also been optimized, so the calipers no longer need to be paired with the steering cups. This improves overall precision while maintaining a consistent scale appearance.

5.In terms of electronic component layout, Mono offers a wider range of installation options, allowing for greater flexibility and ease in the overall vehicle arrangement. The newly added high-mounted equipment rack (OP) can also be utilized to adjust the vehicle's center of gravity, thereby opening up additional possibilities for tuning.

Specification:
Name:LSD Mono LSDM 1/28 1/24 Chassis
Wheelbase:90mm-114mm
Track width:67 mm (0.5° offset) – 94 mm (3.5° offset)
Color:Khaki green with titanium accents,Black with silver accents
Steering System:Direct-drive steering layout
Adjustable servo mount:Height,Tilt angle,Front/rear position
Supports optional OP horizontal shock system

Package Includes:
1x LSD Mono LSDM 1/28 1/24 Rear-Wheel RC Drift Car Chassis Kit (Green)
1x Rear Laydown Shock Set （Black）    LSDM-OP-01B
1x Metal Rear Diffuser    LSDM-OP-02
1x Magnetic Body Mount Set （Titanium Grey）    LSDM-OP-03T
1x High-mount electronics mount（OD Green）    LSDM-OP-04G
1x Front Laydown Shock Set（Silver）    LSDM-OP-05S
1x Brake Disc & Caliper Set（Titanium Grey）    LSDM-OP-06G
1x Servo Upper Cover （Silver）    LSDM-OP-07S
1x Front Bulkhead Cover （Translucent Green）    LSDM-OP-08G
1x Kyosho Mini-Z Body Mount Kit （OD Green）    LSDM-OP-09G
1x Servo Mount（Green/Grey）    LSDM-OP-10G
1x Ball Differential Set    LSDM-OP-11
1x Motor Mount with Small Wire Organizer（OD Green）    LSDM-OP-12G
1x Metal Chassis Plate    LSDM-OP-13
1x Wheelbase Adjustment Plate（OD Green）    LSDM-OP-14G
1x Battery Retention Clip Set（Black）    LSDM-OP-15B
1x Wire Organizer（OD Green）    LSDM-OP-16G
1x Titanium Turnbuckle Set 4Pairs    LSDM-OP-18
1x Titanium Sleeve-Type Turnbuckle 1Pair    LSDM-OP-19
1x Titanium Ball Studs 32PCS    LSDM-OP-20
1x High-Precision Bearings    LSDM-OP-21
1x Rear Shock Spring Set 3Paris    LSDM-OP-22
1x Shock Set 1Pair    LS-SH-03
1x Dual-Rate Springs     LS-SP-03
1x Servo Bottom Cover （For AFRC or AGFRC）    LS-SVO-OP

Recommend Coponents:

AFRC D2114TG-S 11g All-Metal Servo   (optional)
ARKEDGE RC AG-4 GEN2 Bluetooth Drift Gyro   (optional)
ROCKET-RC 1525 Sensored Brushless Motor and 30A ESC Combo (optional)
MABILIS AeroDisc Wheel Rims 20mm for RC Drift Car (optional)

Note: Electronic components , car shell, Radio and receiver, batteries and are not included.
