Radiolink  |  SKU: LA0285

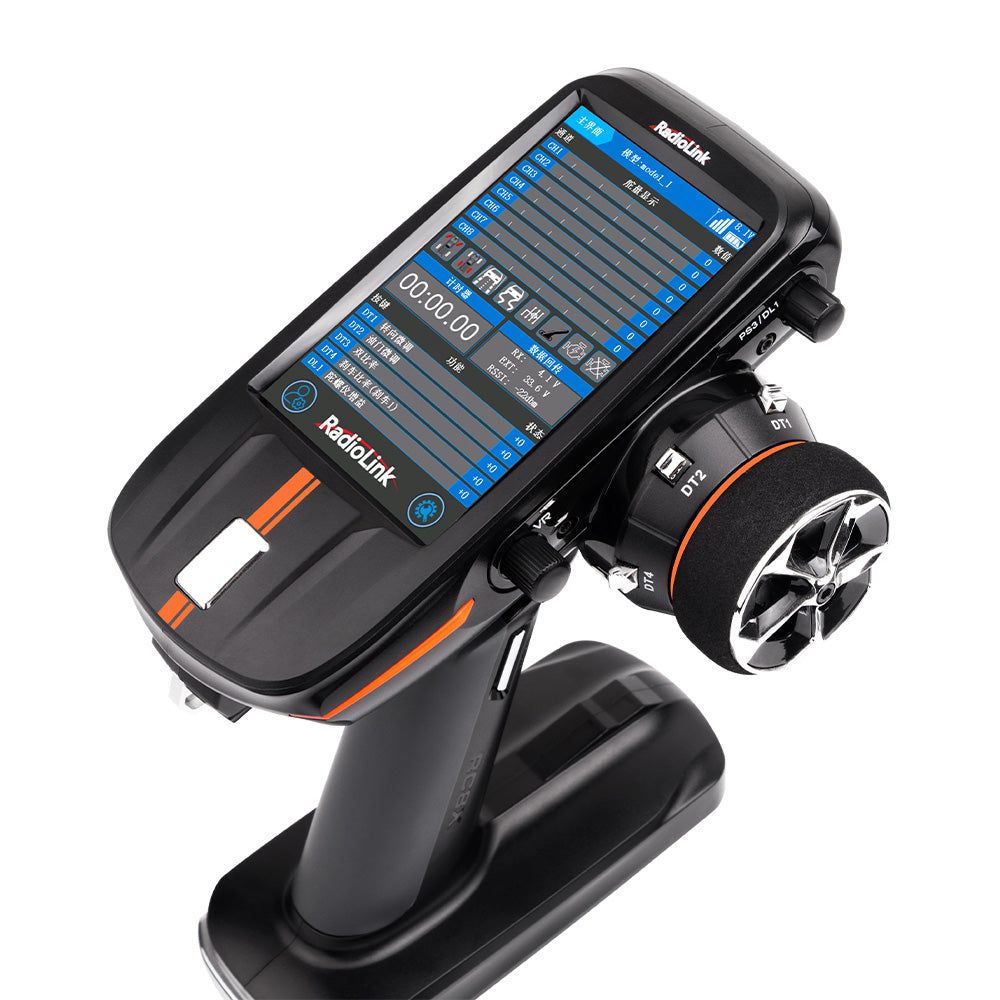

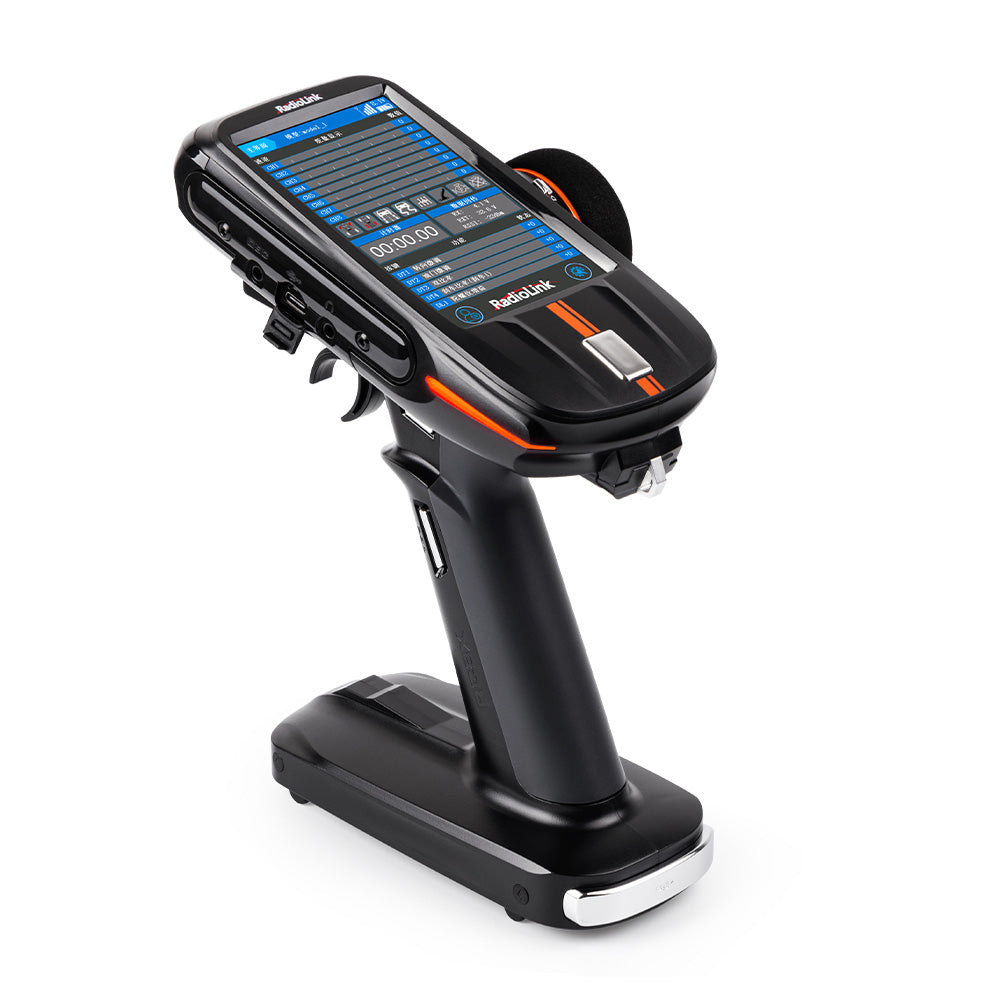

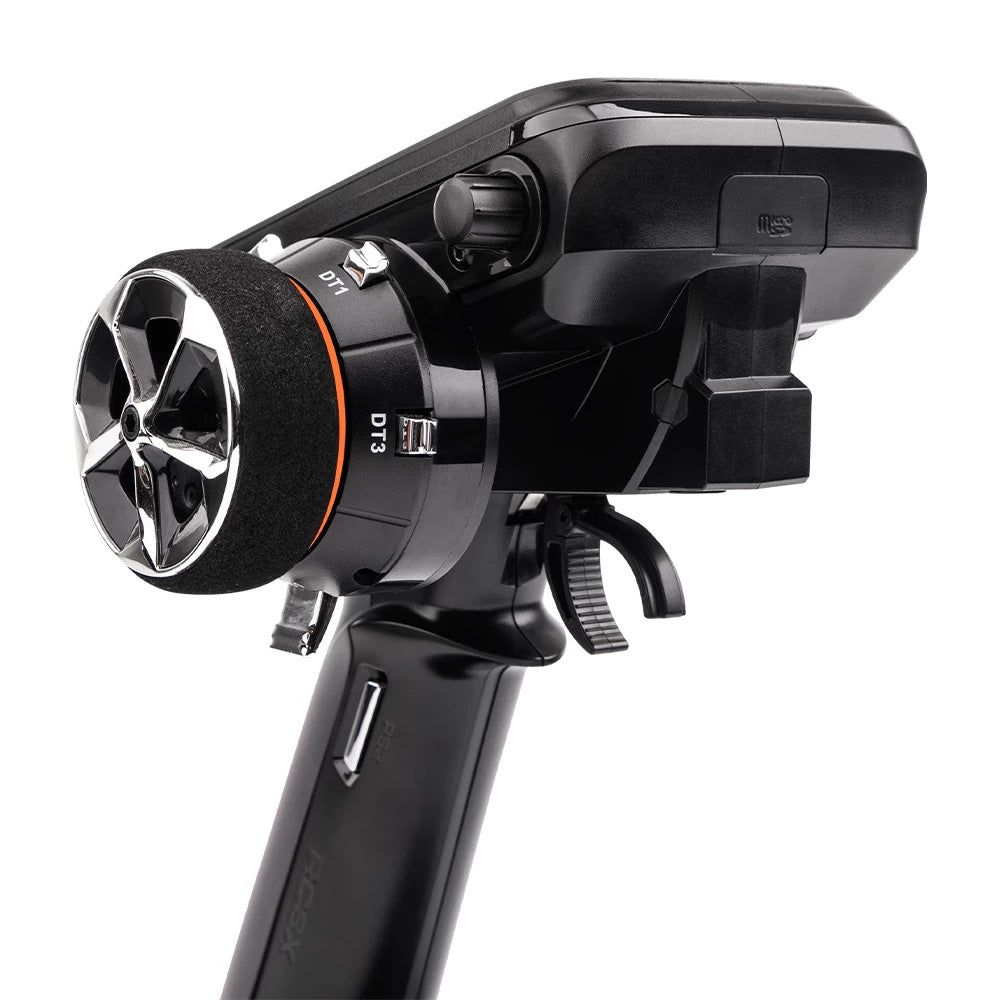

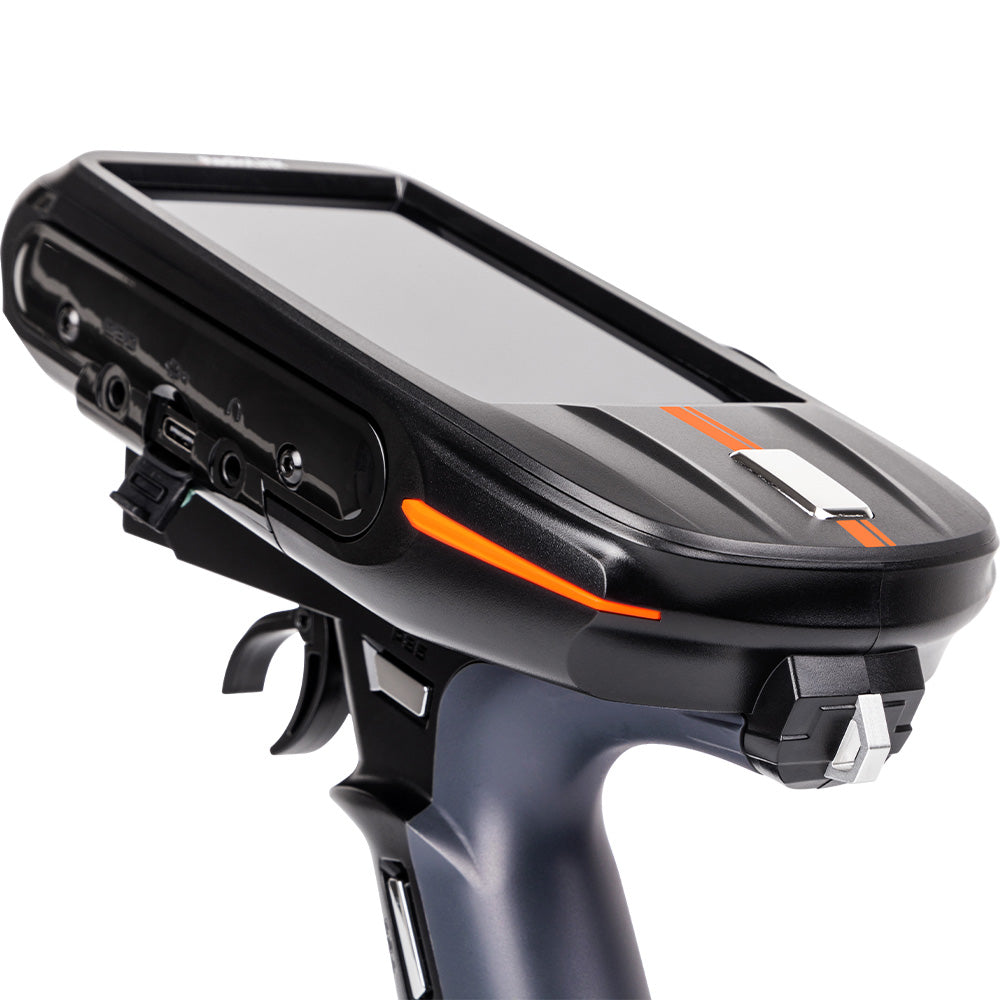

Radiolink RC8X 8CH Transmitter with R8FG RX 4.3 inch LCD Touch Screen Radio for RC Car Boat Robot

$249.99


2022 New Arrival Radiolink 8CH RC8X Transmitter and R8FG 8 Channels Receiver, 4.3 inch Full Color LCD Touch Screen, for RC Car RC Boat and RC Robot.

Main Features:
  • 8 Channels
  • 4.3 Inches Full Color LCD Touching Screen
  • Support voice customization on all functions
  • Rich Audio and Video Interfaces
  • One Screen Dual Use
  • 200 Groups Models Storage
  • 8 Groups Programmable Mix Control
  • 16 Groups ID seed
  • Compatible all previous receivers R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F
RADIOLINK 8CH RC8X Transmitter for rc CARRADIOLINK 8CH RC8X Transmitter for rc CARCAR RADIORADIOLINK 8CH RC8X RC Radio for rc CARRADIOLINK 8CH RC8X RC Radio for rc CARrc transmitter for carcar radioRADIOLINK 8CH RC8X RC Radio for rc CAR

RC8X Specifications:
  • Item Brand: Radiolink
  • Model Type: RC8X
  • Channels: 8 channels
  • Screen: 4.3 inches, 800*480 dot matrix, full-color, capacitive LCD touch screen
  • Working Voltage:7~15V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery)
  • Working Current: 290mA±10mA@8.4V(the LCD screen light on); 200mA±10mA@8.4V(the LCD screen light off)
  • Model Storage: 200 models memory
  • Control Range: 600 meters on ground
  • Program Mix: 8 groups program mixes
  • ID Seed: 16 groups
  • Voice Broadcast: Support, and all the operating can set alarm with voice broadcast, buzzer, or vibration
  • Menu Customized: Setting Menu, font, desktop, system theme, etc
  • Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized
  • CRSF Protocol : Support TBS Crossfire
  • FPV Head Track Function: Support
  • Training Function:Support
  • Simulator: Support
  • Headphone: Support, 3.5 mm Jack
  • Extended Memory: Up to 64GB
  • Language: Chinese, English and other
  • Upgrade: USB online upgrade
  • Transmission Power: <20dBm
  • Channel Resolution: 4096 with regular jitter of 0.5us
  • Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
  • Modulation Mode: GFSK
  • Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
  • Applicable Model: RC Car(Including Crawlers/Tanks/Caterpillars)/Boat/Robot
  • Compatible Receiver: R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

R8FG Specifications:
  • Channel: 8 channels
  • Operating Voltage:3-12V
  • Operating Current: 30mA
  • Signals: PWM/ SBUS&PWM/ PPM&PWM
  • Telemetry: Real-time built-in telemetry of model battery voltage(up 33.6V, 8S Lipo), RSSI, and receiver voltage
  • Gyro: Receiver with gyro integrated, customizable gyro sensitivity
  • Water Splash Proof: Yes, the waterproof grade is IPX4
  • Control Distance: 600 meters
  • Weight: 10.5g(0.37oz)

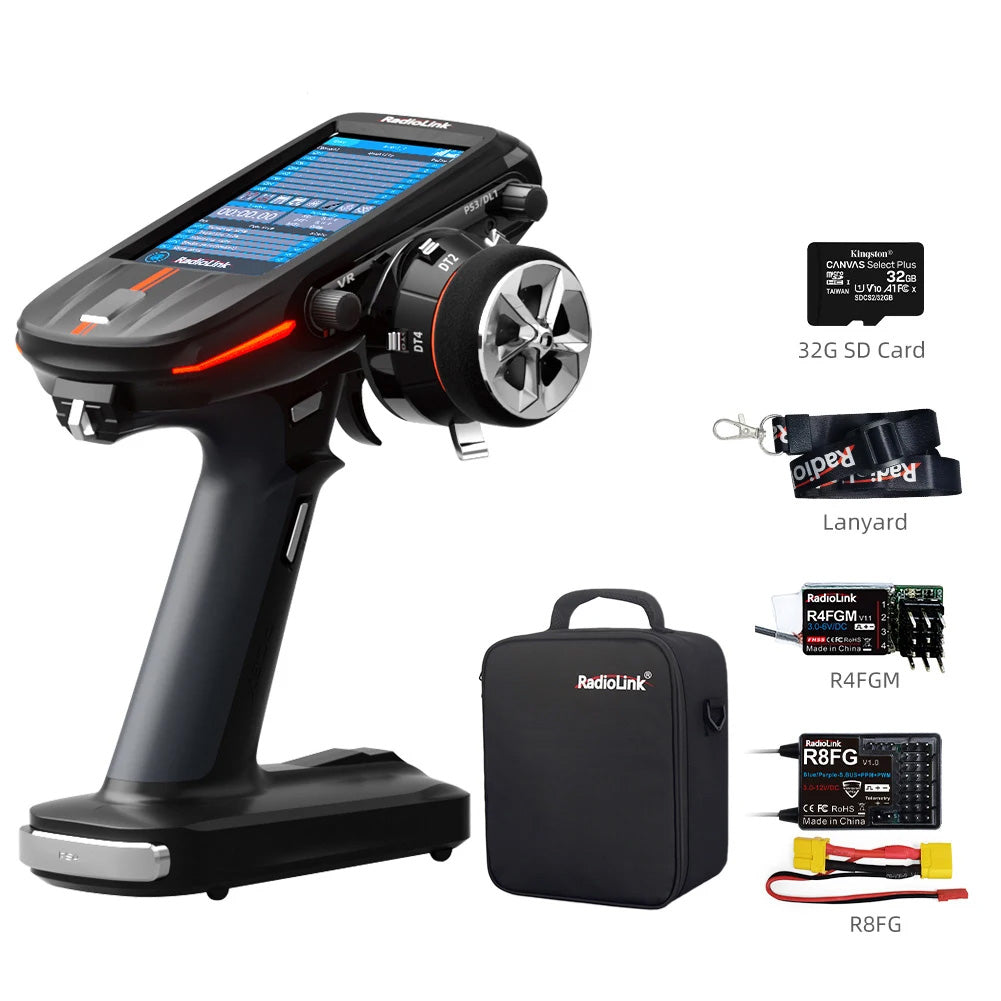

Package List:
  • Radiolink RC8X radio x1
  • Radiolink R8FG receiver x1
  • XT60 telemetry cable x1
  • Neck lanyard x1
  • 32GB SD card x1
  • USB cable(type-c port) x1
  • Throttle trigger replacement x1
  • Screwdriver x1
  • User manual x1
