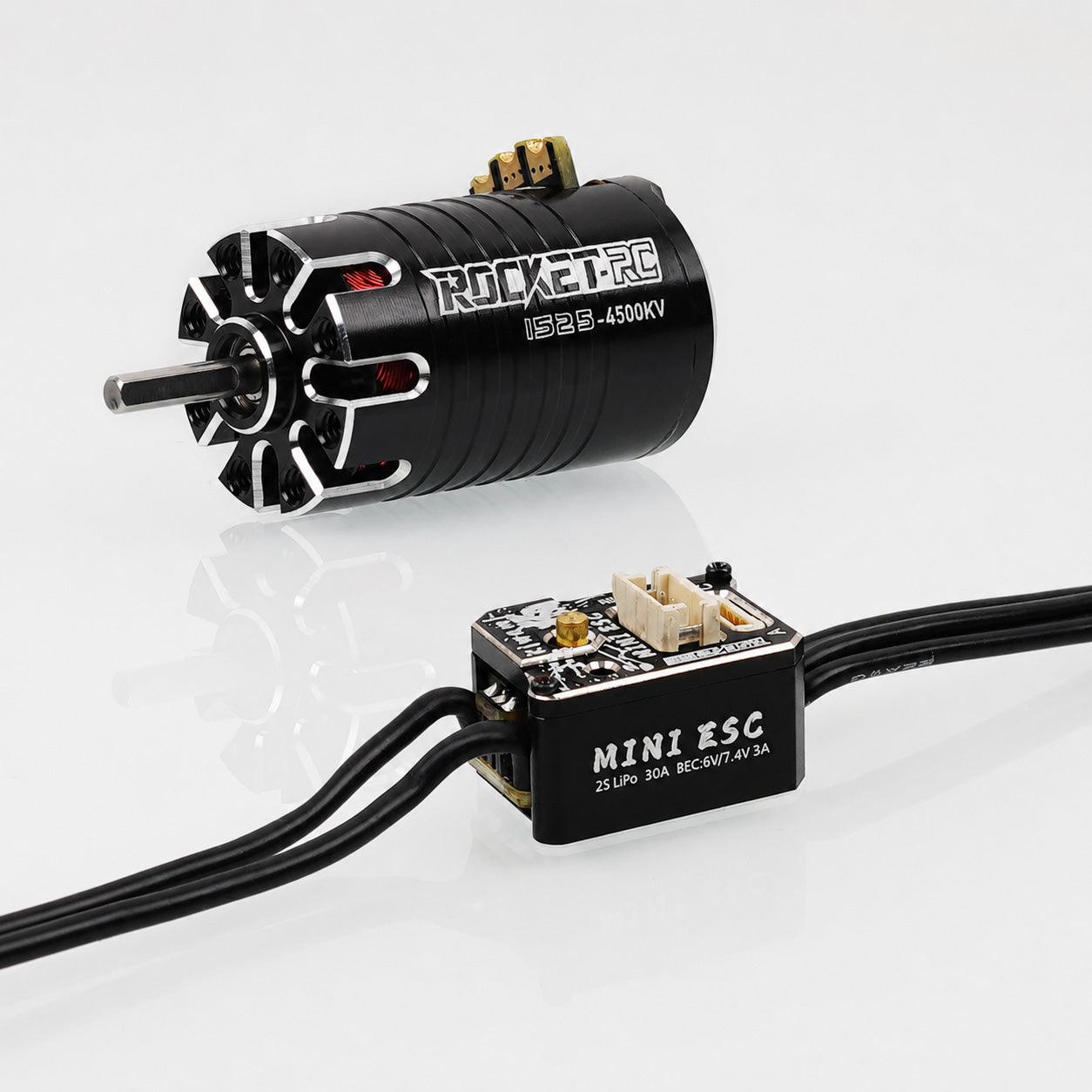

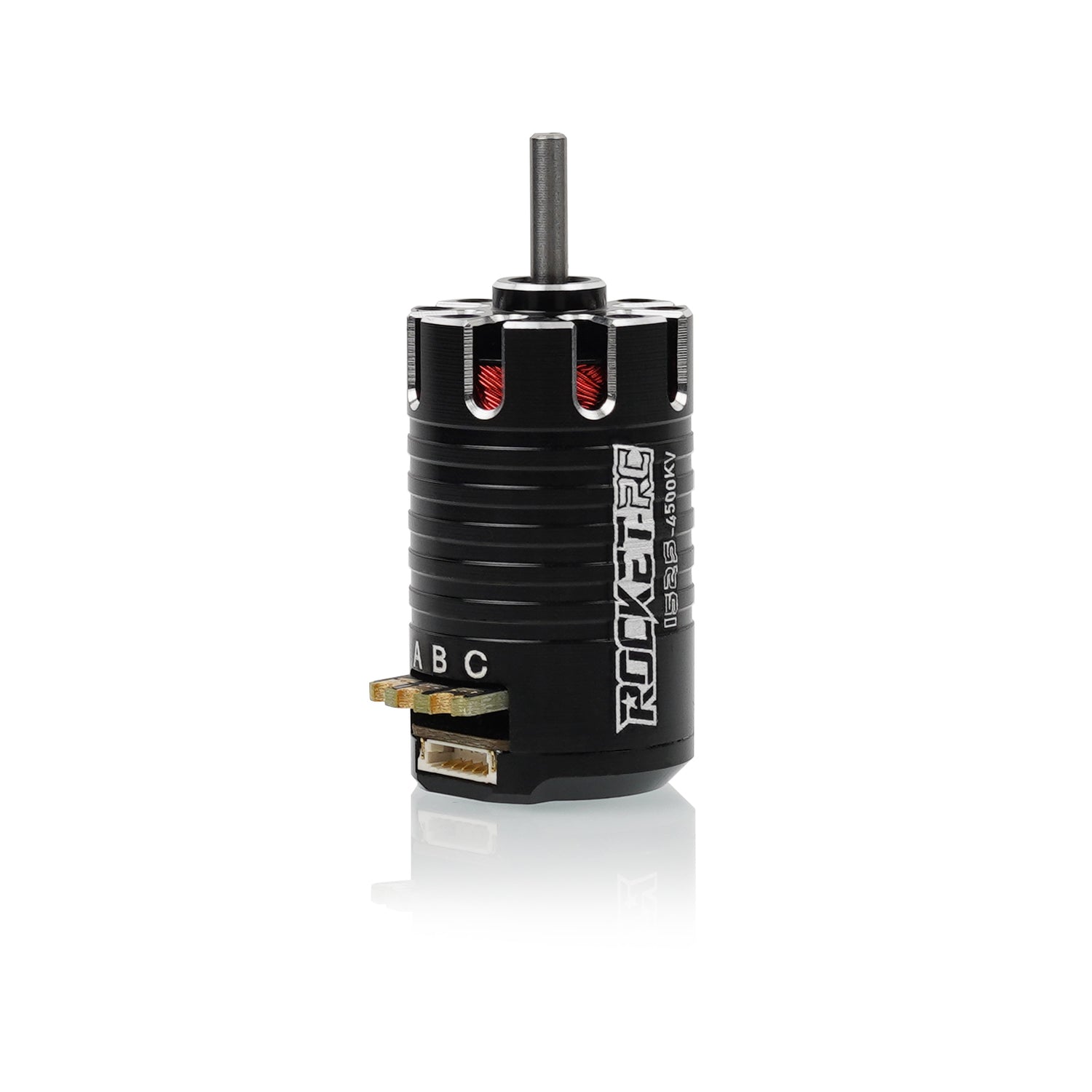

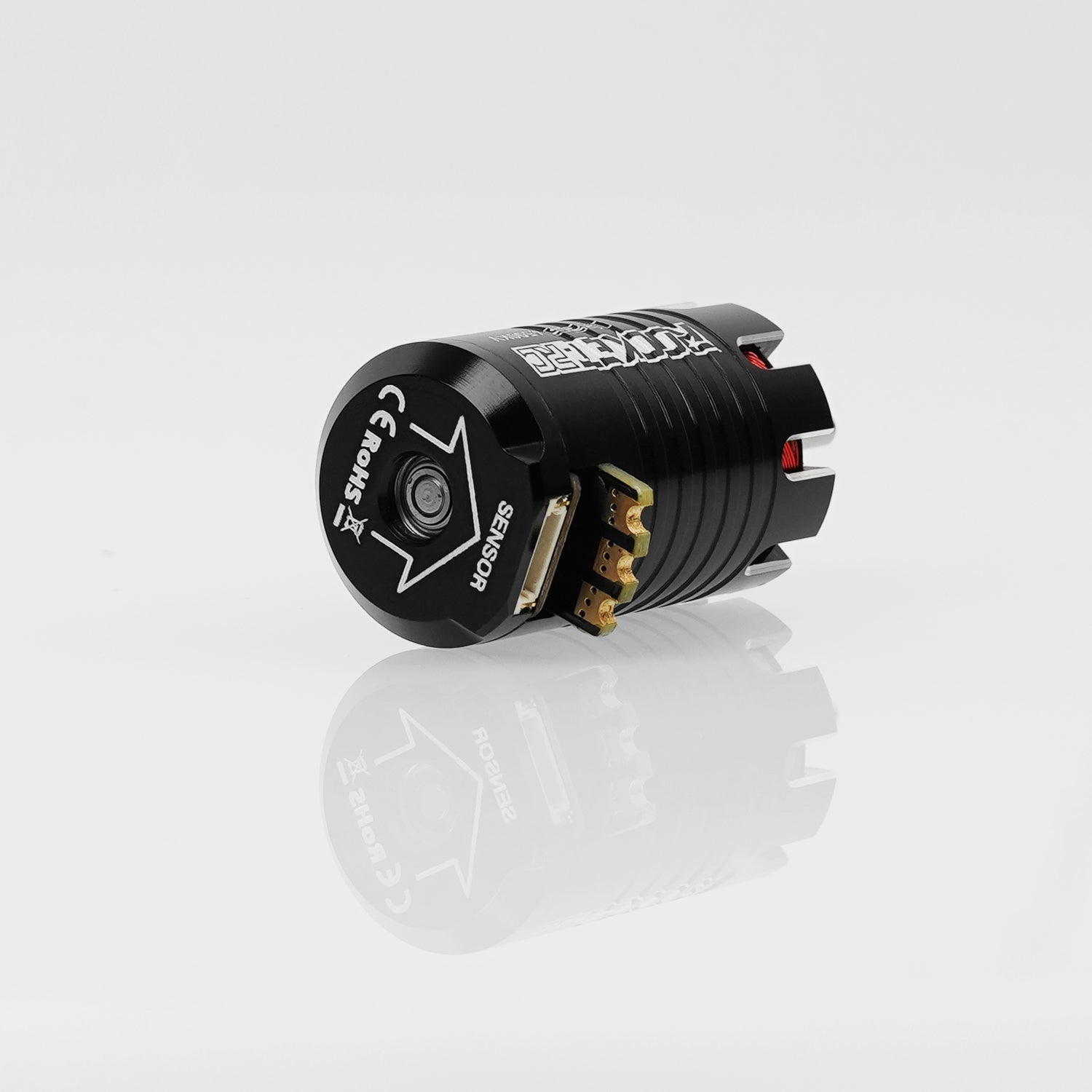

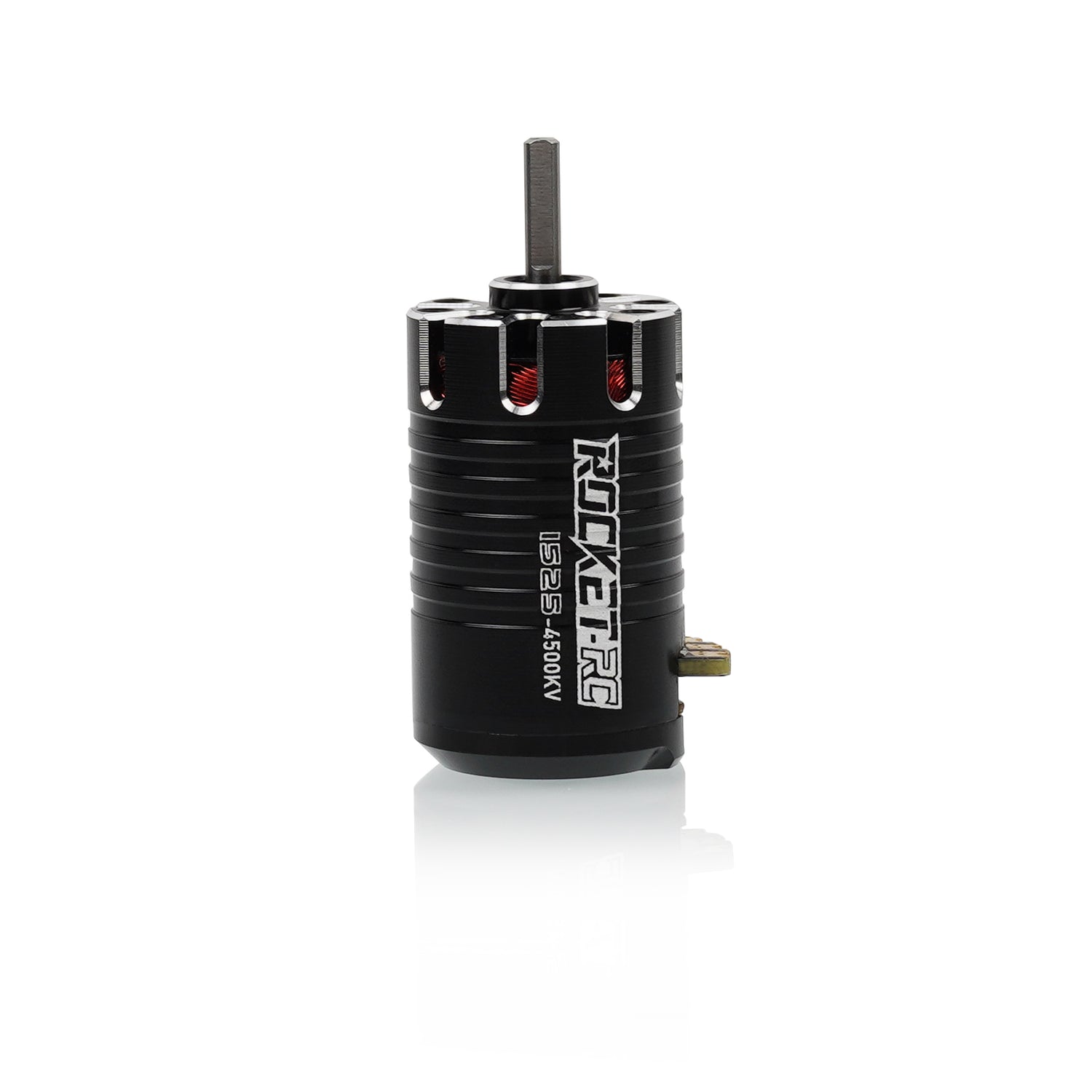

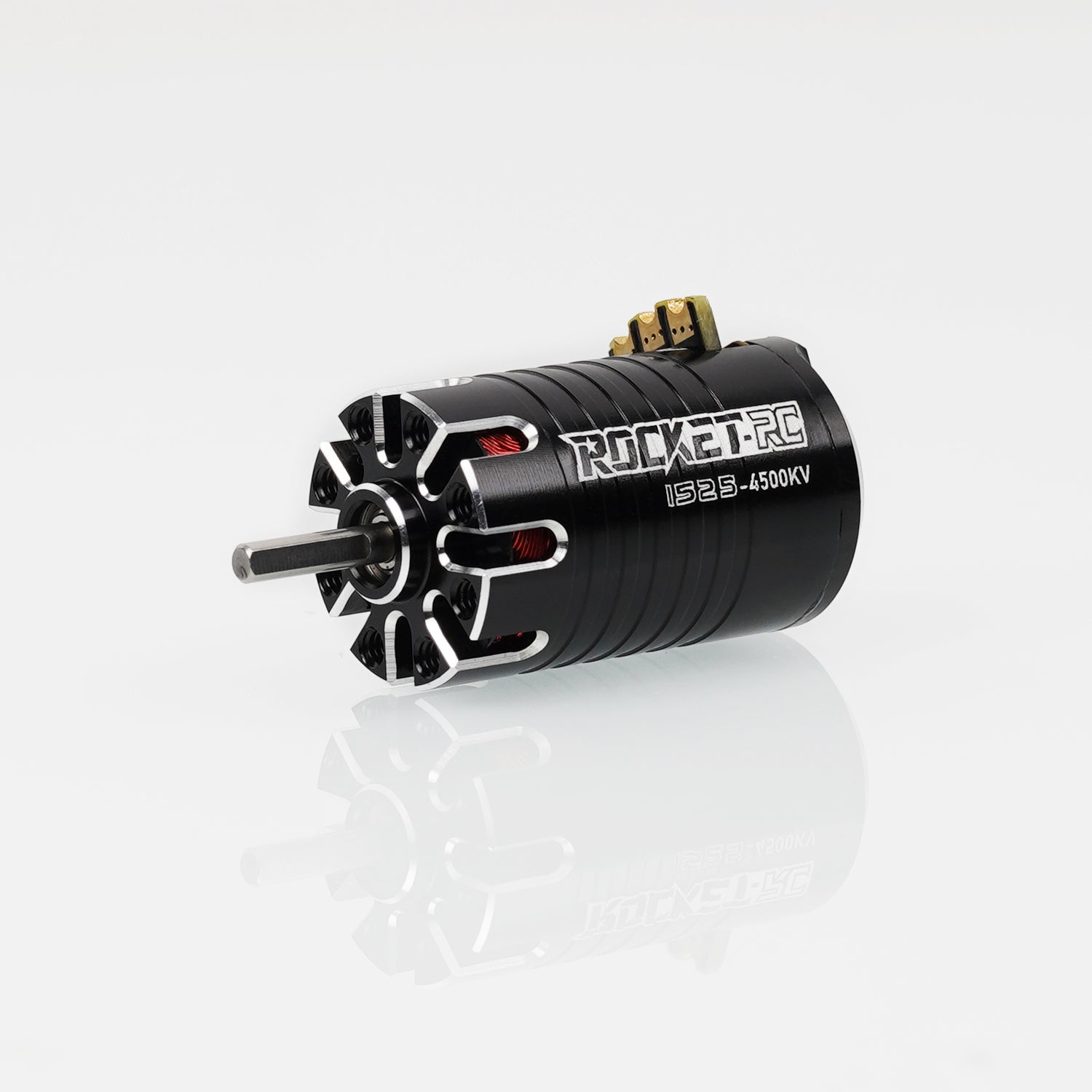

SURPASS HOBBY ROCKET-RC 1525 Sensored Brushless Motor and 30A ESC Combo for Mini-Z Mini-Q 1/28 1/32 RC Car
Features:
Aluminum alloy front-end integrated casing design, high-speed operation, stable and reliable
2-Pole linear high-speed, high-temperature stable Rotor
NSK Japanese bearings for smooth, high-speed runs.

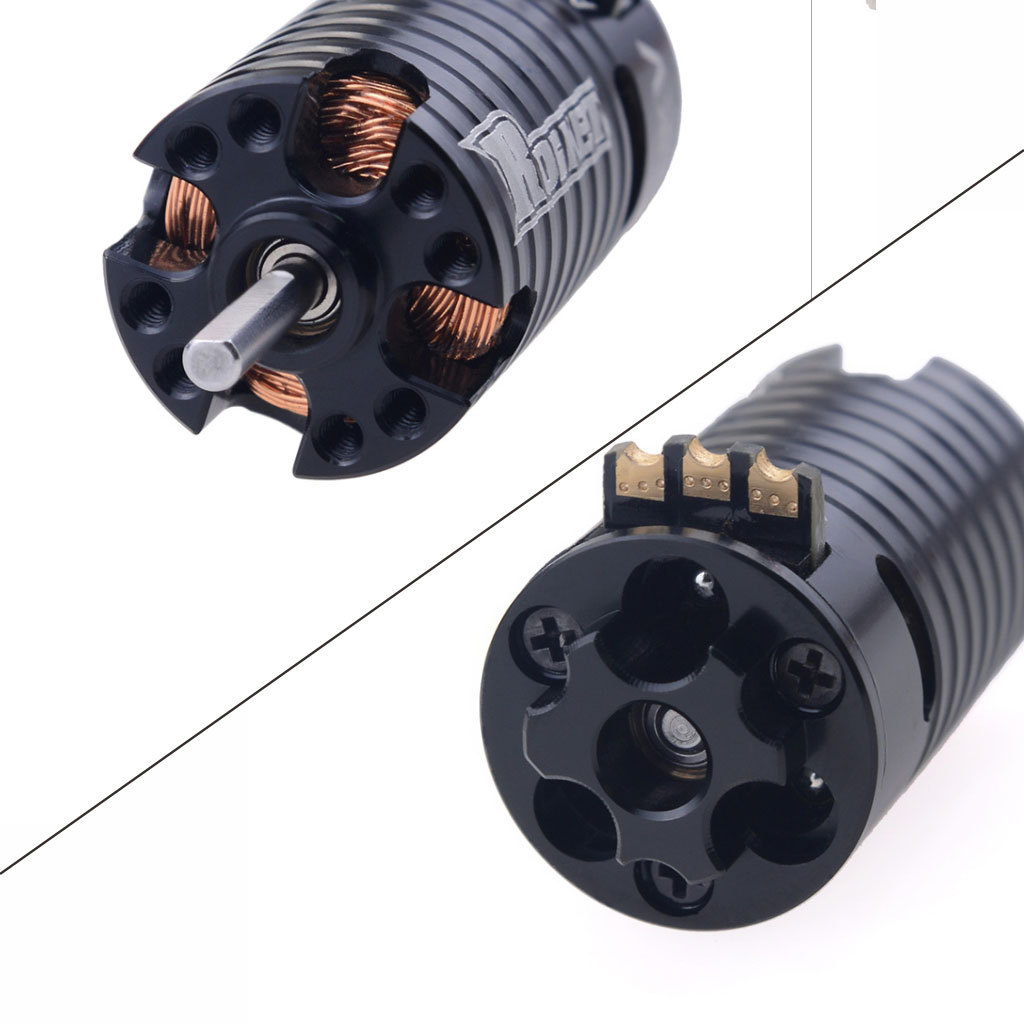

8 Motor Mounting holes for M2.0 Screws
Unique sensored and sensorless dual compatible startup mode
Industry standard sensor port (5-pin - 0.8 Terminal) is connected with the sensor cable
Specifications:
Motor:
Series: 1525 (Designed for 1/28 & 1/24 Cars)
Color: Blue
Kv: 3500, 4500, 5500 & 6800
Watt: 80
Max RPM: 60,000
Maximum voltage: 2 Cell LiPo | 8.0v-8.4v
Max amps: 3500Kv (8A), 4500Kv (9A), 5500Kv (10A), 6800Kv (12A)
Rotor poles: 2
Diameter: 15mm
Length: 25mm
Mounting Screws: 2mm
Shaft: 2.0mm
Shaft length: 10mm
Connector: Solder Tabs
Weight: 17g
Package Includes:
1x SURPASS 1525 Sensored Brushless Motor

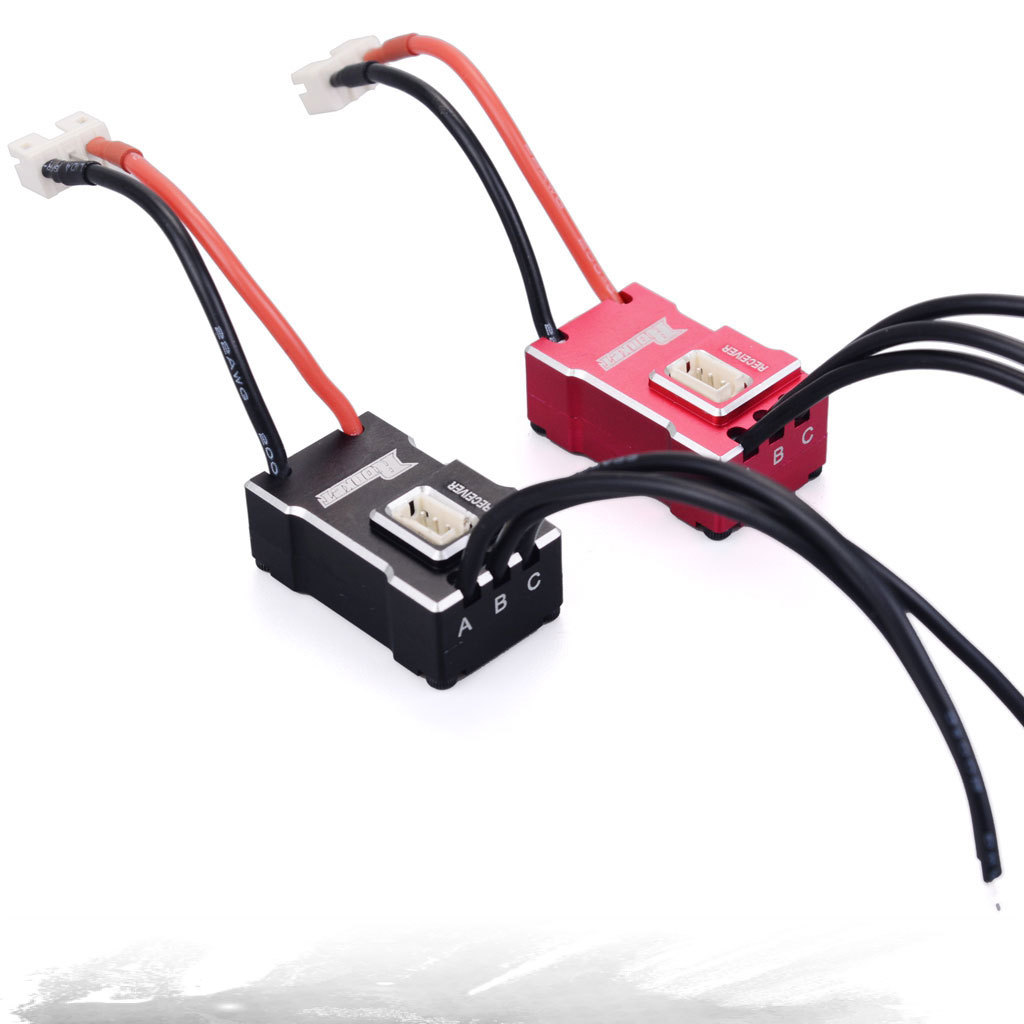

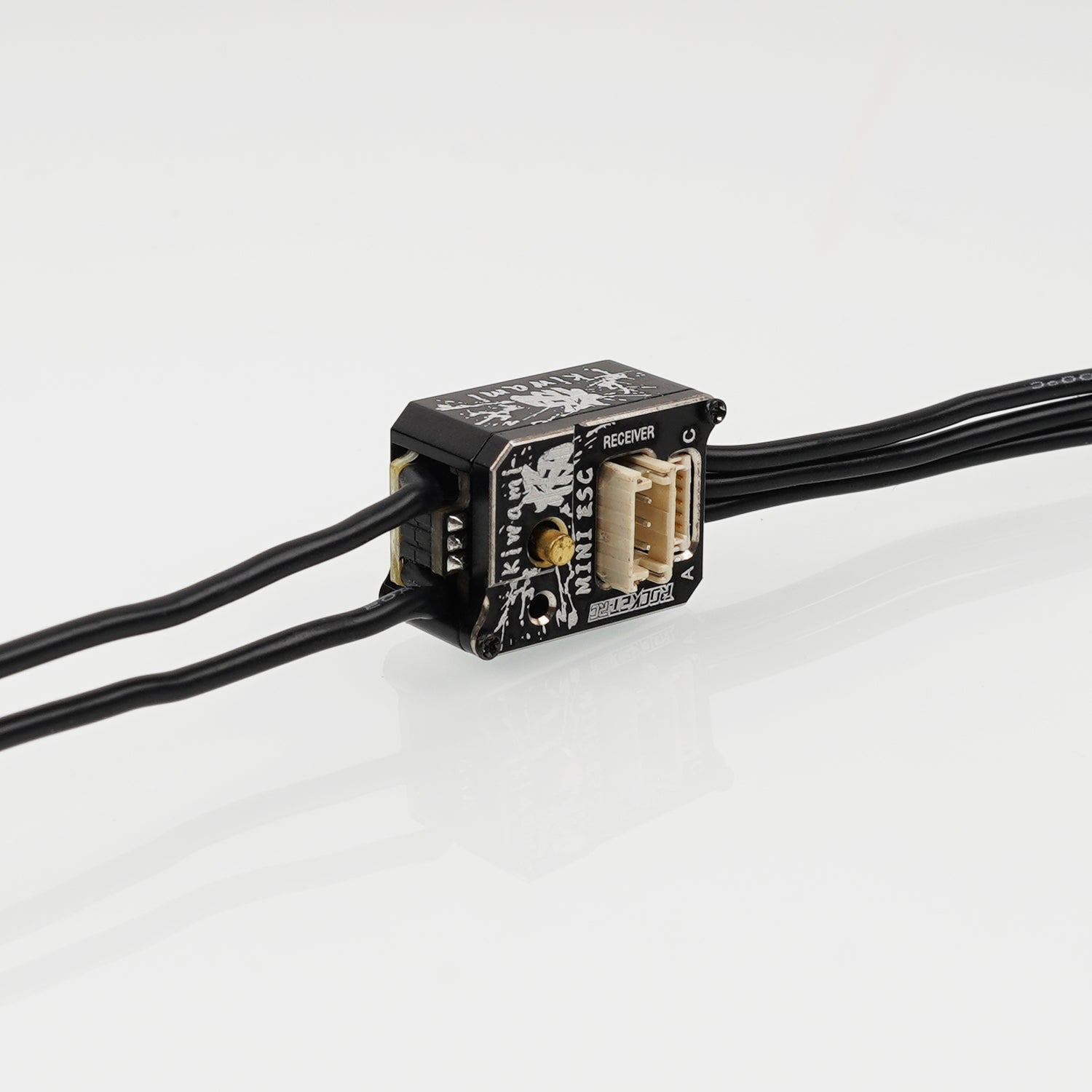

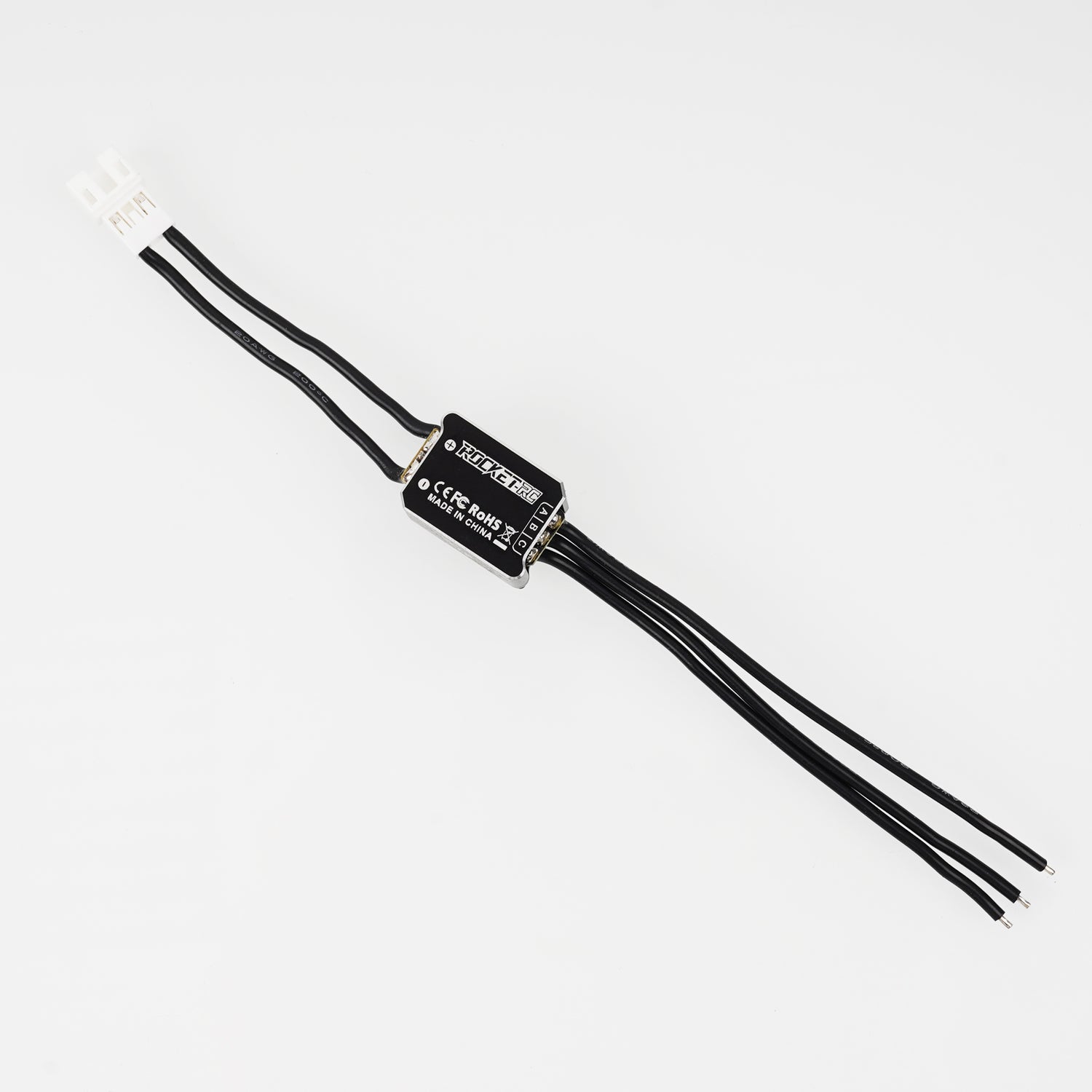

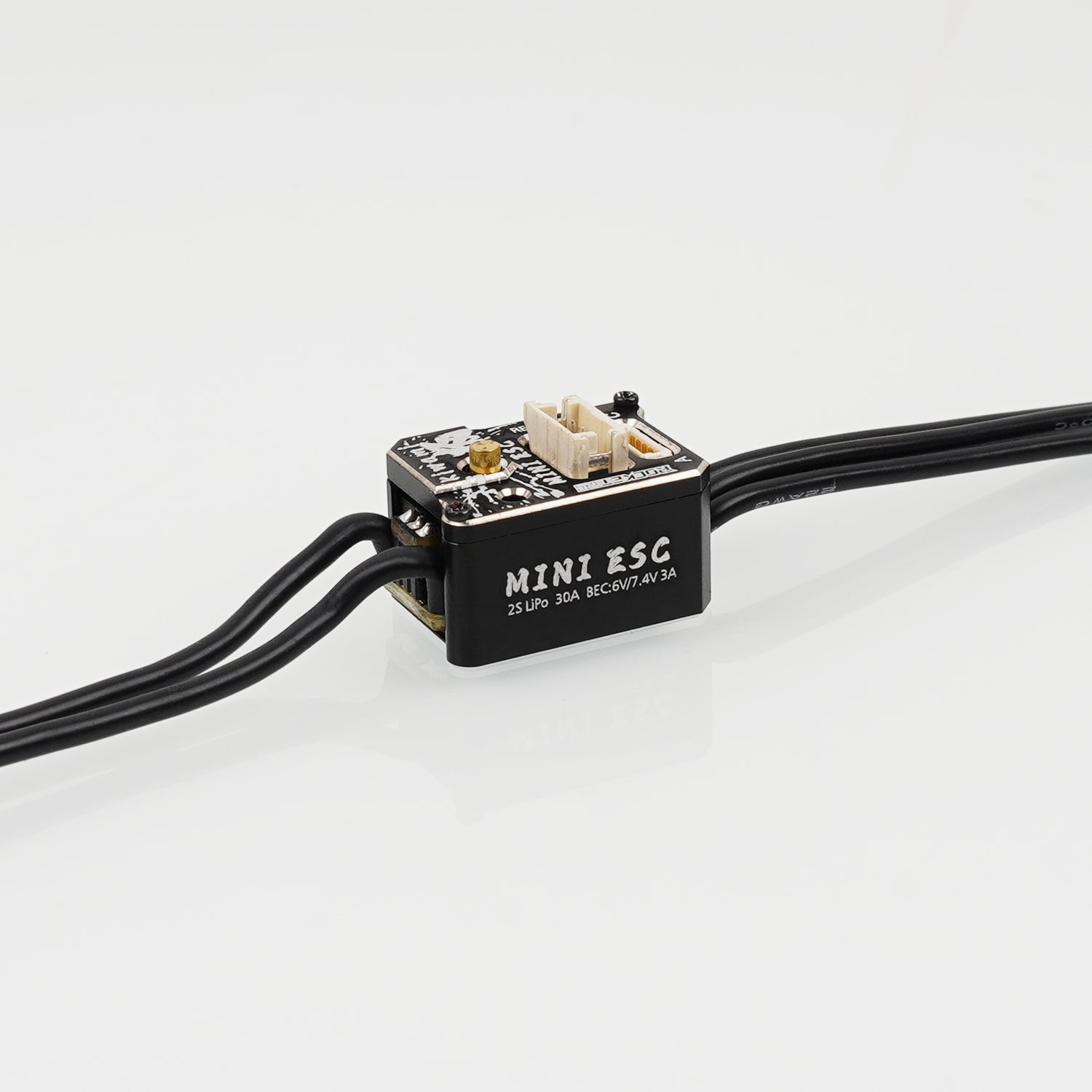

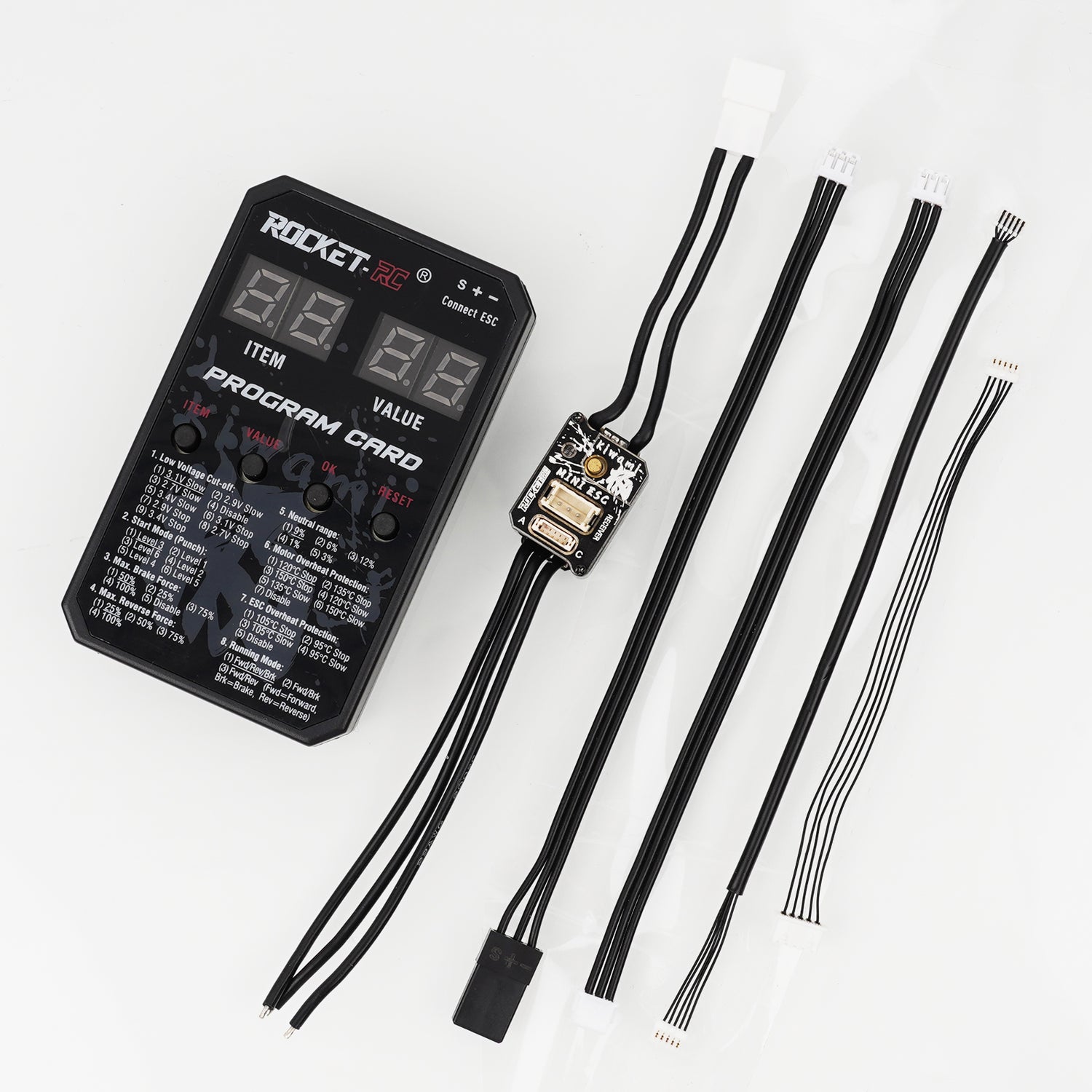

1x SURPASS 30A ESC
