TATTU  |  SKU: QA0176

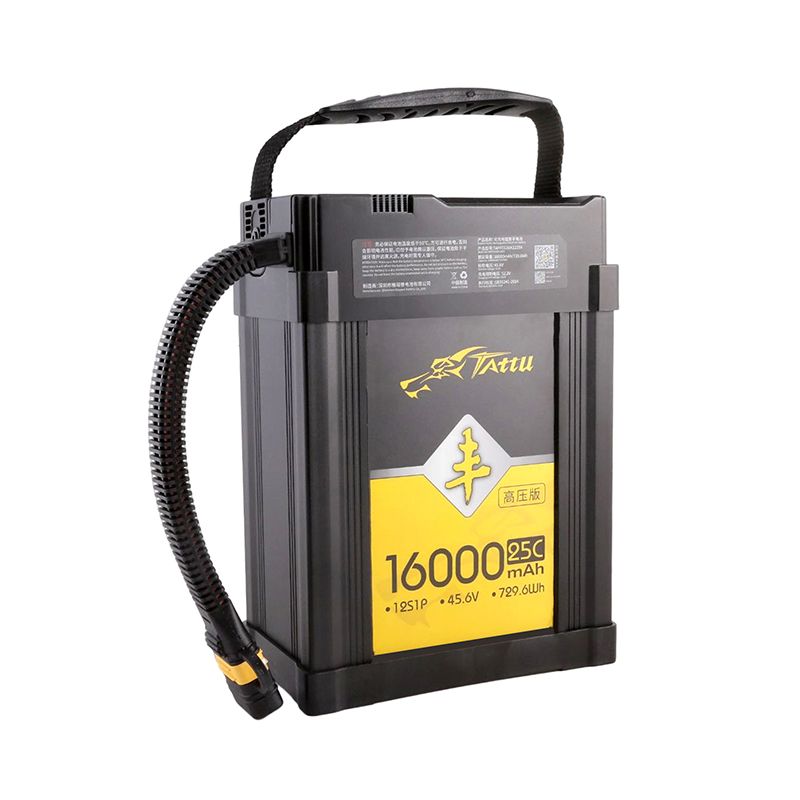

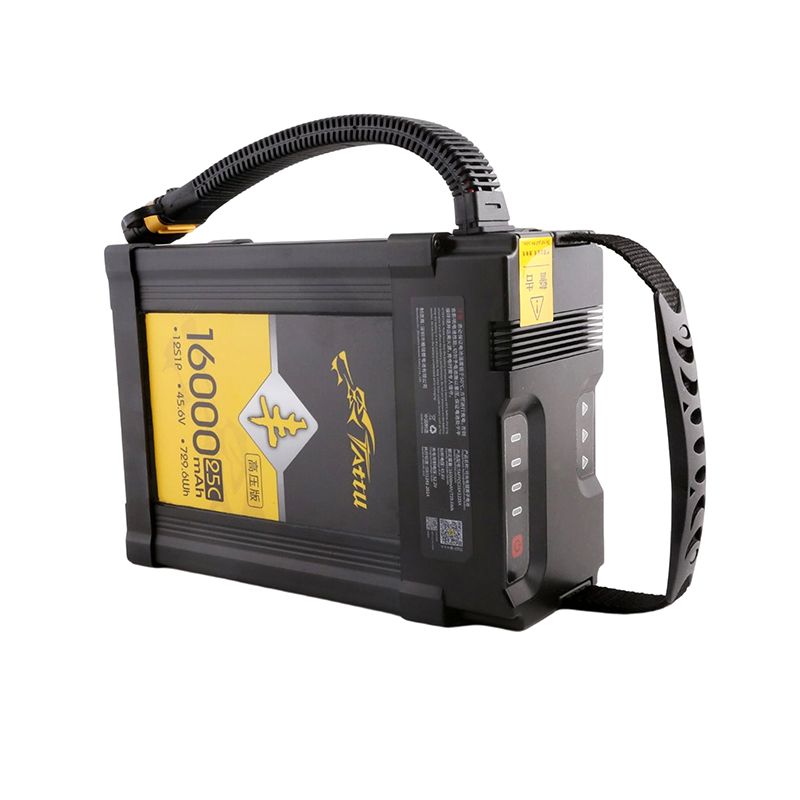

Tattu HV Feng Series 12S1P 45.6V 16000mah 25C Lipo Battery with AS150U Connector

$351.00 $589.00


Tattu HV Feng Series 12S1P 45.6V 16000mah 25C Lipo Battery with AS150U Connector

Specification:
Model: Tattu HV Feng Series 12S1P 45.6V 16000mah 25C
Number of cells: 12S1P
Brand: TATTU
DStandard capacity: 16000mAh(0.2C,4.35-3.0V@23±5℃)
Minimum capacity: 15580mAh @ 0.2C discharge
Standard voltage: 45.6V
Shipping voltage: 45~46.8V (Cell 3.75~3.9V)
Internal impedance: ≤18mΩ
Dimensions: Length: 90*163*224mm
Weight: approx.: 4550g±150g

Charging:
Charging mode: CC-CV
Charging upper limit voltage: 52.2V
Standard charging current: 0.2C
Fast charging current: 2C

Discharge:
Discharge mode: DC
Discharge end voltage: 36V@0.2C, 39.6V@2C
Standard discharge current: 0.2C
Maximum sustained discharge current: 90A
Peak current: 150A

Package Includes:
1x Tattu HV Feng Series 12S1P 45.6V 16000mah 25C Lipo Battery
