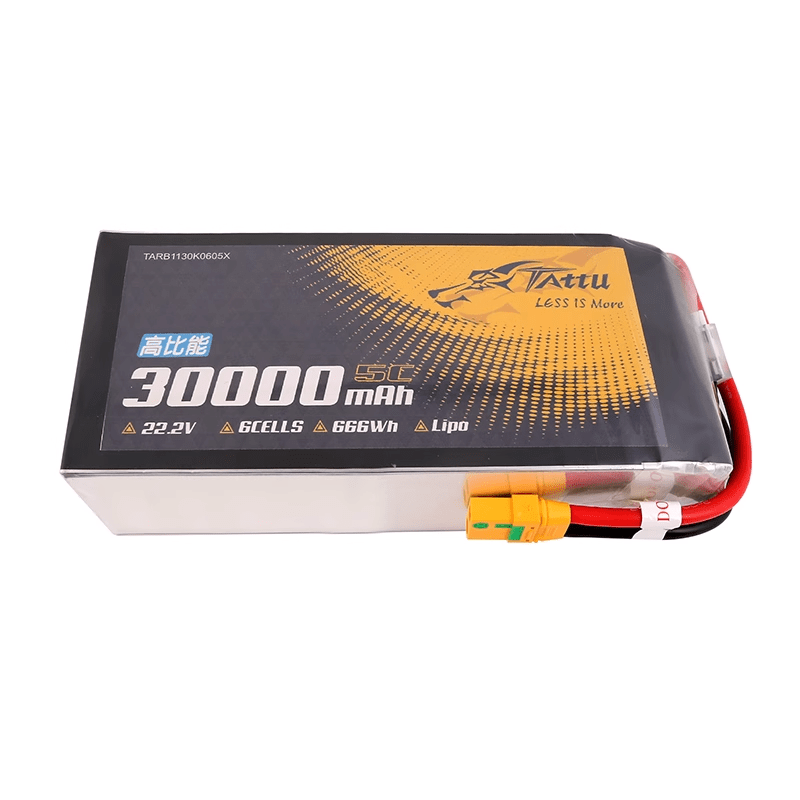

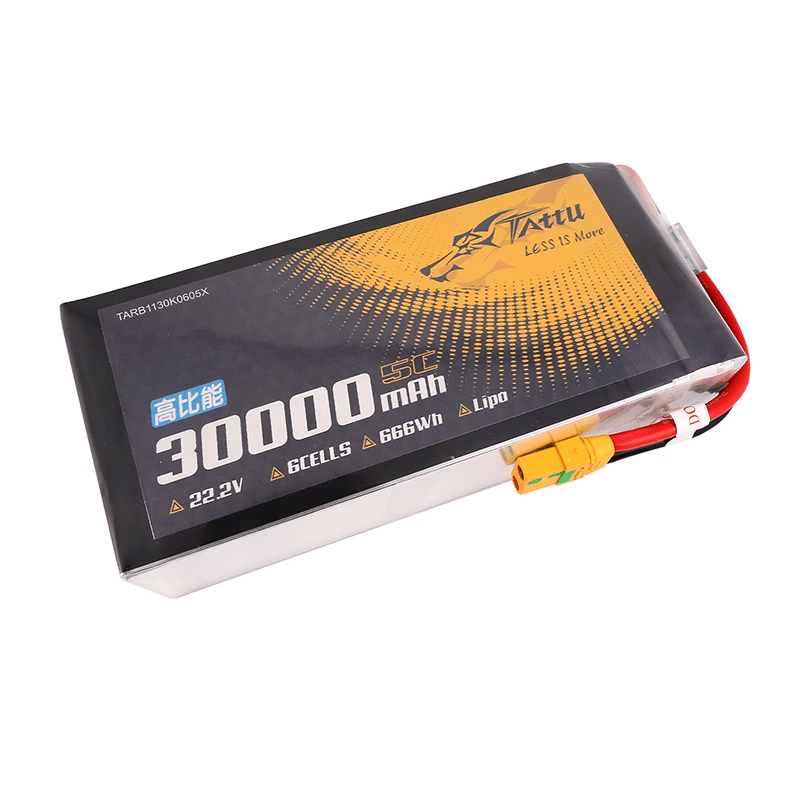

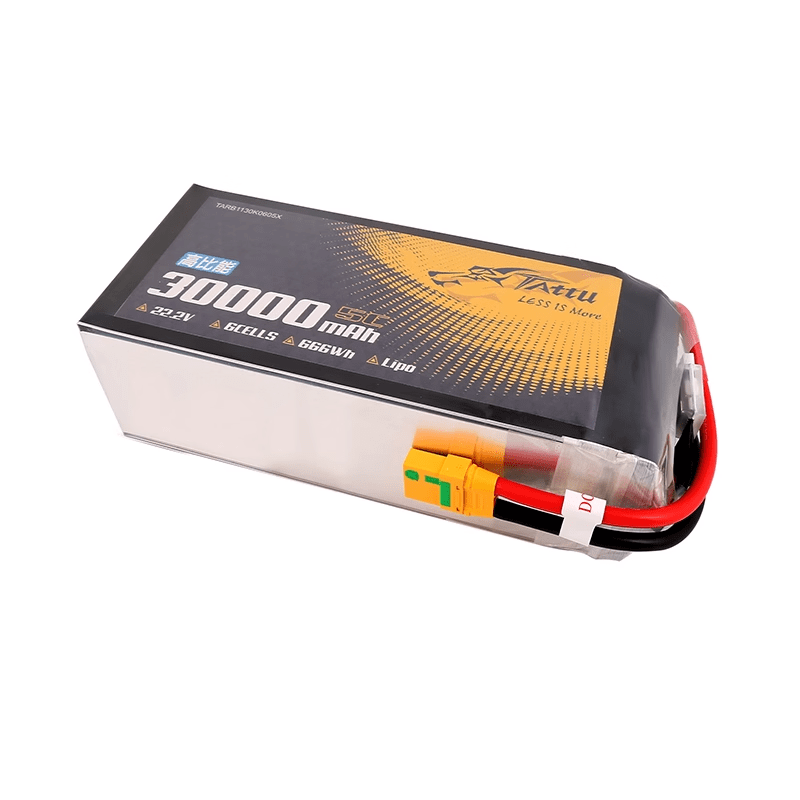

Tattu NCM 811 Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery for UAV Agriculture Drones
$479.00
$516.00
Unit price
/
Unavailable
Tattu NCM 811 Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery for UAV Agriculture Drones - XT90-S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Tattu NCM 811 Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery for UAV ...
$479.00
$516.00
Unit price
/
Unavailable
Tattu Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery for UAV Agriculture Drones
Features:
1. Combination method: 6S1P (six strings and one parallel)
2. Nominal capacity: 30000MAH@0.5C (discharge)
3. Minimum capacity: 28800MAH@0.5C (discharge)
4. Nominal voltage: 22.2V (CELL 3.7V)
5. Battery shipping voltage: 22.5-23.1V (CELL 3.75-3.85V)
6. Internal resistance: 7.76±1.5MΩ
7. Size: 66.5x92.5x209MM
8. Battery weight 2480±100G
9. Standard charging: 6.0A CC (constant current) charging to 25.2V,
10. Fast charging: continuous current: 15A, continuous voltage: 25.2V cut-off current: 0.02C;
11. Charging time standard charging: 7.5 Hours; fast charging: 3.0 hours
12. Maximum continuous discharge current: 6000MA (0.2C) 15000MA (0.5C) 60000MA (2C)
13. Maximum instantaneous discharge current: instantaneous current: 100A, duration: ≤3S;
14-rate discharge performance ≥ 27.0MIN Standard charge/stand still for 5 minutes and discharge to 17.1V with 60A;
Package Includes:
1 x Tattu Semi-Solid 30000mah 6S 22.2V 5C Lipo Battery
